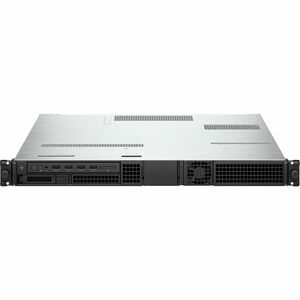

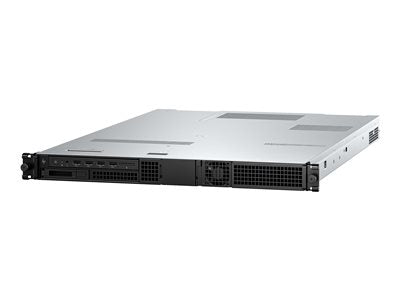

HP Z4 Rack G5 Workstation 1U Xeon W3-2423 16GB 512GB Quadro T400

VENDOR: HP Mfg Part#: 8Z235UT#ABA UPC#: 197498548807
1 2
Photo is for illustration purposes only. Actual product may be different.
$5,030.00
$5,030.00
Sale Sold out
MSRP: $5,115.00
Shipping calculated at checkout.
  • Intel Xeon W3-2423 processor with 6 cores and up to 4.2 GHz turbo performance
  • 16GB DDR5-4800 MHz memory, expandable via 4 DIMM slots
  • 512GB SSD for fast data access and OS booting
  • NVIDIA Quadro T400 GPU with 4GB GDDR6 for professional graphics
  • Comprehensive security features including TPM 2.0, HP Sure Start, and BIOSphere
  • Expansion options include PCIe 5.0 and M.2 PCIe 4.0 slots

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high compute power in a dense 1U rack form factor, ideal for constrained environments
  • Integrated NVIDIA Quadro GPU and robust PCIe expansion make it future-proof for various workloads
  • Backed by a 3-year warranty and bundled with essential peripherals for quick deployment

Product Overview

Designed for enterprise-grade performance in a space-efficient 1U form factor, the HP Z4 Rack G5 Workstation combines power and flexibility to support compute-intensive workflows. It is equipped with an Intel Xeon W3-2423 processor featuring six cores and a 4.2 GHz max turbo frequency, providing solid processing throughput for rendering, simulation, and content creation tasks. Memory performance is enhanced by 16GB of DDR5 4800 MHz RAM, expandable across four DIMM slots. The 512GB SSD delivers responsive data access and fast system boot-ups, with no additional mechanical drives onboard, optimizing power and reliability.

Professional graphics come courtesy of the NVIDIA Quadro T400 with 4GB of GDDR6 memory, suitable for CAD, 3D, and visual design workloads. Expansion is supported by an impressive array of slots, including PCIe 5.0 x16 and M.2 PCIe 4.0 x4 options, allowing users to tailor their configuration for future needs. The system is secured by advanced HP tools like BIOSphere, Sure Start, Sure Click, and TPM 2.0, and it arrives ready for deployment with Windows 11 Pro. A complete set of accessories, including a wired keyboard and mouse, is included, along with a 3-year warranty, delivering assured performance and long-term serviceability.

For organizations needing rack-optimized performance with advanced security and expandability, the Z4 Rack G5 provides a cost-effective, highly reliable computing solution.

Specifications

Product Overview
Product Type Workstation
Model HP Z4 Rack G5
Form Factor 1U Rack
Processor Type Intel Xeon W3-2423
Number of Cores 6
Base Clock Speed 2.1 GHz
Max Turbo Frequency 4.2 GHz
Processor Socket FCLGA4677
Chipset Intel W790
Installed RAM 16 GB DDR5
RAM Speed 4800 MHz
Memory Slots 4 DIMM slots
SSD Installed 1 x 512 GB NVMe SSD
Optical Drive None
Graphics Card NVIDIA Quadro T400
Video Memory 4 GB GDDR6
Keyboard Type HP USB 320K Keyboard
Mouse Type HP Wired 320M Mouse
Operating System Windows 11 Pro
Weight 21.6 lbs.
Power Supply 500W, 90% efficient

Physical & Environmental
Width 1.69 in
Height 25.8 in
Depth 17.25 in
Operating Temperature Range 10°C to 35°C (50°F to 95°F)
Non-Operating Temperature -30°C to 60°C (-22°F to 140°F)
Relative Humidity (Operating) 10% to 90% (non-condensing)
Relative Humidity (Non-operating) 5% to 95% (non-condensing)

Cloud Management & Licensing
Management Software HP Client Management Script Library, HP Image Assistant
License OS Included Windows 11 Pro 64-bit
Warranty 3-year parts, labor and onsite limited warranty, 3/3/3

Interfaces
USB Ports 2 x USB Type-A (5Gbps)
Network Ports 1 x RJ-45 (1GbE)
Expansion Bays 2 x external 2.5" (M.2 capable)
PCIe Slots 2 x M.2 PCIe 4.0 x4; 1 x PCIe 5.0 x16; 1 x PCIe 5.0 x8; 1 x PCIe 5.0 x16 (x8 or x16 electrical)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Energy Star Certified Yes
Certifications FCC, CE, UL, RoHS

Advanced Security Features
Trusted Platform Module (TPM) TPM 2.0 Certified
Drive Encryption Self-Encrypting Drive (SED) support
Firmware Protection HP Sure Start
Endpoint Security HP Sure Click, HP Sure Sense
BIOS Management HP BIOSphere
System Recovery HP Sure Recover
Secure Erase HP Secure Erase
Additional Protections HP Sure Admin, HP Sure Run, HP Platform Certificate, Kensington Lock Slot, Secure Authentication
