HP Z6 G5 Tower Workstation Xeon W5-3423 16GB 512GB SSD T1000

VENDOR: HP Mfg Part#: 81N36UT#ABA UPC#: 197497248838
1 3

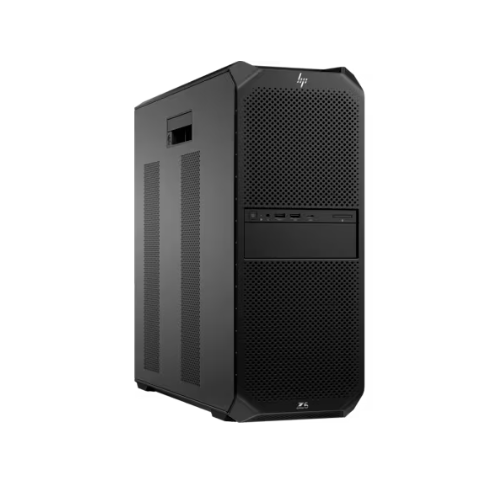

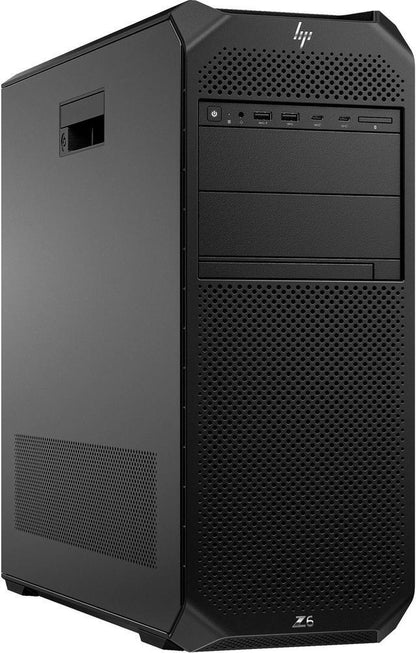

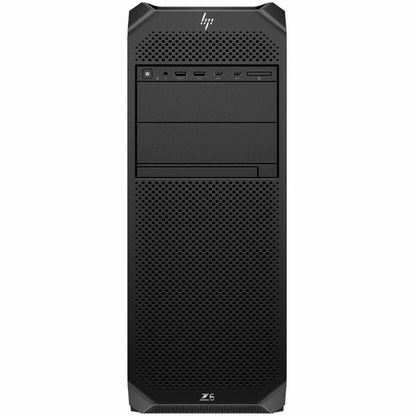

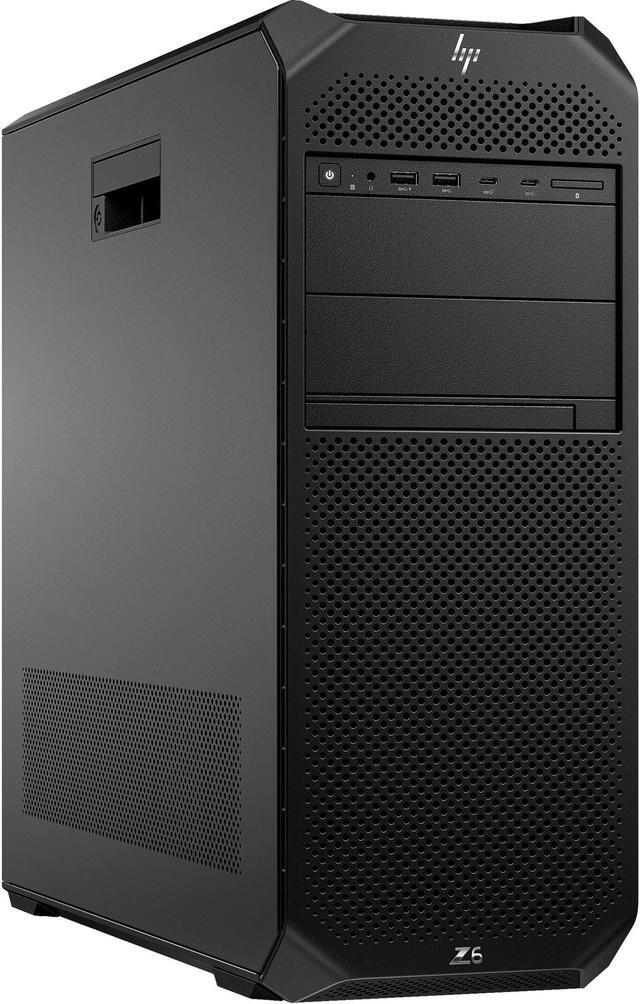

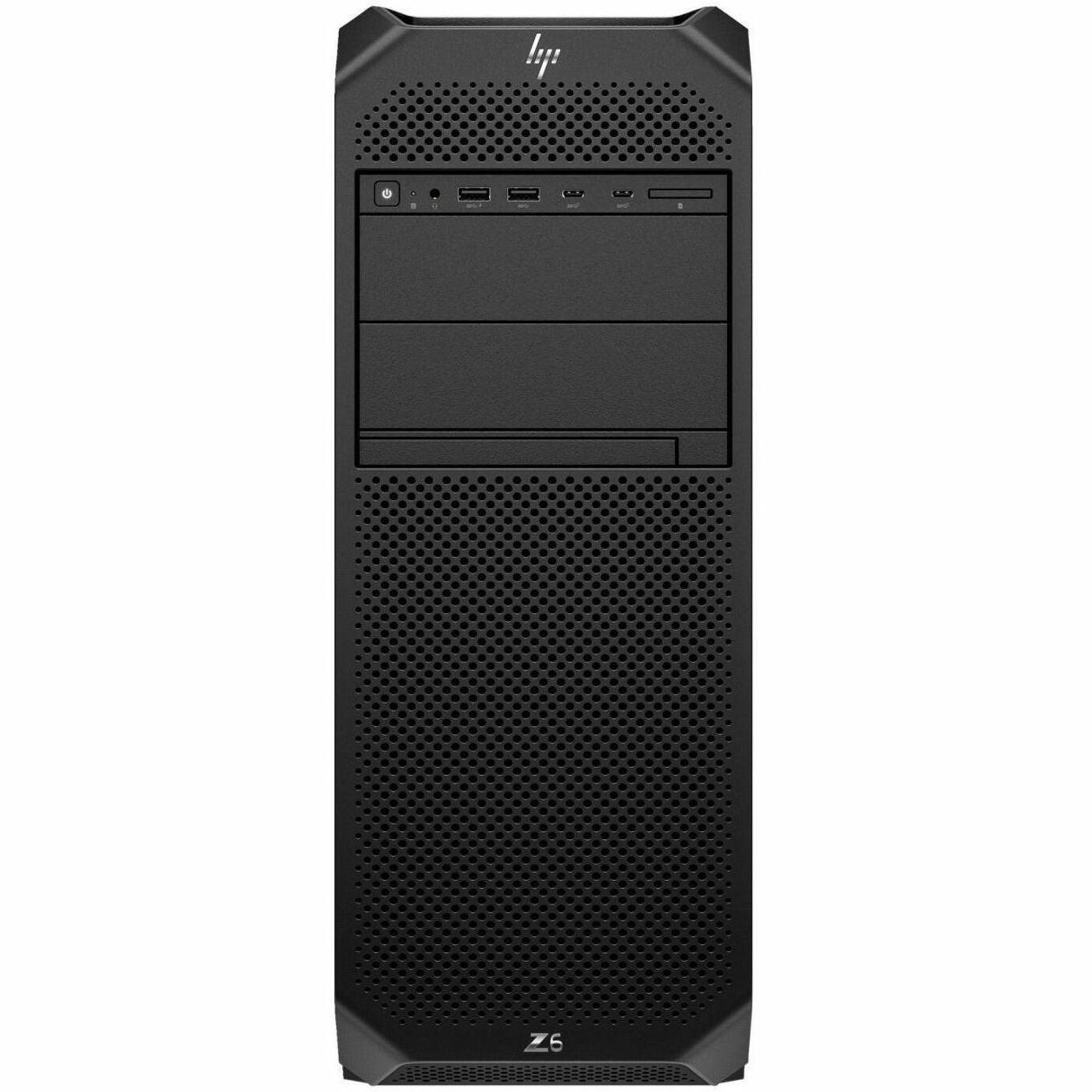

Photo is for illustration purposes only. Actual product may be different.
$5,790.00
$5,790.00
Sale Sold out
MSRP: $5,888.00
Shipping calculated at checkout.
  • Intel Xeon W5-3423 12-core processor with up to 4.2 GHz turbo speed
  • 16GB DDR5 ECC RAM at 4800 MHz with support for up to 512GB
  • 512GB PCIe NVMe M.2 SSD for ultra-fast storage
  • NVIDIA Quadro T1000 with 4GB GDDR6 memory for professional graphics
  • Multiple I/O ports including USB-C 20Gbps and USB-A 5Gbps
  • Comprehensive security suite including TPM 2.0 and HP Sure Start

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for professionals needing reliable multitasking with 12-core Xeon performance and ECC memory
  • TAA-compliant and secured by HP Sure Suite, perfect for government and enterprise procurement
  • Highly expandable with RAID support, multiple PCIe slots, and four M.2 SSD bays for future scalability

Product Overview

The HP Z6 G5 Tower Workstation is engineered for compute-intensive tasks across industries like design, engineering, and content creation. It is powered by an Intel Xeon W5-3423 processor featuring 12 cores and speeds up to 4.2 GHz. Combined with 16GB DDR5 ECC RAM and a 512GB PCIe NVMe SSD, it ensures responsive and reliable performance.

The system includes a NVIDIA Quadro T1000 GPU with 4GB GDDR6 memory, which supports professional rendering and modeling software. With four PCIe M.2 SSD bays, several PCIe slots, and multiple I/O port options, it delivers high scalability.

Security features include TPM 2.0, HP BIOSphere, and self-encrypting drives. A whisper-quiet design and a 3/3/3 warranty provide peace of mind, making the Z6 G5 a robust, TAA-compliant choice for professional environments.

Specifications

Product Overview
Product Type Workstation
Model HP Z6 G5 Tower Workstation
Form Factor Tower
Processor Intel Xeon W5-3423
Processor Cores 12
Base Clock Speed 2.1 GHz
Max Turbo Frequency 4.2 GHz
Processor Socket FCLGA4677
Chipset Intel W790
Installed RAM 16 GB DDR5 ECC
Maximum Supported RAM 512 GB
Memory Speed 4800 MHz
Installed Storage 512 GB PCIe NVMe SSD
RAID Support RAID 0, 1
Graphics Card NVIDIA Quadro T1000
Graphics Memory 4 GB GDDR6
Audio Realtek ALC3205-CG
Power Supply Wattage 1125 W
Power Efficiency 90%
Weight 28.2 lbs.

Wireless Features
LAN Controller Integrated Gigabit Ethernet
Wireless Standard Wi-Fi 6 (802.11ax)
Bluetooth Bluetooth 5.3

Compliance & Origin
Energy Star Certified Yes
TAA Compliant Yes
Country of Origin Mexico

Advanced Security Features
Trusted Platform Module (TPM) TPM 2.0
HP BIOS Security Suite HP BIOSphere, HP Sure Start, HP Sure Recover
Self-Encrypting Drives Yes
Secure Boot & Authentication HP Sure Admin, HP Sure Run, HP Sure Click, HP Sure Sense
Physical Security Kensington lock slot

Interfaces
Front I/O Ports 2x USB-C 20Gbps with Power Delivery, 2x USB-A 5Gbps, 1x headphone/mic combo
Rear I/O Ports 6x USB-A 5Gbps, 1x audio-in/out, 2x RJ-45 Ethernet (1GbE AMT, 1GbE, optional 10GbE)
Expansion Slots 2x PCIe 4.0 x4, 2x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x PCIe 5.0 x16
Expansion Bays 4x M.2 SSD (internal), 3x 3.5" HDD (internal), 1x 3.5" HDD (external), 2x 9.5mm ODD (external)
Included Keyboard HP USB 320K Keyboard
Included Mouse HP Wired 320M Mouse

Physical & Environmental
Width 18.3 in
Depth 6.65 in
Height 17.5 in
Color Black

Cloud Management & Licensing
Operating System Windows 11 Pro for Workstations
Warranty 3-year parts, labor, and onsite limited warranty (3/3/3)
