Products Computers & Laptops HP Z6 G5 Tower Workstation,...

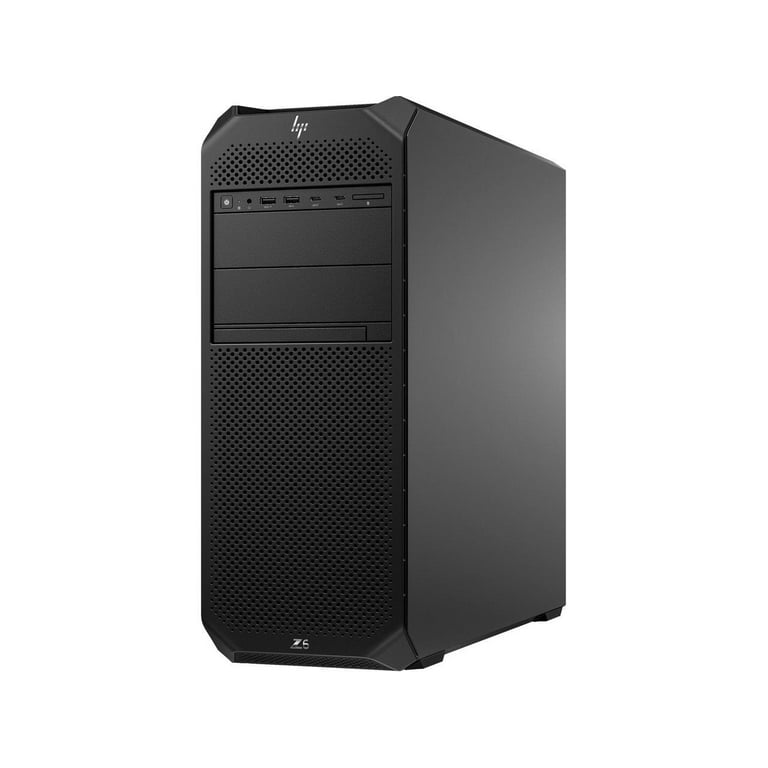

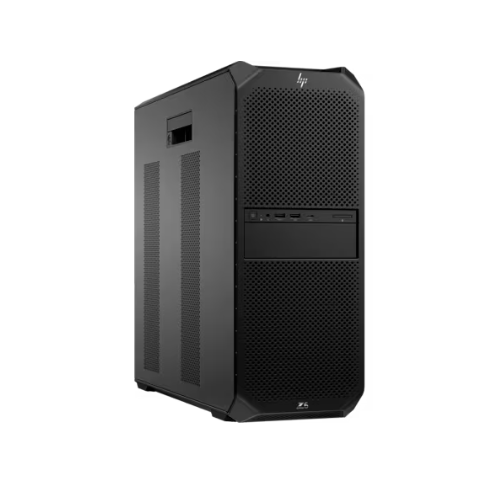

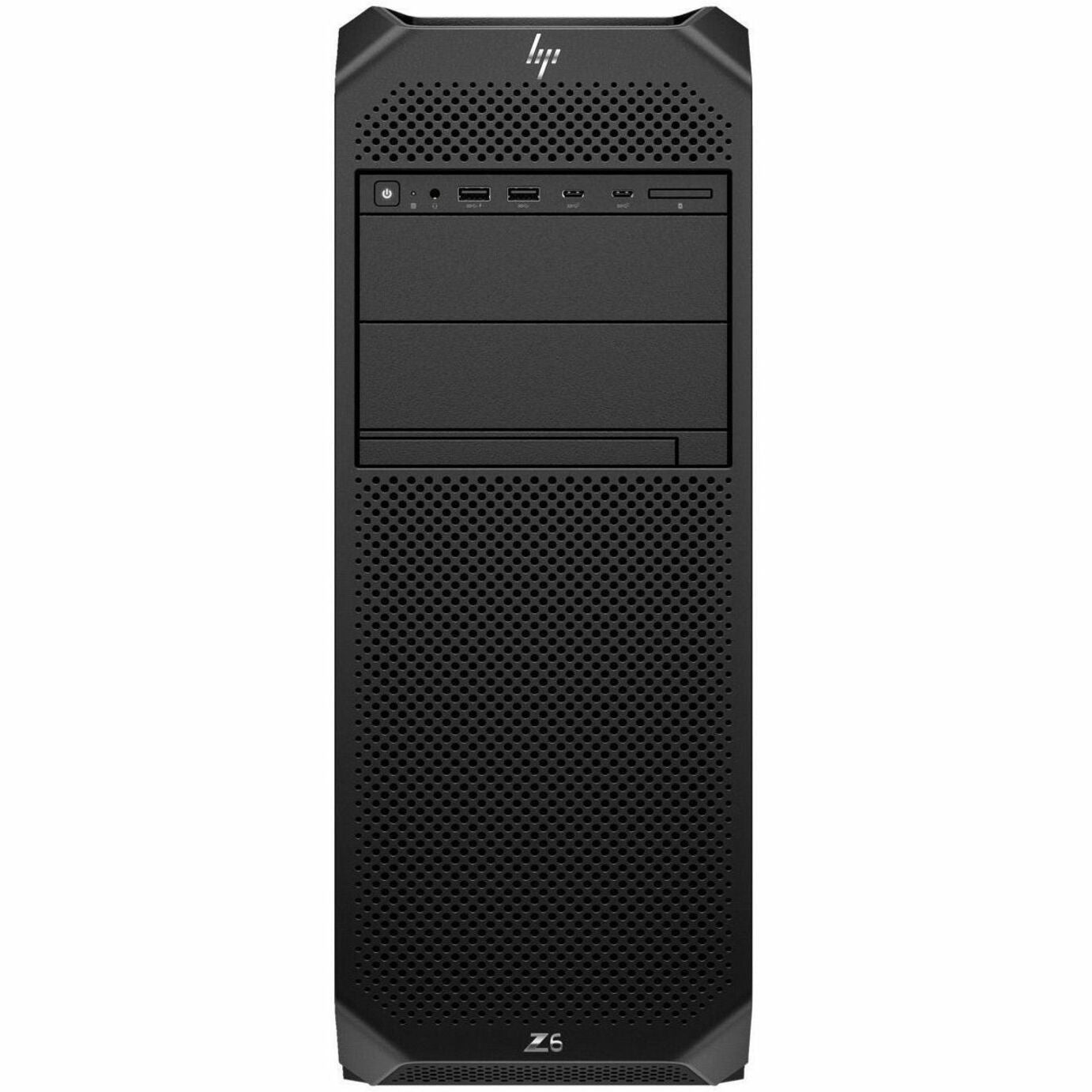

HP Z6 G5 Tower Workstation, Xeon W5-3423, 16GB DDR5, 512GB SSD, Win 11 Pro

VENDOR: HP Mfg Part#: 81N35UT#ABA UPC#: 197497248814
1 3
Photo is for illustration purposes only. Actual product may be different.
$5,112.00
$5,112.00
Sale Sold out
MSRP: $5,198.00
Shipping calculated at checkout.
  • Intel Xeon W5-3423 12-core processor (2.1 GHz base, 4.2 GHz turbo)
  • 16GB ECC DDR5 RAM at 4800 MHz, expandable up to 512GB
  • 512GB PCIe NVMe SSD for high-speed storage
  • Expansion: 2 PCIe 4.0 x4, 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 5.0 x16
  • Robust connectivity: USB Type-C 20Gbps, Wi-Fi 6, Bluetooth 5.3, dual LAN
  • Advanced security: TPM 2.0, HP Sure Start, self-encrypting drives

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-performance Xeon processor and ECC memory support mission-critical applications with stability and speed
  • Future-proof architecture with PCIe Gen5 slots and 1125W PSU enables seamless hardware upgrades
  • Built-in enterprise-grade security features meet compliance needs and protect sensitive data environments

Product Overview

The HP Z6 G5 Tower Workstation is engineered for high-end computing tasks with a focus on performance, security, and expandability. Powered by a 12-core Intel Xeon W5-3423 processor featuring a base clock of 2.1 GHz and max turbo up to 4.2 GHz, the system efficiently handles multithreaded applications and compute-intensive workflows. The workstation includes 16GB of ECC-enabled DDR5 memory running at 4800 MHz, upgradable to 512GB, ensuring stability and responsiveness for complex multitasking scenarios.

Storage is managed by a fast 512GB PCIe NVMe SSD, optimized for quick boot times and responsive application loading. While the configuration lacks dedicated graphics, users benefit from extensive expansion possibilities including multiple PCIe Gen4 and Gen5 slots, support for additional SSDs and HDDs, and RAID 0/1 support. Connectivity is robust with USB Type-C 20Gbps, Bluetooth 5.3, Wi-Fi 6 (802.11ax), and dual RJ-45 LAN interfaces. Security features like TPM 2.0, HP Sure Start, and full volume encryption help protect sensitive data. A 1125W power supply supports future upgrades without compromise.

The Z6 G5 is ideal for professionals in engineering, design, and content creation requiring a reliable, scalable platform. With a whisper-quiet acoustic profile and TAA compliance, it’s also suitable for secure environments and government deployments.

Specifications

Product Overview
System Type Workstation
Model HP Z6 G5 Tower Workstation
Form Factor Tower
Processor Type Intel Xeon W5-3423
Number of Cores 12
Base Clock Speed 2.1 GHz
Max Turbo Frequency 4.2 GHz
Processor Socket FCLGA4677
Chipset Intel W790
Installed Memory 16 GB DDR5 ECC
Memory Speed 4800 MHz
Maximum Supported Memory 512 GB
Memory Slots Used 1 DIMM
Storage Type NVMe SSD
SSD Capacity 512 GB
RAID Support RAID 0, 1
Optical Drive None
Power Supply 1125 W
Operating System Windows 11 Pro for Workstations 64-bit
Weight 28.2 lbs.
Color Black

Wireless Features
Wi-Fi Standard Wi-Fi 6 (802.11ax)
Bluetooth Version Bluetooth 5.3

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Energy Star Certified No

Advanced Security Features
Encryption Full volume encryption, Self-Encrypted Drives
TPM TPM 2.0 Certified
Security Technologies HP Sure Start, HP Sure Recover, HP Sure Click, HP Sure Sense, HP Sure Run
Chassis Lock Support Kensington Lock Slot
Secure Authentication Yes

Interfaces
Front I/O Ports 2x USB Type-C 20Gbps, 2x USB Type-A 5Gbps, 1x Headphone/Mic Combo
Rear I/O Ports 6x USB Type-A 5Gbps, 1x Audio In/Out, 2x RJ-45 (1GbE/AMT and optional 10GbE)
PCIe Slots 2 PCIe 4.0 x4, 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 5.0 x16
Expansion Bays (Internal) 4x M.2 PCIe, 3x 3.5" HDD
Expansion Bays (External) 1x 3.5" HDD, 2x 9.5mm ODD
Audio Realtek ALC3205-CG

Physical & Environmental
Width 18.3 in
Depth 6.65 in
Height 17.5 in
Acoustic Profile Whisper-quiet acoustics

Cloud Management & Licensing
Management Tools HP BIOSphere, HP Sure Admin
Warranty 1-1-1 Years Limited Warranty
