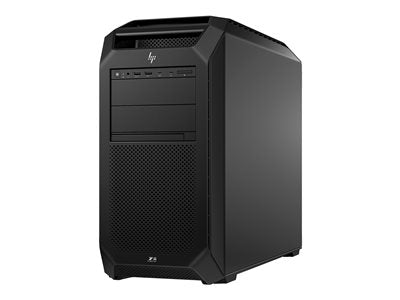

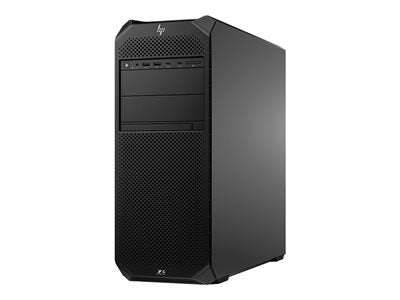

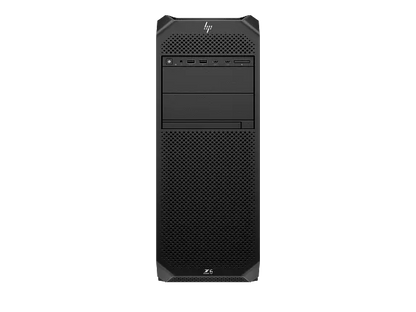

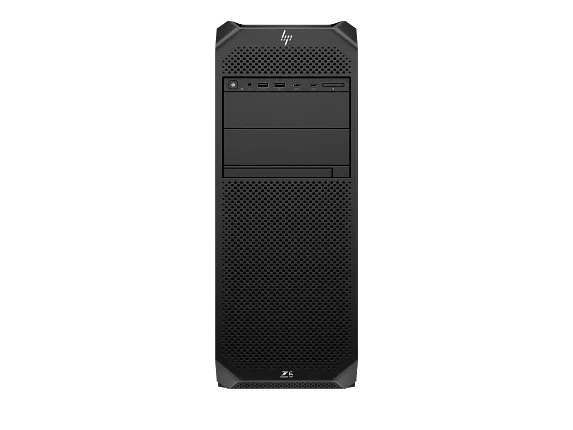

HP Z6 G5 Tower Xeon W5-3425 16GB ECC 512GB SSD Win11Pro Workstation

VENDOR: HP Mfg Part#: 81N30UT#ABA UPC#: 197497248753
1 3
Photo is for illustration purposes only. Actual product may be different.
$5,762.00
$5,762.00
Sale Sold out
MSRP: $5,859.00
Shipping calculated at checkout.
  • Intel Xeon W5-3425 12-core processor with Turbo Boost up to 4.6 GHz
  • 16GB DDR5 ECC RAM, expandable up to 512GB
  • 512GB PCIe NVMe SSD storage
  • Integrated WiFi 6 (802.11ax) and Bluetooth 5.3
  • Multiple high-speed USB-C and USB-A connectors with 20Gbps and 5Gbps support
  • Advanced security suite featuring TPM 2.0, HP Sure Start, and self-encrypting drives

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for demanding workloads like CAD, simulation, and content creation with Intel Xeon W5-3425 and ECC RAM
  • Easily scalable with numerous PCIe and M.2 expansion slots and up to 512GB memory support
  • Includes enterprise-class Windows 11 Pro for Workstations and robust security tools for professional environments

Product Overview

The HP Z6 G5 Tower Workstation is a robust computing solution engineered for resource-intensive enterprise applications, including data processing, 3D design, and complex simulations. It is equipped with an Intel Xeon W5-3425 processor offering 12 cores, a base clock speed of 3.2 GHz, and Turbo Boost up to 4.6 GHz, delivering fast, consistent performance for parallel workloads. Supporting this capability is 16GB of DDR5 ECC memory, scalable up to 512GB, ensuring system stability under demanding workloads.

Storage is driven by a high-speed 512GB PCIe NVMe SSD, designed to reduce latency and improve boot and load times for software and large files. The workstation features a wealth of connectivity options including dual USB-C (20Gbps), multiple USB-A ports, dual RJ-45 Ethernet, and integrated WiFi 6 and Bluetooth 5.3. Extensive expansion slots (PCIe 3.0, 4.0, and 5.0) and M.2 bays support highly customizable configurations for future growth.

Enterprise-grade security features, such as TPM 2.0, HP Sure Start, and self-encrypting drives, protect sensitive assets. With a 1125W power supply and a tower form factor, the Z6 G5 is ideal for professionals needing both power and reliability in a desktop environment. The inclusion of Microsoft Windows 11 Pro for Workstations further ensures compatibility with industry-standard applications. Its whisper-quiet acoustics add convenience for office deployments without compromising performance.

Specifications

Product Overview
System Type Workstation
Model HP Z6 G5 Tower Workstation
Form Factor Tower
Processor Type Intel Xeon W5-3425
Processor Cores 12-Core
Processor Base Clock 3.2 GHz
Processor Turbo Clock 4.6 GHz
Cache 30 MB L3
Chipset Intel W790
Installed Memory 16 GB DDR5 ECC
Max Supported Memory 512 GB
Memory Speed 4800 MHz
RAM Form Factor DIMM
Memory Slots Used 1
Storage Type PCIe NVMe SSD
Installed SSD Capacity 512 GB
Hard Drive (HDD) Not Included
Optical Drive Not Included
RAID Support RAID 0, 1
Power Supply 1125W
Efficiency Rating 90%
Operating System Windows 11 Pro for Workstations
Keyboard HP USB 320K Keyboard
Mouse HP Wired 320M Mouse

Wireless Features
Wi-Fi Standard Wi-Fi 6 (802.11ax)
Bluetooth Version Bluetooth 5.3

Compliance & Origin
Energy Star Compliant No
TAA Compliant Yes
Country of Origin Mexico

Advanced Security Features
Trusted Platform Module TPM 2.0 Certified
Self-Encrypting Drives (SED) Yes
BIOS Security HP Sure Start, HP BIOSphere
OS-Level Security Tools HP Sure Click, HP Sure Recover, HP Sure Run, HP Sure Sense
Secure Authentication Yes
HP Security Management HP Platform Certificate, HP Secure Erase
Physical Security Kensington Lock Slot

Interfaces
Front USB Ports 2 x USB-C 20Gbps, 2 x USB-A 5Gbps
Rear USB Ports 6 x USB-A 5Gbps
Audio Ports 1 x Headphone/Microphone combo (front), 1 x Audio In/Out (rear)
Network Ports 2 x RJ-45 (1 GbE AMT, 1 GbE, optional 10 GbE)
PCIe Slots 2 x PCIe 4.0 x4, 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 5.0 x16
M.2 Slots 4 x PCIe M.2 SSD Slots

Physical & Environmental
Width 18.3 in
Depth 6.65 in
Height 17.5 in
Weight 28.2 lbs
Enclosure Color Black

Cloud Management & Licensing
Management Interface HP BIOSphere, HP Sure Admin
Bundled OS License Windows 11 Pro for Workstations
Warranty 1-year parts, 1-year labor, 1-year onsite (1-1-1) limited warranty
