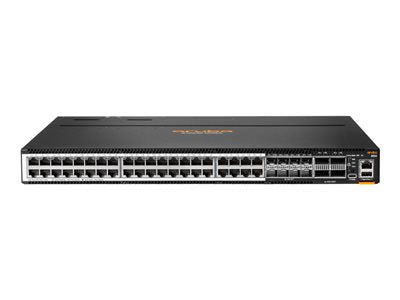

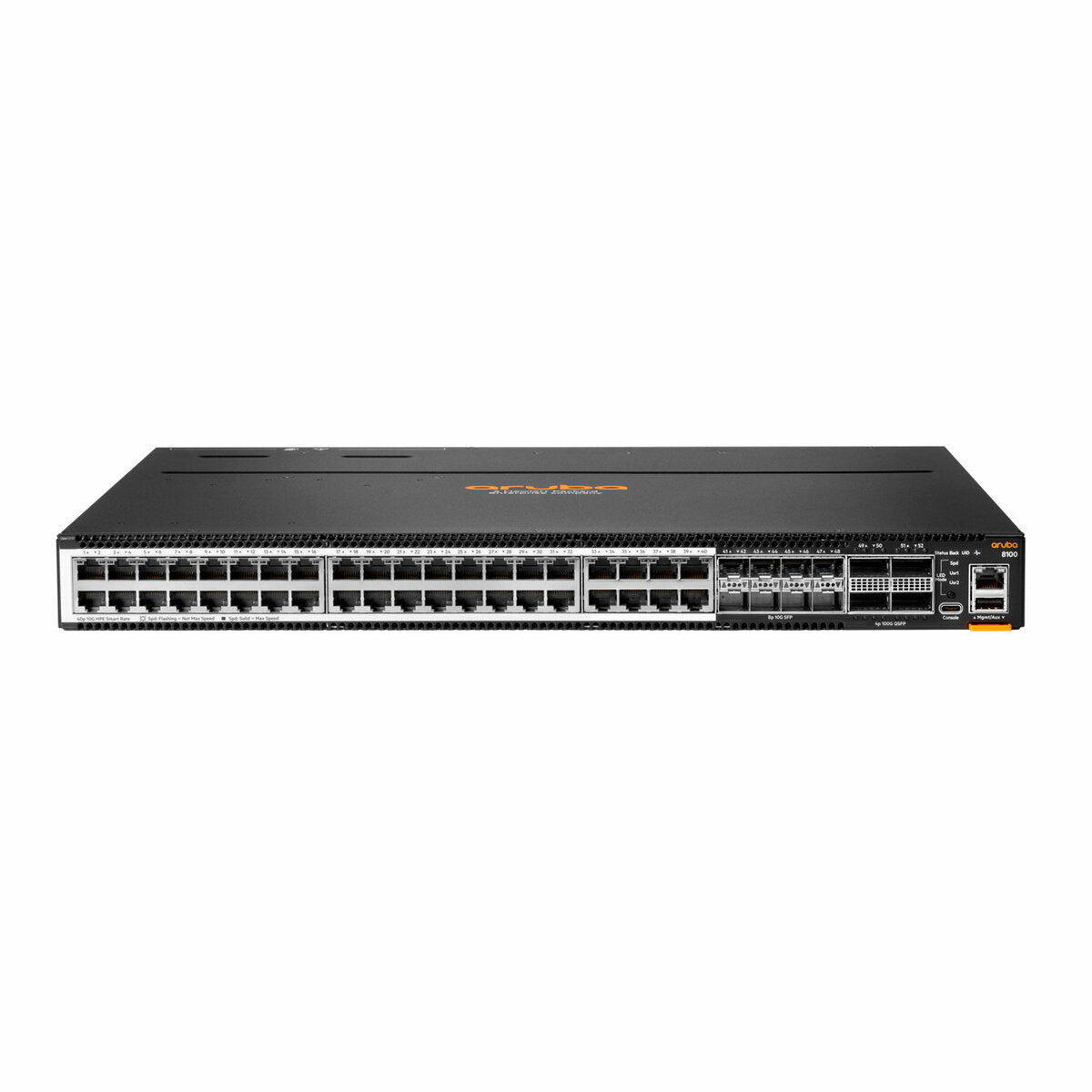

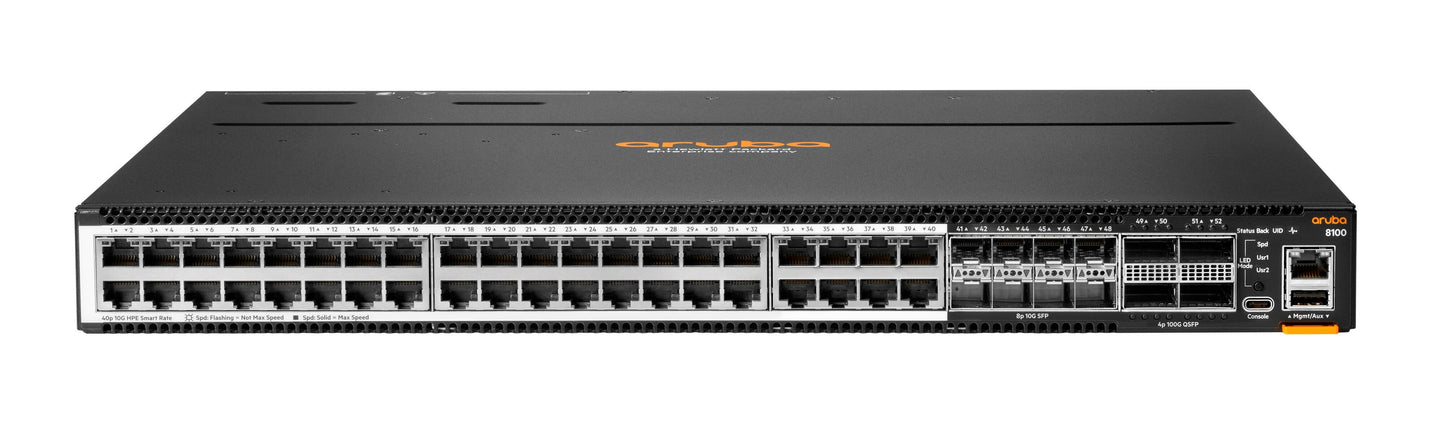

HPE ANW 8100-40XT8XF4C Switch, 52-Port, SFP+/QSFP28, ARM Cortex A72

VENDOR: HP Mfg Part#: R9W97A
1 5
Photo is for illustration purposes only. Actual product may be different.
$35,596.00
$35,596.00
Sale Sold out
MSRP: $44,962.00
Shipping calculated at checkout.
  • 52 total ports including SFP+ and QSFP28 interfaces
  • Powered by ARM Cortex A72 processor for efficient performance
  • TAA compliant for use in regulated or federal environments
  • Manufactured in Singapore
  • Part of the HPE Aruba Networking CX 8100 series

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high-speed, scalable switching options with 52 ports including SFP+ and QSFP28
  • Equipped with an ARM Cortex A72 processor for processing-intensive networking tasks
  • TAA compliance makes it suitable for government or institutional procurement requirements

Product Overview

The HPE Aruba Networking CX 8100-40XT8XF4C Switch delivers 52 ports of high-performance connectivity, including SFP+ and QSFP28 for scalability in enterprise networks. Powered by an ARM Cortex A72 processor, it ensures fast and efficient layer 2/3 switching. Its TAA compliance and Singapore origin make it suitable for government and enterprise deployments. As part of the Aruba CX family, it integrates easily with existing infrastructure, simplifying operations and enhancing reliability.

Specifications

Product Overview
Product Type Managed Ethernet Switch
Product Family Aruba CX 8100 Series
Model Number ANW 8100-40XT8XF4C
Part Number R9W97A
Processor ARM Cortex-A72
Switching Capacity 880 Gbps
Forwarding Rate 654 Mpps
Form Factor Rack-mountable
Rack Units 1U
Power Supply Dual hot-swappable power supplies (AC)
Power Redundancy Yes
Power Consumption (Maximum) 166W
Hot-swappable Fans Yes
Layer Support Layer 2 and Layer 3

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CE, FCC Class A, ICES, VCCI, EN55032/EN55024, RoHS
Environment Standards WEEE, REACH

Advanced Security Features
Access Control 802.1X, MAC authentication, local MAC authentication
Encryption SSH, HTTPS, SNMPv3
Traffic Filtering ACLs (Layer 2 to Layer 4)
Secure Management RADIUS, TACACS+
DHCP Protection DHCP snooping
DoS Protection Yes
Dynamic ARP Inspection Yes

Interfaces
Total Ports 52
10GBASE-T Ports 40 x 10GBASE-T (RJ45)
SFP+ Ports 8 x SFP+
QSFP28 Ports 4 x QSFP28
Console Port 1 x RJ-45 console port
Management Port 1 x 10/100/1000BASE-T out-of-band management port
USB Port 1 x USB 2.0 Type-A
Data Transfer Rate 10/100/1000 Mbps, 10/25/40/50/100 Gbps (QSFP28)
Stacking Yes (using QSFP28 ports)

Physical & Environmental
Dimensions (W x D x H) 17.42 x 21.25 x 1.73 in (442.5 x 540 x 44 mm)
Weight 20.64 lbs (9.36 kg)
Operating Temperature 32°F to 113°F (0°C to 45°C)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 53 dB (max)
Cooling Front-to-back airflow
MTBF 847,000 hours (97 years)

Cloud Management & Licensing
Management Platform Aruba Central, Web GUI, REST API, CLI
Included Licensing Aruba Central cloud licensing sold separately
