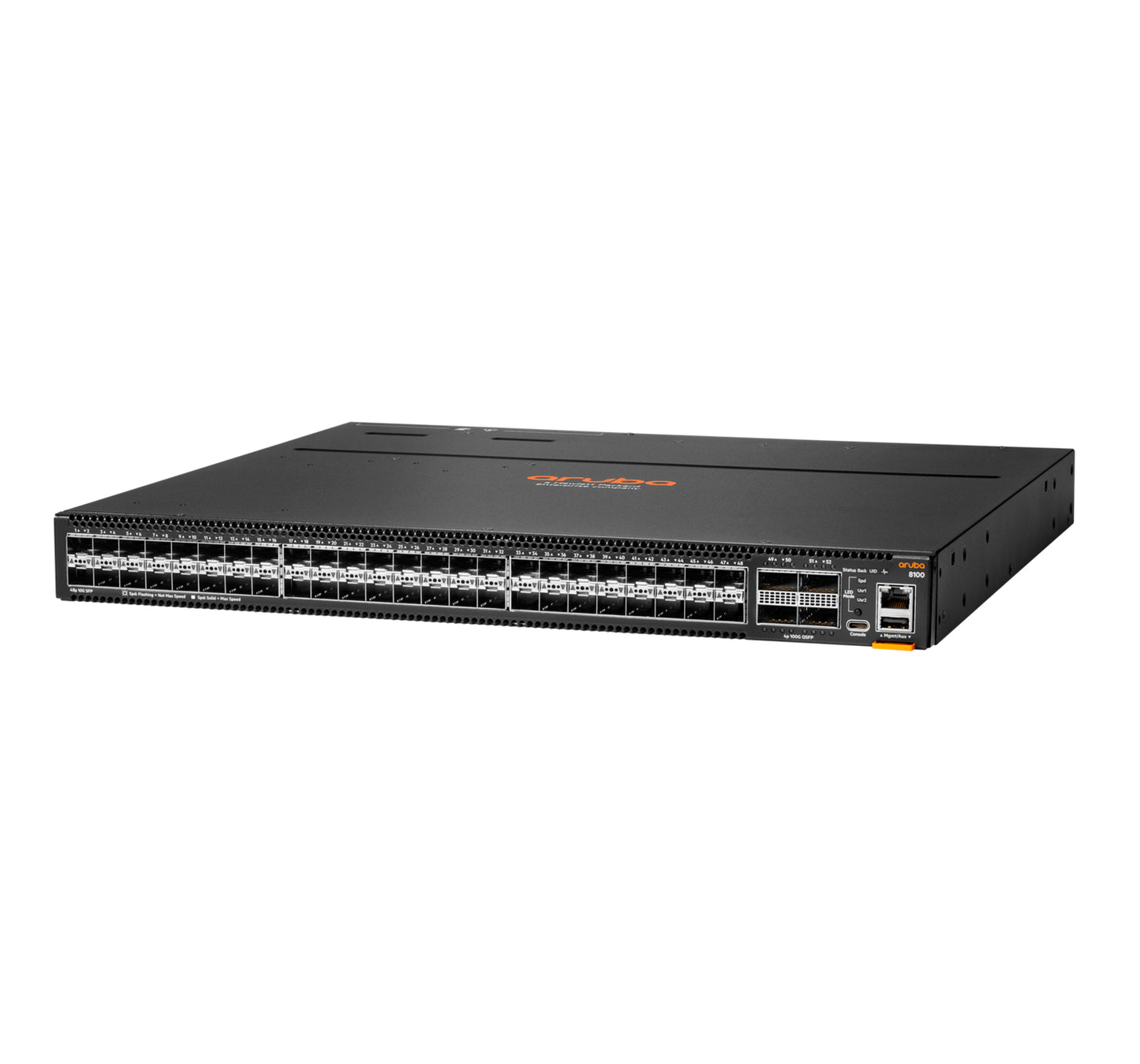

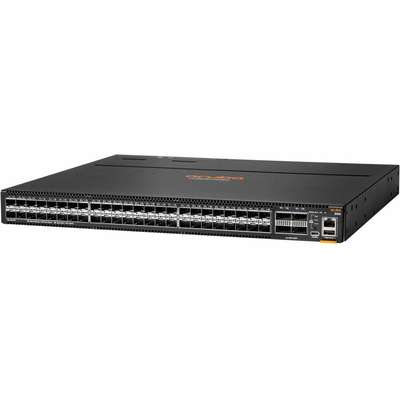

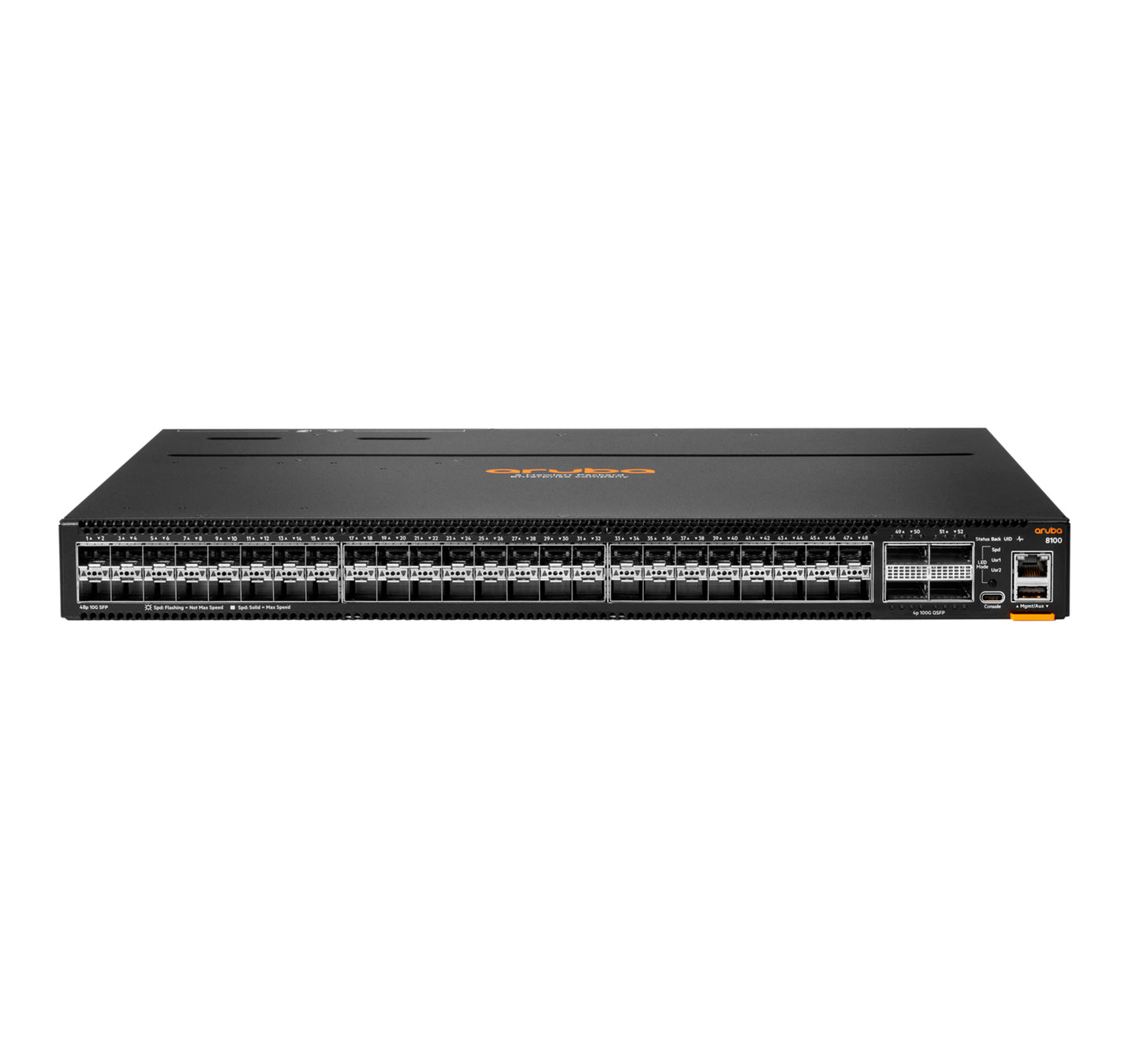

HPE ANW 8100-48XF4C Switch, 52-Port SFP+/QSFP28, Cortex A72

VENDOR: HP Mfg Part#: R9W96A
1 5
Photo is for illustration purposes only. Actual product may be different.
$30,483.00
$30,483.00
Sale Sold out
MSRP: $38,503.00
Shipping calculated at checkout.
  • 52 ports, including SFP+ and QSFP28 for fiber connectivity
  • Powered by ARM Cortex A72 processor for efficient data handling
  • Layer 3 switching for advanced routing capabilities
  • TAA compliant for use in secure and government environments
  • Manufactured in Singapore
  • Supports high-speed 10GbE and 100GbE connections

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-density fiber connectivity with 52 ports, enabling scalable enterprise deployment.
  • TAA compliance and Singapore origin meet strict procurement and security requirements.
  • Advanced ARM-based processing enhances network efficiency and supports virtualized infrastructure.

Product Overview

The HPE Aruba Networking CX 8100-48XF4C Switch offers an advanced Layer 3 platform ideal for enterprise and data center networks. With 52 high-performance ports including SFP+ and QSFP28 interfaces, it supports up to 100GbE connections. Powered by an ARM Cortex A72 processor, it ensures efficient traffic handling and scalability. Engineered in Singapore and TAA compliant, it's suitable for secure and regulated environments. Its functionality makes it a valuable asset for aggregation layers and spine-leaf architectures in large network infrastructures.

Specifications

Product Overview
Product Type Managed Layer 3 Ethernet Switch
Model HPE Aruba Networking CX 8100-48XF4C
Processor ARM Cortex-A72
Form Factor 1U rack-mountable
Switching Capacity 2.8 Tbps
Forwarding Rate 1312 Mpps
Number of Total Ports 52

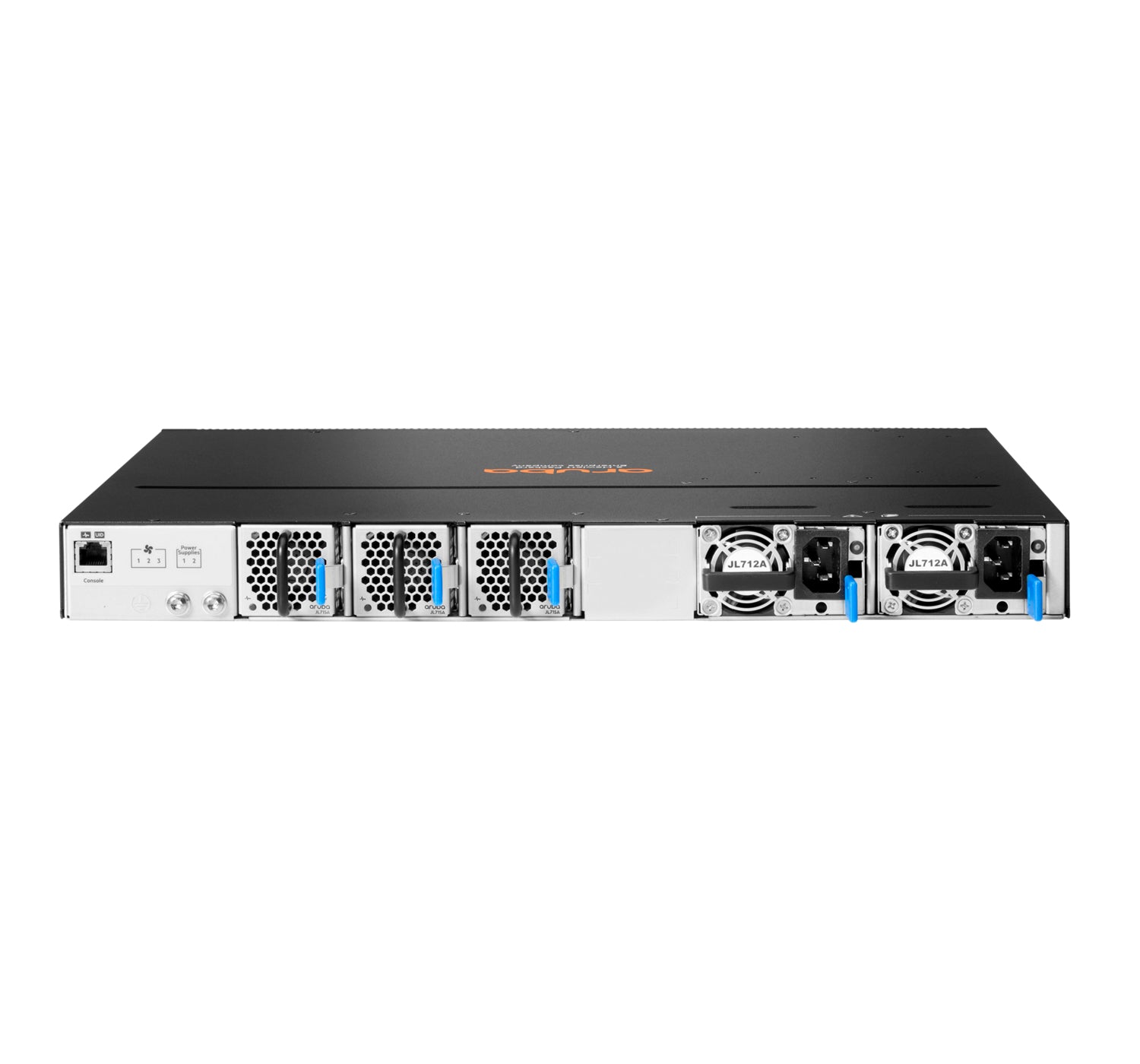

Power Supply Dual hot-swappable power supplies (AC or DC)
Redundant Power Supply Support Yes
Weight 8.8 kg (19.4 lb)

Wireless Features
Wireless Support No

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, FCC Class A, CE, VCCI, ICES

Advanced Security Features
Access Control Lists (ACLs) Yes
MACsec Encryption Yes (128/256-bit support)
DHCP Snooping Yes
Dynamic ARP Protection Yes
IP Source Guard Yes
802.1X Authentication Yes, with RADIUS
Port Security Yes
Traffic Storm Control Yes

Interfaces
10 Gigabit SFP+ Ports 48
QSFP28 Ports (100GbE) 4
Out-of-Band Management Port 1 x 10/100/1000BASE-T (RJ-45)
USB Ports 1 x USB-C (console), 1 x USB Type-A
Console Port 1 x RJ-45 serial console, 1 x USB-C
Throughput 1312 Mpps

Physical & Environmental
Dimensions 4.4 x 44 x 55.8 cm (1.73 x 17.32 x 21.97 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Maximum Operating Altitude 3,000 m (9,843 ft)
Acoustic Noise 63.8 dB (typical), 78.7 dB (max)
Cooling Front-to-back airflow with field-replaceable fans

Cloud Management & Licensing
Management Interface Aruba AOS-CX (CLI, REST API, Web GUI)
Cloud Management Support Yes (Aruba Central)
Licensing Model Subscription-based for Aruba Central
Included Software Features Layer 2/3 switching, VRF, VSX, BGP, OSPF, EVPN/VXLAN
Automation Features Python APIs, Ansible support, NetEdit
