HPE Aruba CX 6200F 48G PoE+ 4SFP 370W TAA Switch

VENDOR: HP Mfg Part#: S0G16A#ABA
1 3

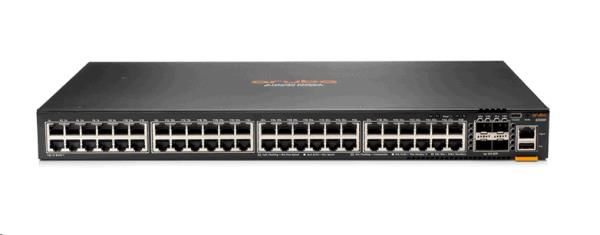

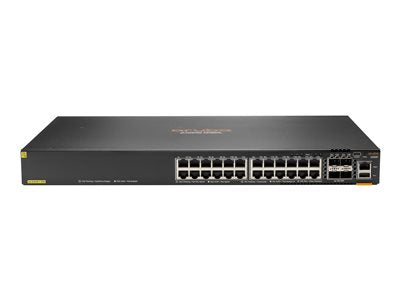

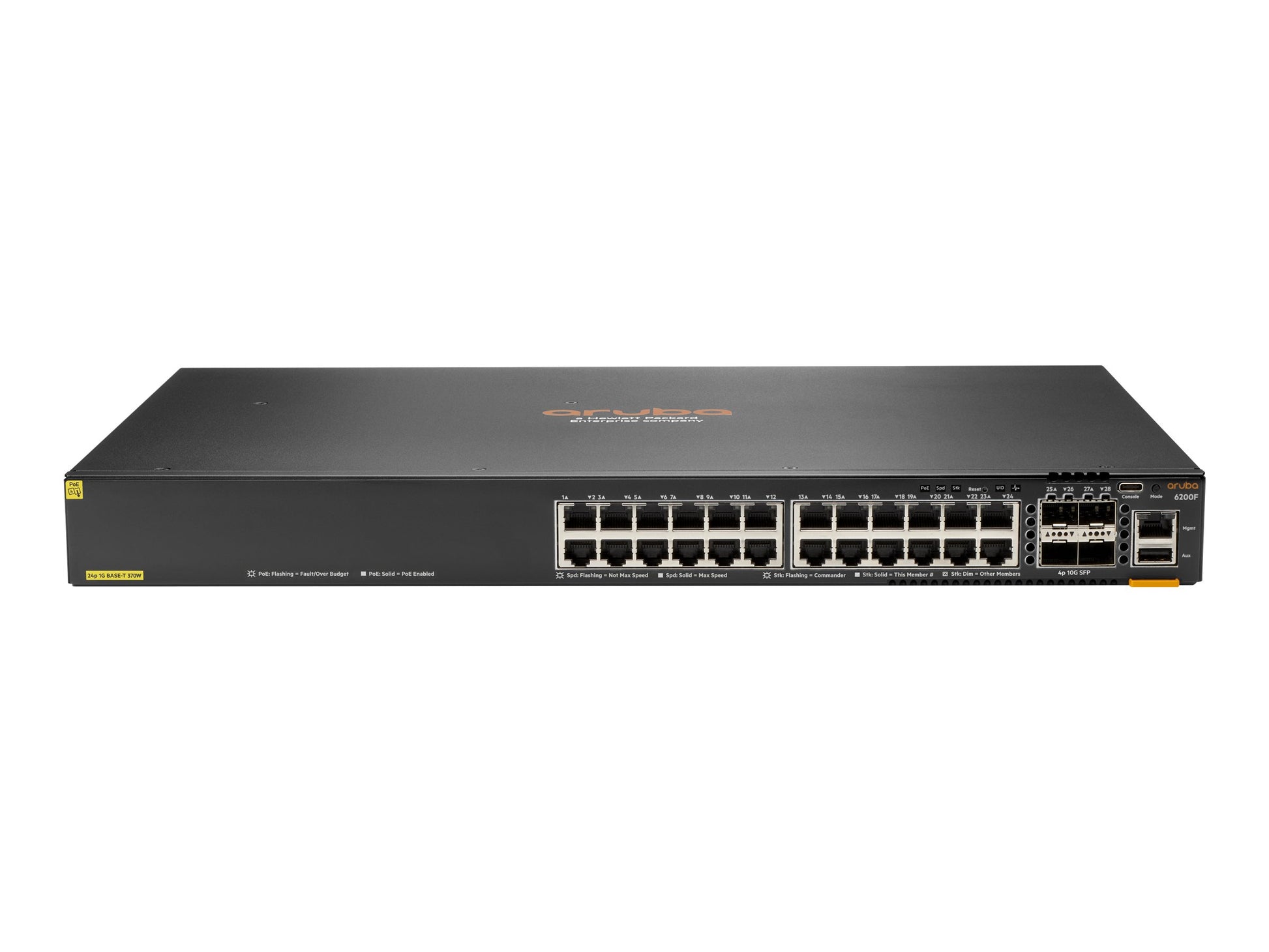

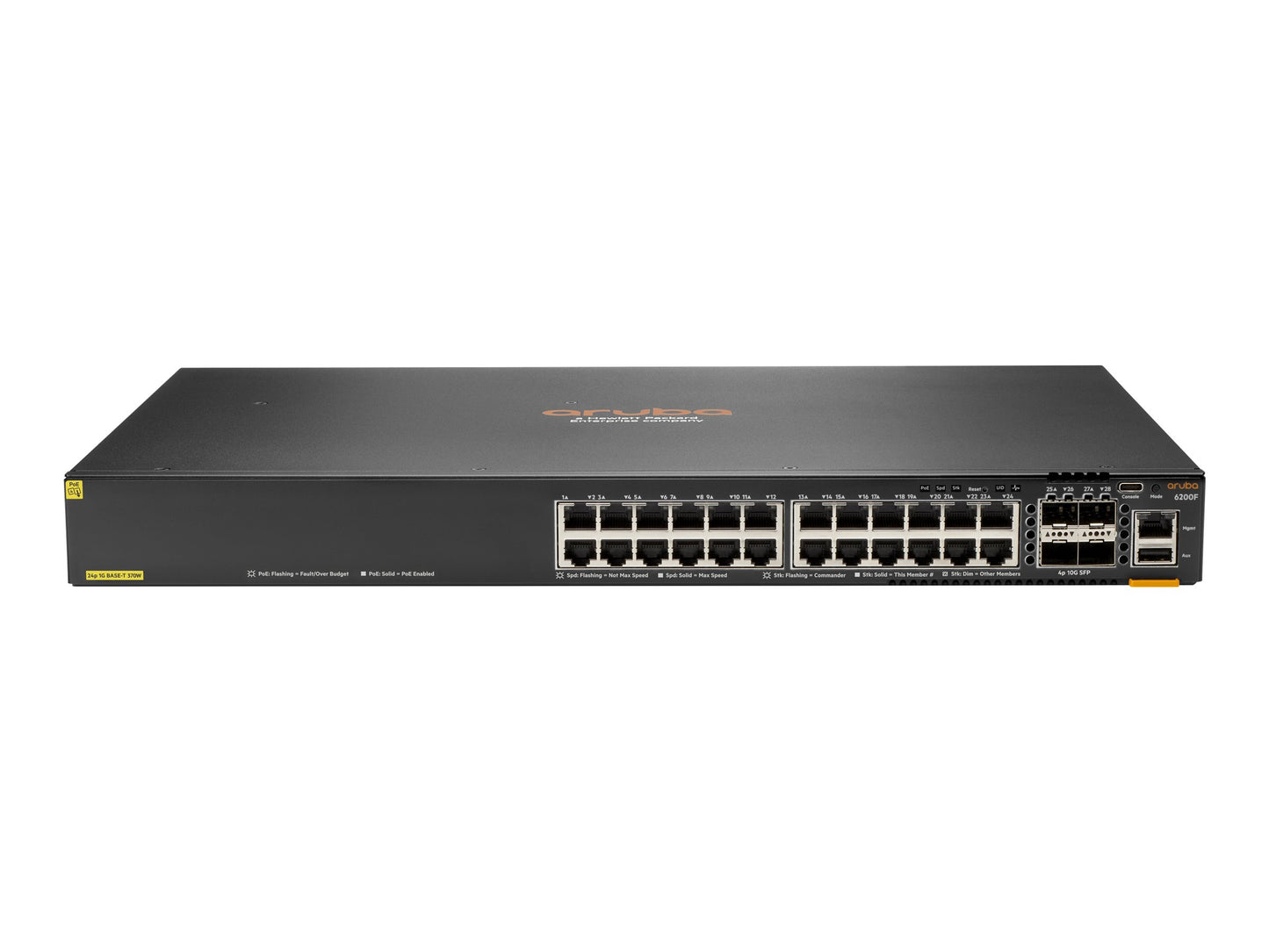

Photo is for illustration purposes only. Actual product may be different.
$9,070.00
$9,070.00
Sale Sold out
MSRP: $11,456.00
Shipping calculated at checkout.
  • 48 x 10/100/1000 PoE+ ports and 4 x 100/1000 SFP uplinks
  • 370W total PoE budget with Class 4 (30W per port) support
  • Layer 3 managed switch with 176 Gbps switching capacity and 130.9 Mpps throughput
  • Supports RIP, OSPFv2/v3, IGMPv2/v3, and MLDv2 routing protocols
  • Stackable up to 8 units with 40 Gbps stacking bandwidth
  • Arm Cortex-A72 1.8 GHz processor with 8 GB DDR4 RAM and 16 GB flash

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables high-density PoE+ deployment with 48 ports and 370W power budget
  • Optimized for scalable Layer 3 networks with 176 Gbps switching and 40 Gbps stack bandwidth
  • Designed for secure, manageable infrastructure with SSH, RADIUS, and TACACS+ authentication

Product Overview

The HPE Aruba CX 6200F 48G Class 4 PoE 4SFP 370W Switch is engineered to deliver enterprise-grade connectivity and flexibility for modern network environments. With 48 Gigabit Ethernet PoE+ ports and four 100/1000 SFP uplinks, it enables high-density deployments while supporting power delivery with a robust 370W PoE budget. The device provides Layer 3 managed switching with a 176 Gbps switching fabric and 130.9 Mpps throughput, making it ideal for handling high traffic volumes across edge and access layers.

A rich set of routing protocols—including OSPFv2/v3, RIP-2, IGMPv2/v3, and MLDv2—ensures seamless traffic management, while features like VRRP, LLDP, DWRR, and multilayer ACLs add security and control. The switch supports jumbo frames up to 9220 bytes and up to 32K MAC addresses. Integrated with an ARM Cortex-A72 1.8 GHz processor, 8 GB DDR4 RAM, and 16 GB flash memory, the solution runs on AOS-CX for simplified and programmable network operations. Designed to meet TAA compliance and backed by a limited lifetime warranty, it offers long-term value for government and enterprise customers.

The front and side-to-back airflow design suits rack environments, and stacking up to 8 units with 40 Gbps stacking bandwidth enhances scalability. Advanced management features over SSH, RADIUS, CLI, and RMON provide secure and centralized control, making this switch a reliable choice for growing infrastructures.

Specifications

Product Overview
Product Type Managed Layer 3 Stackable Switch
Model HPE Aruba CX 6200F 48G PoE+ 4SFP 370W TAA Switch
Part Number S0G16A#ABA
Processor 1 x ARM Cortex-A72 1.8 GHz
RAM 8 GB DDR4 SDRAM
Flash Memory 16 GB
Power Device Internal power supply
Voltage Required AC 100-127/200-240 V (50/60 Hz)
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Max Units in a Stack 8
Switching Capacity 176 Gbps
Throughput 130.9 Mpps
Latency (1 Gbps) 2.28 µs
Latency (10 Gbps) 1.46 µs
Stacking Bandwidth 40 Gbps

Advanced Security Features
Authentication Methods Secure Shell (SSH), RADIUS, TACACS+, SSH v2
Encryption Algorithms SSL, FIPS 140-2
Access Control Lists (ACLs) IPv4/IPv6/MAC - ingress and egress
Security Features TPM, UDLD, ACLs, BPDU filtering

Physical & Environmental
Enclosure Type 1U Rack-mountable with front and side-to-back airflow
Dimensions (W x D x H) 17.4 in x 12 in x 1.7 in
Weight 10.74 lbs
Operating Temperature Range 32 °F to 113 °F
Storage Temperature Range -40 °F to 158 °F
Operating Humidity 5% to 95% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)

Networking & Performance
MAC Address Table Size 32,768 entries
Jumbo Frame Support Up to 9220 bytes
Packet Buffer Size 8 MB
IPv4 Host Table Capacity 8192
IPv6 Host Table Capacity 8192
Unicast Routing Entries (IPv4) 2048
Unicast Routing Entries (IPv6) 1024
IGMP/MLD Group Capacity 1024 groups each
Supported Protocols RIP-2, IGMPv2/v3, OSPFv2/v3, MLDv2, IPv4/IPv6

Interfaces
Total Ethernet Ports 48 x 10/100/1000 (PoE+)
SFP Uplink Ports 4 x 100/1000 SFP
USB Ports 1 x USB-C console, 1 x USB Type-A host
Console Ports 1 x RJ-45 console
Management Port 1 x dedicated management port

Cloud Management & Licensing
Operating System AOS-CX
Management Interfaces RMON, CLI, SSH, Web GUI
Protocols Supported SNMP, RMON, LLDP, MIB

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL 62368-1, IEC 62368-1, EN 55032 Class A, EN 55035, FCC Part 15B Class A, ICES-003, EN 61000 series, VCCI Class A, CNS 15598, CISPR 32/35
