| Product Type | Rack Server |
| Series | HPE ProLiant DL360 Gen10 Plus |
| Form Factor | 1U Rackmount |
| Processor | Intel Xeon Silver 4309Y |
| Processor Core Count | 8-Core |
| Processor Clock Speed | 2.8 GHz |
| Max Turbo Frequency | 3.6 GHz |
| Cache | 12 MB L3 |
| Installed Memory | 32 GB DDR4 RDIMM |
| Memory Technology | DDR4 ECC Registered |
| Memory Form Factor | RDIMM |
| Memory Slots | 32 DIMM slots |
| Maximum Supported Memory | Up to 4 TB (with appropriate CPUs and LRDIMMs) |
| Storage Bays Included | 8 drive bays (SFF or LFF depending on chassis) |
| Installed Storage | |
| Chassis Weight | 37 lbs |
| Power Supply | 800W 80 PLUS Platinum Hot-Plug Power Supply |
| Number of Power Supplies Installed | 1 |
| Redundant Power Support | Yes (supports 2 PSUs) |
| Warranty | 3/3/3: 3-year parts, 3-year labor, 3-year onsite support |

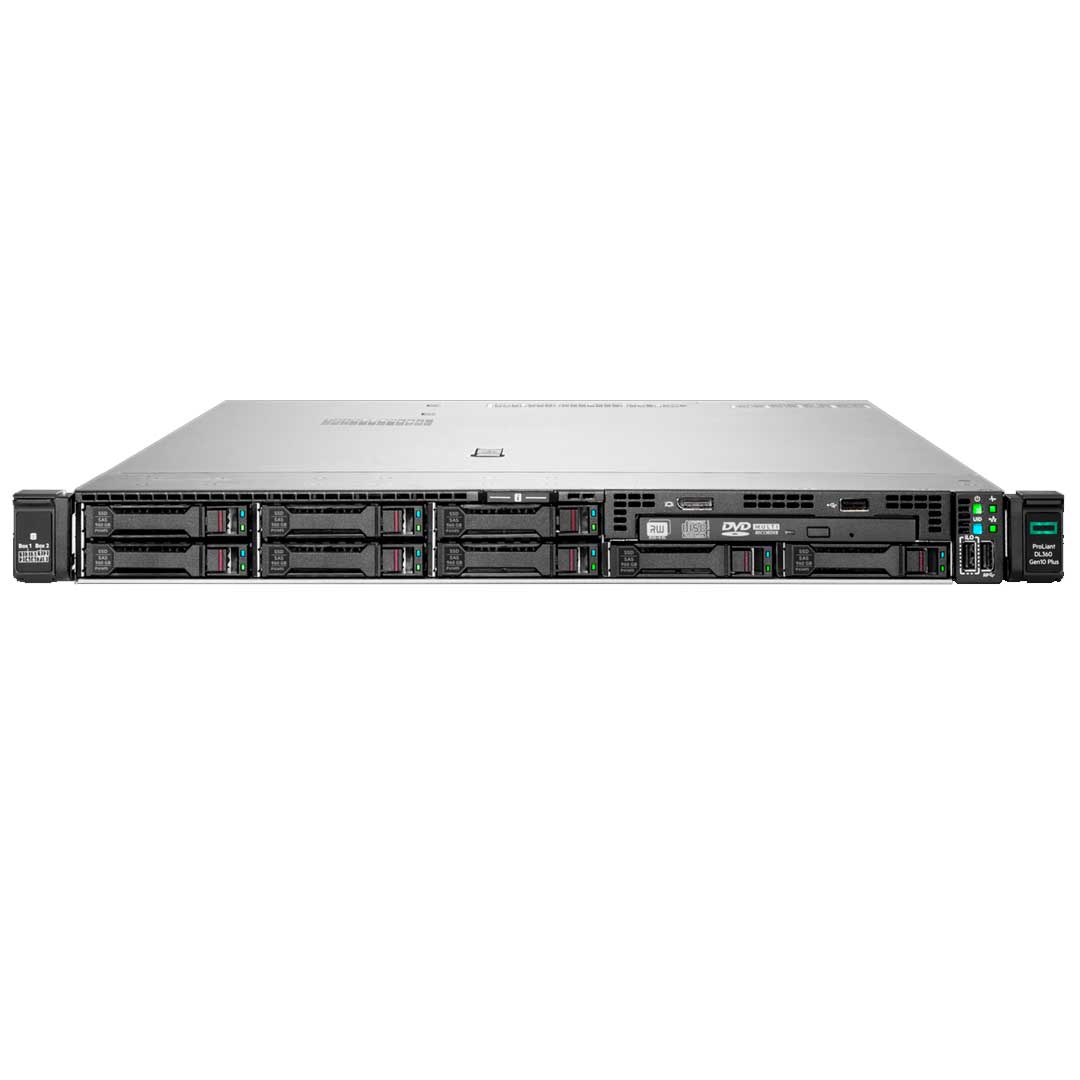

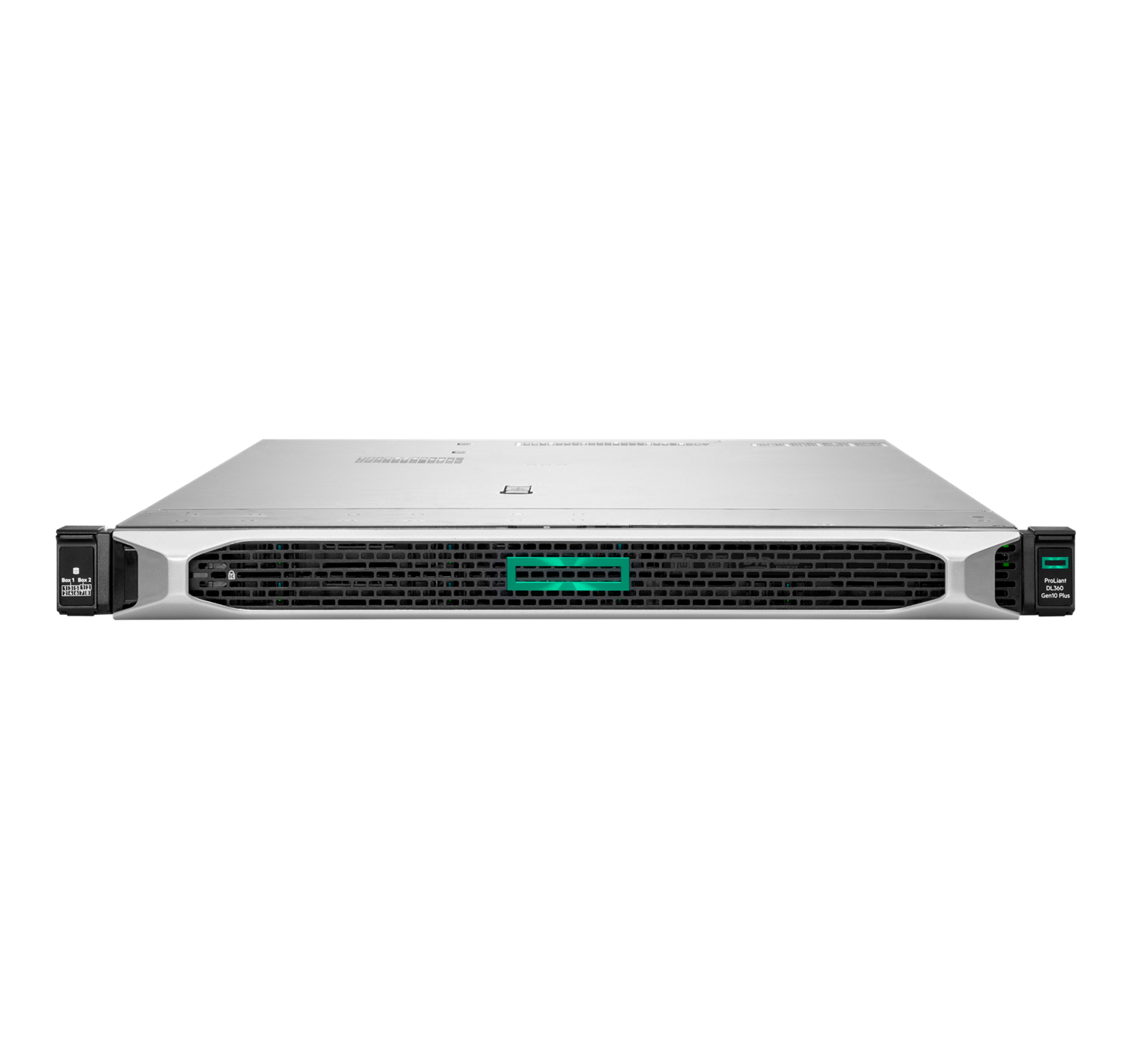

HPE DL360 Gen10+ 4309Y 1U Server, 32GB RAM, 800W PSU
Photo is for illustration purposes only. Actual product may be different.
Regular price
$7,547.00
Regular price
Sale price
$7,547.00
Unit price
per
MSRP: $15,894.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Intel Xeon 4309Y 8-Core processor with 2.8 GHz base and 3.6 GHz max turbo frequency
- 32 GB DDR4 RDIMM installed memory with 32 total DIMM slots
- 1U rackmount form factor with 8 available drive bays for flexible storage configuration
- Broadcom BCM57416 dual-port 10Gb Ethernet adapter for high-speed networking
- 800W power supply with 80 PLUS Platinum certification for power efficiency
- 2 PCIe Gen4 expansion slots (1 x16 full-height, 1 x16 low-profile)
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Optimized for dense data center environments with a compact 1U chassis and high compute performance
- Energy-efficient operations supported by 80 PLUS Platinum 800W PSU, lowering total cost of ownership
- High-speed connectivity through dual-port 10GbE, enhancing throughput for network-intensive workloads
Product Overview
The HPE ProLiant DL360 Gen10 Plus server is an advanced 1U rack-mounted solution built for high-performance enterprise tasks. Powered by a Xeon 4309Y 8-core processor and equipped with 32GB DDR4 RDIMM, it supports compute-heavy environments. It's supported by an 800W 80 PLUS Platinum power supply and features 2 PCIe Gen4 slots for I/O flexibility. The integrated Broadcom dual-port 10Gb Ethernet adapter enhances network throughput for virtualization and hybrid cloud use. While storage is not included, the system accommodates up to 8 drive bays, allowing customized storage scalability. A 3/3/3 warranty underscores its enterprise dependability.
Specifications
Product Overview
Physical & Environmental
| Width | 17.11 in (435 mm) |
| Depth | 30.30 in (770 mm) |
| Height | 1.69 in (43 mm) |
| Operating Temperature Range | 10°C to 35°C (50°F to 95°F) |
| Non-Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity Range (Operating) | 10% to 90% non-condensing |
| Humidity Range (Non-Operating) | 5% to 95% non-condensing |
| Acoustic Level (Typical) | 6.5 bels |
Cloud Management & Licensing
| Management Interface | HPE iLO 5 (Integrated Lights Out) |
| iLO Standard Features | Remote access, server monitoring, virtual media |
| iLO Advanced (Optional) | Advanced remote management, security, scripting |
| Included Software | HPE Intelligent Provisioning, HPE Insight Online |
Interfaces
| PCIe Expansion Slots | 2 PCIe Gen4 (1 x16 FH, 1 x16 LP) |
| Network Controller | Broadcom BCM57416 10Gb 2-port BASE-T OCP3 |
| Network Interface Type | 10 Gigabit Ethernet |
| Ethernet Ports | 2 x 10GbE BASE-T |
| Internal Storage Controller | HPE Smart Array MR416i-a (RAID) |
| USB Ports | Up to 5 USB ports (2 front, 2 rear, 1 internal) |
| Video Output | VGA port (rear) |
| Serial Port | 1 x Serial (rear) |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| Energy Efficiency Certification | 80 PLUS Platinum |
| RoHS Compliance | Yes |
| Certifications | FCC, UL, CE, VCCI, ICES |
Advanced Security Features
| Silicon Root of Trust | Yes |
| Secure Boot | UEFI Secure Boot enabled |
| Runtime Firmware Validation | Yes (with iLO 5) |
| TPM Support | Optional TPM 2.0 module |
| Chassis Intrusion Detection | Yes |
