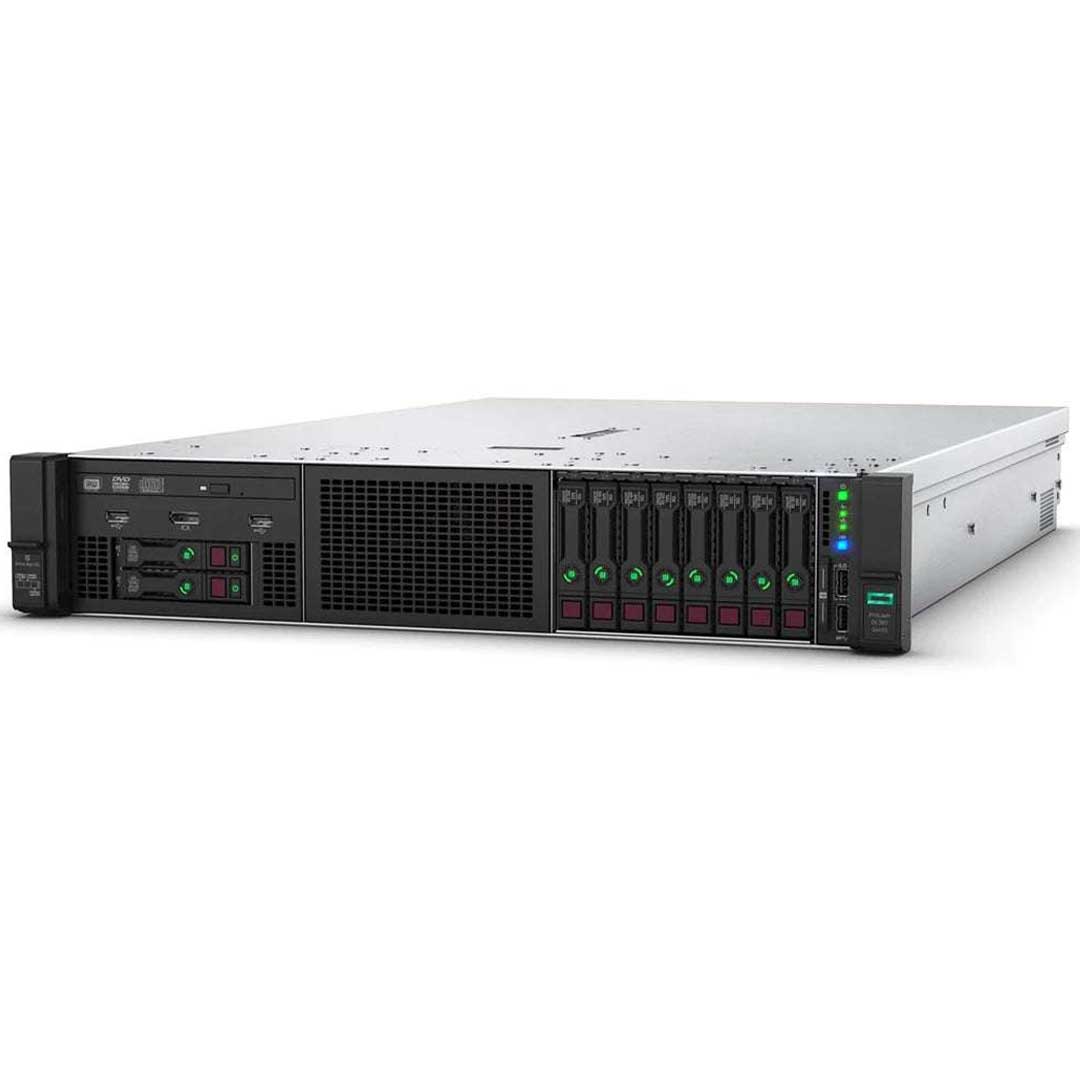

HPE DL380 G10+ Xeon 4309Y 1P 32GB 800W Server

VENDOR: HP Mfg Part#: P55244-B21 UPC#: 190017604749
1 1
Photo is for illustration purposes only. Actual product may be different.
$9,905.00
$9,905.00
Sale Sold out
MSRP: $11,818.00
Shipping calculated at checkout.
  • Intel Xeon 4309Y processor with 8 cores and clock speeds up to 3.6 GHz
  • 32 GB DDR4 RDIMM system memory with support for up to 32 slots
  • Broadcom BCM57412 10Gb 2-port SFP+ OCP3 Adapter for high-speed networking
  • 800W power supply unit with 80 PLUS Platinum certification for energy efficiency
  • Eight drive bays for flexible storage configurations
  • 2U rackmount design optimized for enterprise server deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enterprise-grade performance with Intel Xeon 8-core processor and 32 GB DDR4 RAM
  • High energy efficiency and reduced overhead through 80 PLUS Platinum certified PSU
  • Future-ready expandability with 32 DIMM slots and multiple drive and expansion options

Product Overview

The HPE ProLiant DL380 Gen10 Plus is a 2U rack server designed for enterprise workloads requiring high performance and scalability. It features a single Intel Xeon 4309Y 8-core processor at 2.8 GHz (turbo boosting to 3.6 GHz) and 32 GB DDR4 RDIMM, expandable through 32 total memory slots. Storage flexibility is supported with 8 drive bays, and advanced network performance is delivered through a Broadcom BCM57412 10Gb 2-port SFP+ adapter. The unit is powered by an 800W 80 PLUS Platinum certified PSU for energy-efficient operation. With TAA compliance and a comprehensive 3/3/3 server warranty, it offers reliable deployment for virtualization, database processing, and scalable infrastructure needs.

Specifications

Product Overview
Product Type Rack Server
Model HPE ProLiant DL380 Gen10 Plus
Form Factor 2U
Processor Intel Xeon Silver 4309Y
Processor Speed 2.8 GHz (Base) / 3.6 GHz (Turbo)
Processor Cores 8 Cores
Processor Installed 1
Processor Max Supported 2
L3 Cache 12 MB
Memory Installed 32 GB
Memory Type DDR4 RDIMM
Memory Slots 32 DIMM Slots
Maximum Memory Supported Up to 4 TB
Power Supply 800W 80 PLUS Platinum
Number of Power Supplies 1 (Supports Redundant Option)
Weight 63.43 lbs

Physical & Environmental
Width 3.44 in (87.4 mm)
Depth 28 in (711.2 mm)
Height 17.54 in (445.6 mm)
Power AC Voltage Range 100 - 240 VAC
Operating Temperature 10°C to 35°C (50°F to 95°F)
Non-operating Temperature -30°C to 60°C (-22°F to 140°F)
Operating Humidity Range 8% to 90% (non-condensing)
Acoustic Level 7.0 bels (typical)
Cooling System Hot-pluggable fans with redundancy

Cloud Management & Licensing
Management Software HPE Integrated Lights-Out (iLO) 5
Management Features Remote console, virtual media, security dashboard
Optional Licensing iLO Advanced and HPE OneView
Bundled Software HPE System Insight Manager (SIM), Intelligent Provisioning

Interfaces
Network Adapter Broadcom BCM57412 10Gb 2-port SFP+ OCP3
Ethernet Ports 2 x 10Gb SFP+
Network Interface Type Ethernet
RAID Controller HPE Smart Array S100i (Software RAID)
RAID Support RAID 0, 1, 5, 10 (with appropriate controller)
Drive Bays Available 8 x SFF bays
Optical Drive Optional (not included)
Expansion Slots 8 (varies by riser configuration)

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
80 PLUS Certification Platinum
Server Warranty 3/3/3: Parts, Labor, Onsite support
Certifications FCC, UL, CE, VCCI
RoHS Compliant Yes

Advanced Security Features
Silicon Root of Trust Yes
Runtime Firmware Verification Yes
Secure Recovery Yes
TPM Support Optional TPM 2.0
Secure Boot Yes
