HPE DL380 Gen10+ Xeon 4309Y 32GB DDR4 2U Rack Server

VENDOR: HP Mfg Part#: P55245-B21 UPC#: 190017604756
1 1

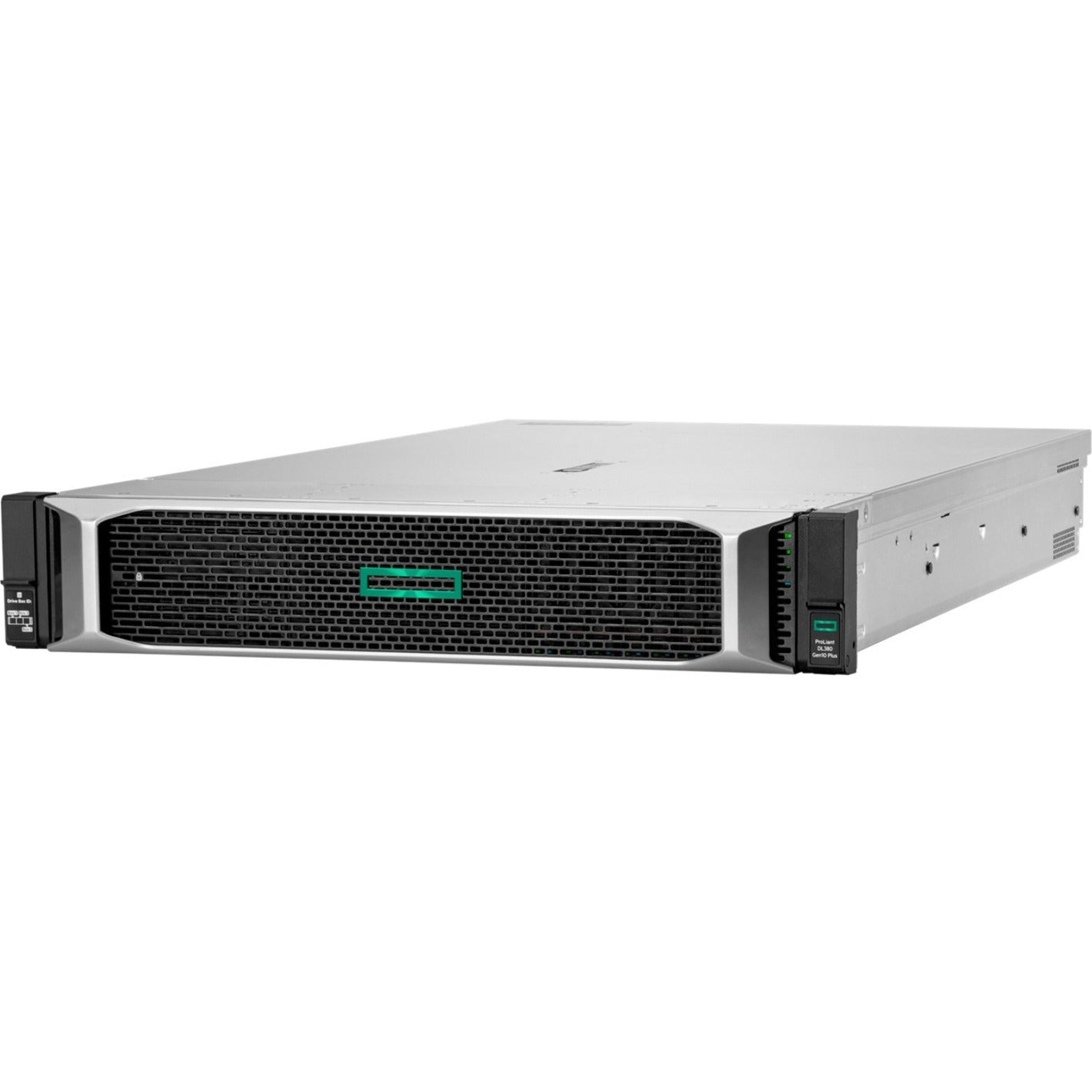

Photo is for illustration purposes only. Actual product may be different.
$7,943.00
$7,943.00
Sale Sold out
MSRP: $16,373.00
Shipping calculated at checkout.
  • Intel Xeon 4309Y processor with 8 cores and 3.6 GHz turbo frequency
  • 32 GB DDR4 RDIMM memory installed, 32 DIMM slots total
  • 2U rack-mountable chassis with 8 HDD/SSD bays
  • Dual 10Gb SFP+ Ethernet ports (Broadcom BCM57412 adapter)
  • 800W 80 PLUS Platinum certified power supply
  • 8 total expansion slots for future scalability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports 3rd Gen Intel Xeon Scalable CPUs, delivering reliable performance for business applications
  • TAA compliance and 3/3/3 warranty make it suitable for government or regulated use
  • Highly scalable architecture with 32 DIMM slots and 8 drive bays supports future growth needs

Product Overview

The HPE DL380 Gen10+ is a 2U rack-mount server powered by an Intel Xeon 4309Y processor with 8 cores and 3.6 GHz turbo boost. It features 32GB DDR4 RDIMM memory (expandable via 32 total DIMM slots) and an 800W 80 PLUS Platinum PSU for efficient power usage. Dual 10Gb Ethernet SFP+ connectivity is included via Broadcom BCM57412 adapter, and the system allows up to 8 drive bays for storage scalability. With 8 expansion slots and TAA compliance, this server suits government and enterprise data center deployments.

Specifications

Product Overview
Product Name HPE DL380 Gen10+ Xeon 4309Y 32GB DDR4 2U Rack Server
Manufacturer HP
Part Number P55245-B21
Server Type Rack-mount
Form Factor 2U
Processor Intel Xeon Silver 4309Y
Processor Cores 8 cores
Processor Base Frequency 2.8 GHz
Processor Turbo Frequency 3.6 GHz
Cache 12 MB L3
Installed Memory 32 GB DDR4 RDIMM
Memory Type DDR4 RDIMM
Memory Slots 32 DIMM slots
Power Supply 800W 80 PLUS Platinum
Installed Power Supply Quantity 1
Power Requirements 100-240 VAC
Weight 63.43 lbs.

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
80 PLUS Certification Platinum
Regulatory Compliance FCC, UL, CE, VCCI, RoHS
Environment Standards ASHRAE A3/A4 supported configuration dependent

Advanced Security Features
Silicon Root of Trust Yes (HPE Silicon Root of Trust)
Secure Boot Yes
TPM Support Optional TPM 2.0 Module
Chassis Intrusion Detection Supported
Firmware Protection iLO firmware validation, Runtime firmware verification

Interfaces
Network Controller Broadcom BCM57412
Ethernet Ports 2 x 10Gb SFP+
Ethernet Controller Type Dual-Port SFP+ Adapter
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Expansion Slots 8 PCIe Gen4 slots
USB Ports Up to 5 (varies by configuration)
Drive Bays Up to 8 SFF or LFF (depending on backplane configuration)

Physical & Environmental
Height 3.44 in
Width 17.54 in
Depth 28 in
Operating Temperature Range 10°C to 35°C (50°F to 95°F)
Non-operating Temperature Range -30°C to 60°C (-22°F to 140°F)
Operating Humidity Range 10% to 90% RH (non-condensing)
Non-operating Humidity Range 5% to 95% RH
Acoustic Power (LwAd) 6.6 B

Cloud Management & Licensing
Remote Management HPE iLO 5
Included Management Tools HPE Integrated Lights-Out (iLO), HPE InfoSight
iLO Advanced License Optional (not included)
OS Support Windows Server, Red Hat, SUSE, VMware, Canonical Ubuntu
