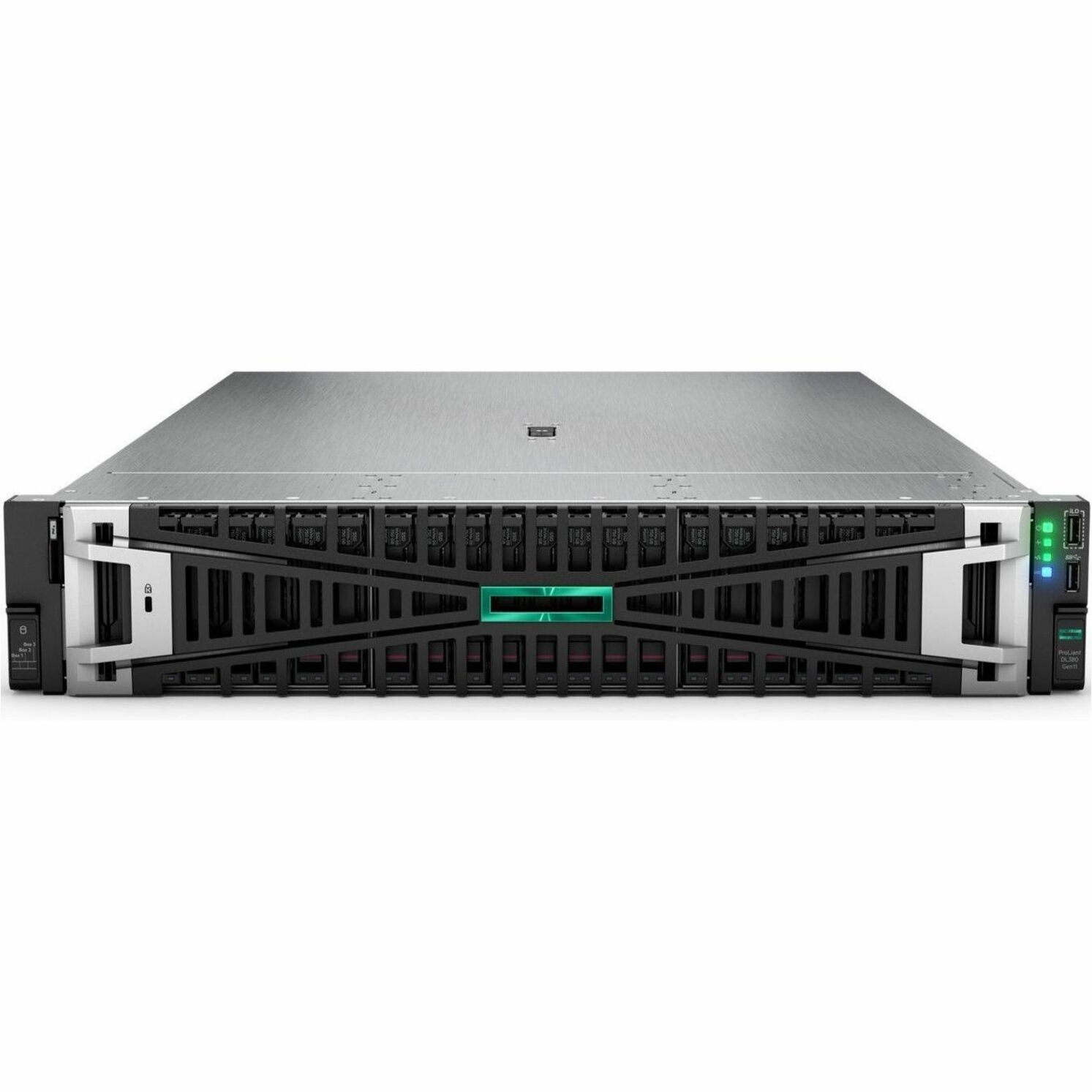

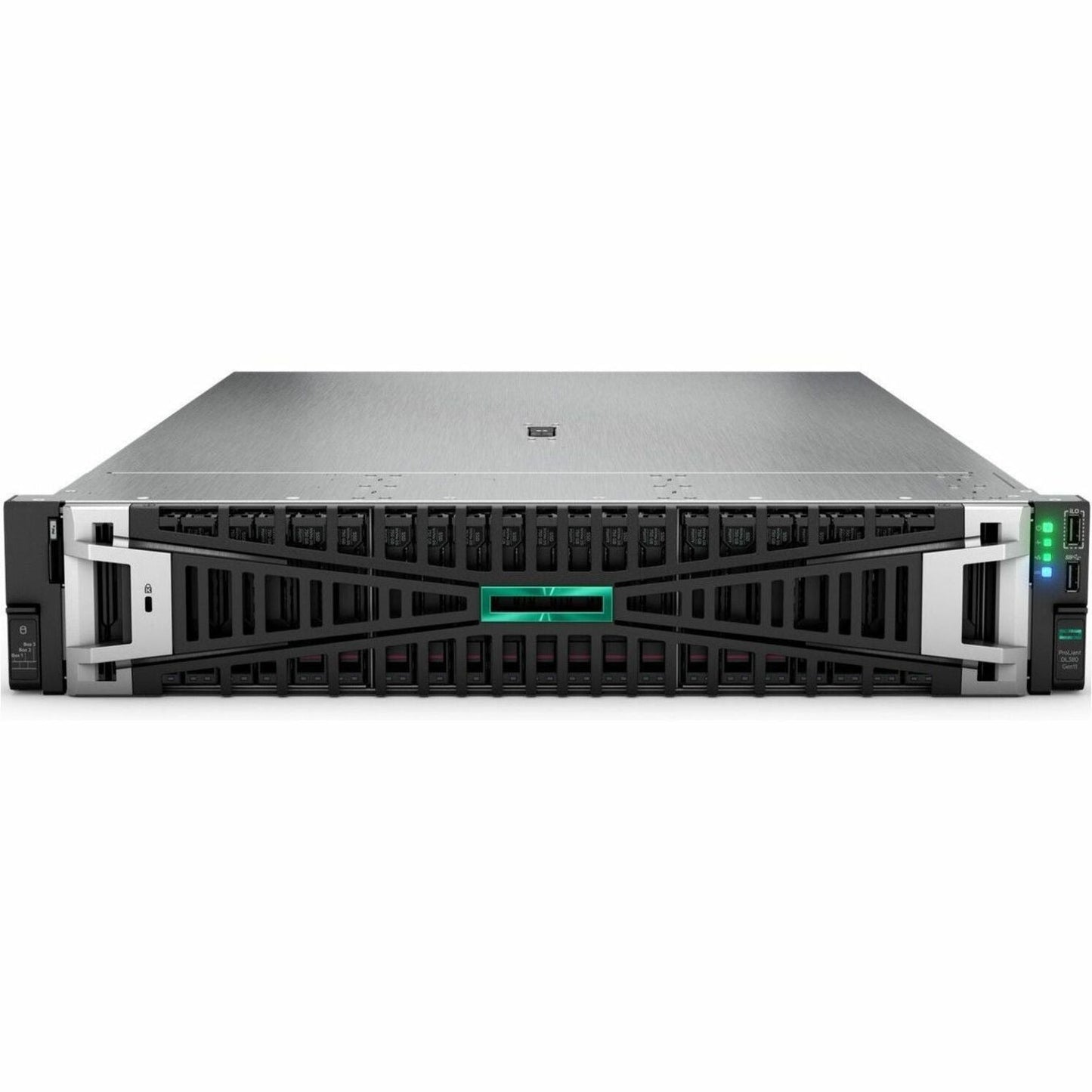

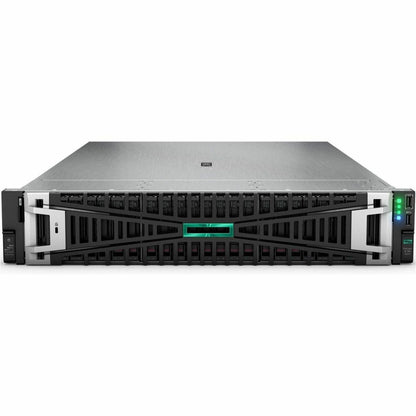

HPE DL380 Gen11 5416S 32GB 8SFF Server with MR408i-o Controller

VENDOR: HP Mfg Part#: P52561-B21 UPC#: 190017586182
1 3
Photo is for illustration purposes only. Actual product may be different.
$9,431.00
$9,431.00
Sale Sold out
MSRP: $20,409.00
Shipping calculated at checkout.
  • Intel Xeon Gold 5416S 16-core processor with 4 GHz max turbo frequency
  • 32 GB DDR5 RDIMM memory at 4800 MHz (max supported up to 8 TB)
  • Broadcom MR408i-o storage controller and 8 SFF drive bays (2.5")
  • Dual-port 10Gb Broadcom BCM57416 Ethernet adapter
  • Up to 8 PCIe Gen5 and 2 OCP 3.0 slots for expansion
  • 800W 80 PLUS Platinum hot-plug power supply

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-speed DDR5 memory and support for up to 8 TB enables advanced virtualization and memory-heavy workloads
  • Broadcom MR408i-o RAID controller and hot-swappable storage bays support scalable, enterprise-level storage configurations
  • Integrated iLO and 10Gb dual-port Ethernet offer remote manageability and fast network throughput for seamless IT operations

Product Overview

The HPE ProLiant DL380 Gen11 Server is purpose-built to support modern enterprise workloads with an Intel Xeon Gold 5416S 16-core processor and 32 GB of DDR5 RDIMM memory operating at 4800 MHz. Featuring a Broadcom MR408i-o controller and support for up to 8 hot-plug 2.5-inch storage bays, the system is engineered for expandability and speed. With dual 10Gb Ethernet ports and up to 8 PCIe Gen5 slots, the server ensures quick data throughput and future-ready I/O expansion. Management is simplified via integrated iLO capabilities while the 800W 80 PLUS Platinum power supply optimizes energy consumption. Designed for performance, flexibility, and efficiency, this server is an ideal solution for mid-size to enterprise-level deployments.

Specifications

Product Overview
Product Type Rack Server
Manufacturer HP
Model HPE ProLiant DL380 Gen11
Part Number P52561-B21
UPC 190017586182
Form Factor 2U Rack-mountable
Processor Type Intel Xeon Gold 5416S
Number of Processors Installed 1
Maximum Supported Processors 2
Processor Base Frequency 2 GHz
Processor Max Turbo Frequency 4 GHz
Total Cores per CPU 16
Chipset Intel C741
Installed Memory 32 GB
Memory Type DDR5 RDIMM
Memory Speed 4800 MHz
Memory Slots 16
Maximum Memory Supported 8 TB
Power Supply Capacity 800 Watt
Number of Power Supplies Installed 1
Power Supply Efficiency Rating 80 PLUS Platinum

Wireless Features

Compliance & Origin
Country of Origin United States
TAA Compliant Yes

Advanced Security Features
Security Design Trusted Security by Design with Silicon Root of Trust
Firmware Protection Runtime Firmware Validation
Security Features UEFI Secure Boot, Silicon Root of Trust, FIPS 140-2 compliance (option)

Interfaces
USB Ports USB 3.0 (Front and Rear)
Video Output VGA
Integrated Management Port iLO Service Port (Front), 1 Gb Dedicated Management Port (Rear)
Expansion Slots Up to 8 PCIe Gen5, 2 x OCP 3.0
Network Controller Broadcom BCM57416 Dual Port 10Gb BASE-T
Data Link Protocol 10 Gigabit Ethernet
Storage Bays 8 x 2.5" SFF Hot-Plug Bays
Storage Controller Broadcom MegaRAID MR408i-o

Physical & Environmental
Width 17.64 inches
Depth 28.62 inches
Height 3.44 inches
Minimum Operating Temperature 10 °C
Maximum Operating Temperature 35 °C
Operating Humidity Range 8% to 90% RH

Cloud Management & Licensing
Management Interface HPE Integrated Lights-Out (iLO)
Cloud Features Intuitive Cloud Operating Experience: Simple, Self-service, Automated
Licensing Model HPE iLO Advanced (License Sold Separately)
