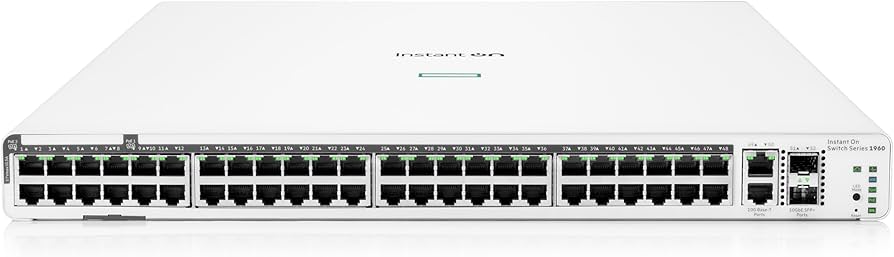

HPE Networking Instant On 1960 48G PoE 600W Switch JL809A#ABA

VENDOR: HP Mfg Part#: JL809A#ABA UPC#: 190017522920
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,965.00
$2,965.00
Sale Sold out
MSRP: $3,635.00
Shipping calculated at checkout.
  • 48 total Gigabit Ethernet ports including 40 Class 4 PoE (802.3at) and 8 Class 6 PoE++ (802.3bt)
  • Dual uplink support with 2 x 10GBASE-T and 2 x SFP+ ports
  • Cloud-managed stacking support for simplified multi-switch deployment
  • Integrated ARMv7 Cortex-A9 processor with 1 GB RAM and 512 MB flash memory
  • Data transfer rate of 10 Gbps with jumbo frame support up to 9216 bytes
  • MAC address table capacity of 16,000 entries for optimized network traffic

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports up to 600W of PoE power delivery, making it ideal for powering VoIP phones, APs, and surveillance devices without additional infrastructure.
  • Dual 10G uplinks ensure flexible high-speed connectivity to core network infrastructure, improving backbone performance.
  • Cloud-managed stacking and remote management protocols enable easy deployment and centralized control for growing small businesses.

Product Overview

The HPE Networking Instant On 1960 48G PoE 600W Switch (JL809A#ABA) is engineered for small businesses demanding scalable performance and reliable networking infrastructure. Featuring 48 Gigabit Ethernet ports with 40 supporting Class 4 PoE and eight with Class 6 PoE++, this switch delivers 600W of total power for connected devices. It offers dual 10G uplinks via 10GBASE-T and SFP+ for high-speed connection options.

With cloud-managed stacking, remote protocols such as SNMP, RMON, IPv4/IPv6 support, and business-ready Layer 2 features, this device ensures easy deployment and management. Its robust build, including 1GB RAM and 512MB of flash with an ARMv7 Cortex-A9 processor, enables multi-device management and reliable data flow. Backed by a limited lifetime warranty and TAA-compliant, it's a future-ready choice for demanding small business networks.

Specifications

Product Overview
Type Switch
Model Instant On 1960
Form Factor 1RU
Weight 10.8 lbs.
Power Requirements 100-127VAC / 200-240VAC
Max Power Consumption 790 Watt
PoE Power Budget 600 W
Installed RAM 1 GB
Flash Memory 512 MB
Processor Type ARMv7 Cortex-A9

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin SINGAPORE
TAA Compliance Yes
Certifications

Advanced Security Features
Authentication Method RADIUS
Security Features Robust security to protect your network

Interfaces
Total Ports 52
Gigabit Ethernet Ports 48 x 1 G
Uplink Ports 2 x 10GBASE-T, 2 x SFP+
SFP+ Ports 2
Data Transfer Rate 10 Gbps
Data Link Protocol 10 Gigabit Ethernet
MAC Address Table Size 16000 entries
Jumbo Frame Support up to 9216 bytes
Media Layer Supported Layer 2
Networking Standards IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an
Connectivity Technology Wired

Physical & Environmental
Width 15.86 Inch
Depth 17.42 Inch
Height 1.73 Inch
Minimum Operating Temperature 0 Celsius
Maximum Operating Temperature 40 Celsis
Minimum Storage Temperature -40 Celsius
Maximum Storage Temperature 70 Celsius

Cloud Management & Licensing
Management Interface Cloud-managed stacking
Remote Management Protocols SNMP, RMON, IPv4, IPv6
Licensing Model

Power over Ethernet (PoE)
PoE Support Yes
PoE Port Configuration 40 x Class 4 PoE, 8 x Class 6 PoE++
