IBM SAN24C-7 64G 24-Port FC Fabric Switch + 24 32G Optics

VENDOR: CISCO Mfg Part#: 03FR182
1 1

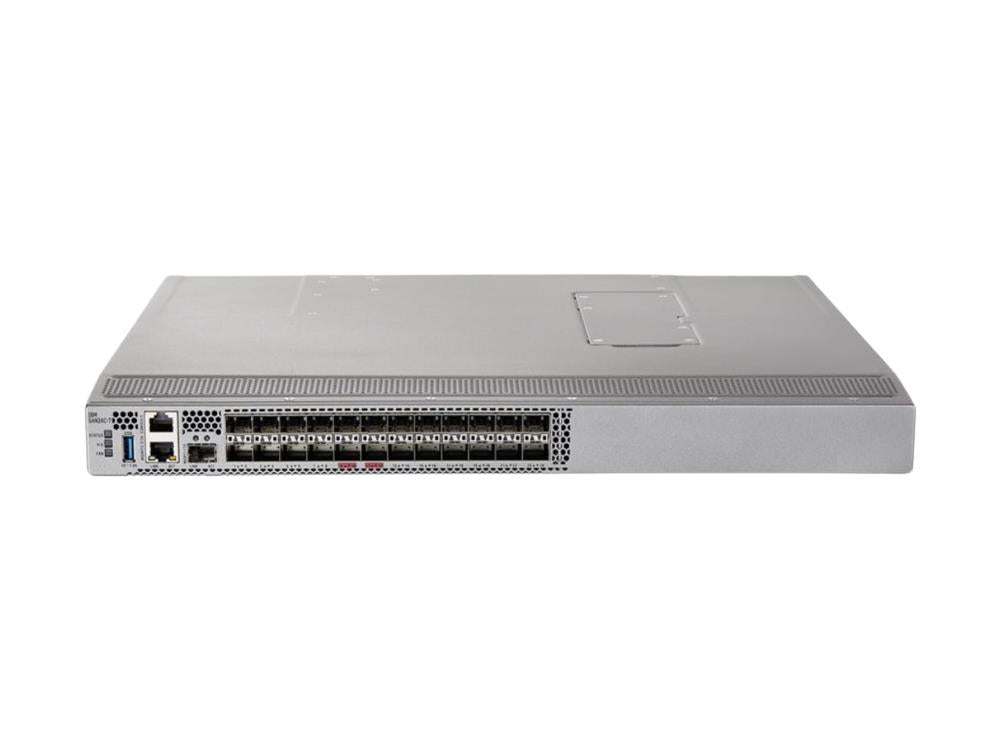

Photo is for illustration purposes only. Actual product may be different.
$20,663.00
$20,663.00
Sale Sold out
MSRP: $62,356.00
Shipping calculated at checkout.
  • 64 Gbps data transfer rate for high-performance networking
  • 28 total ports including Fibre Channel and Gigabit Ethernet
  • 1RU rack-mountable form factor for space-efficient deployment
  • Secure boot and anti-counterfeiting features for enhanced hardware protection
  • TAA compliant, suitable for government and regulated sectors
  • Operating temperature range from 0 to 40°C with extended storage capability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Includes 24 32G optics, delivering ready-to-deploy Fibre Channel connectivity
  • Compact 1RU design saves valuable data center rack space
  • TAA compliance and hardware security features ensure regulatory and operational peace of mind

Product Overview

The IBM SAN24C-7 64G 24-Port FC Fabric Switch delivers high-bandwidth SAN connectivity with its 28 ports and 64 Gbps transfer rate. The switch includes 24 pre-installed 32G optics, supports Fibre Channel and Gigabit Ethernet interfaces, and fits easily into racks with its 1RU form factor. Key features like secure boot, anti-counterfeiting, and TAA compliance ensure enterprise-ready security and compliance. Designed for robust use across temperature extremes, this device is ideal for reliable data center operations.

Specifications

Product Overview
Manufacturer CISCO
Model SAN24C-7
Manufacturer Part Number 03FR182
Product Type Fibre Channel Switch
Form Factor 1RU
Weight 8.5 Kg
Power Requirements 100 to 240 VAC, 50/60 Hz
Power Supply Type Redundant Hot-swappable Power Supplies
Connectivity Technology Wired

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL, CSA, CE, FCC Class A, VCCI, BSMI, RoHS, WEEE

Advanced Security Features
Secure Boot Yes
Anti-Counterfeiting Technology Yes
Access Control Role-based access control (RBAC)
Authentication Methods RADIUS, TACACS+
Encryption Secure management with SSH v2, HTTPS
Secure Firmware Updates Digitally signed firmware

Interfaces
Total Ports 28
Fibre Channel Ports 24 x 32 Gbps SFP+
Included Optics 24 x 32G Fibre Channel SFP+
Fibre Channel Speed 32 Gbps
Max Port Speed 64 Gbps
Ethernet Ports 2 x 10/100/1000BASE-T
Serial Console Port 1 x RS-232
USB Ports 1 x USB 2.0
Port Expansion Up to 28 Fibre Channel Ports with License
Data Link Protocols Fibre Channel, Ethernet
Switching Fabric Bandwidth 896 Gbps

Physical & Environmental
Width 17.3 Inch
Depth 18 Inch
Height 1.72 Inch
Operating Temperature (Min) 0 °C
Operating Temperature (Max) 40 °C
Storage Temperature (Min) -40 °C
Storage Temperature (Max) 70 °C
Relative Humidity Range (Operating) 10% to 85% (non-condensing)
Relative Humidity Range (Storage) 10% to 90% (non-condensing)
Heat Dissipation 398 BTU/hr (max)

Cloud Management & Licensing
Management Interface CLI, SNMP v1/v2/v3, RADIUS, TACACS+, Syslog
Cloud Management
Included Licensing 24-port base license included
Optional Licenses On-Demand Port Activation, Enterprise Connectivity Features
