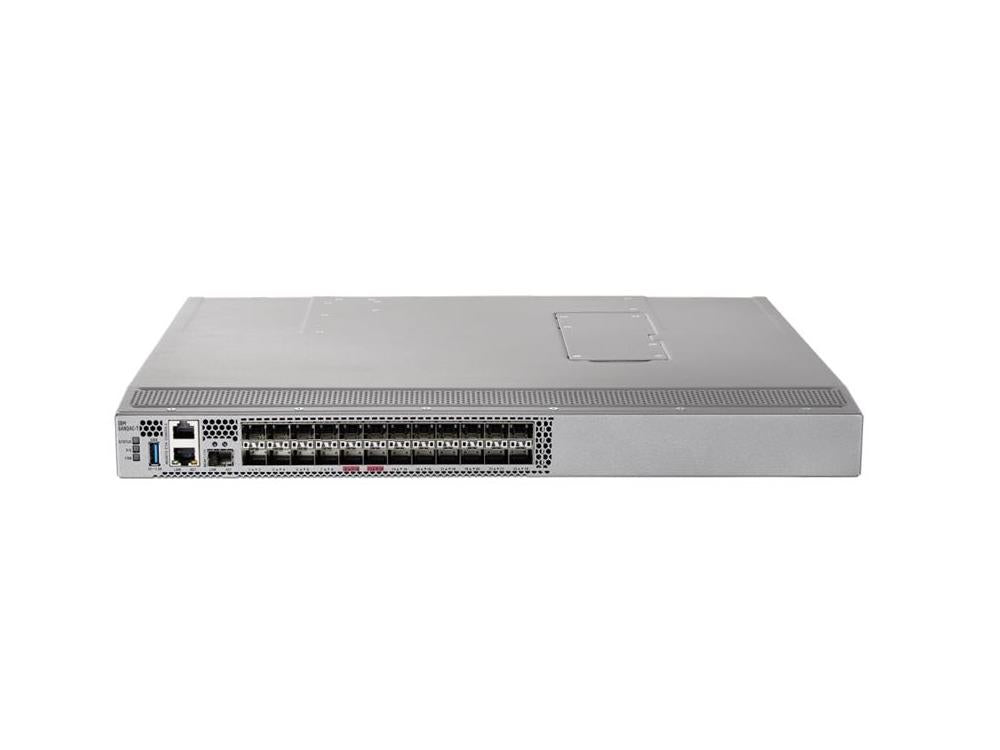

IBM SAN24C-7 64G FC Switch with 8 Active Ports and 64G Optics

VENDOR: CISCO Mfg Part#: 00NR229
  • No_media_available
1 0
Photo is for illustration purposes only. Actual product may be different.
$14,972.00
$14,972.00
Sale Sold out
MSRP: $45,181.00
Shipping calculated at checkout.
  • 64 Gbps data transfer rate supports high-speed Fibre Channel performance.
  • Includes 8 active ports and 8 installed 64G optics for immediate deployment.
  • Compact 1RU form factor optimizes rack space in data center environments.
  • Secure-boot and anti-counterfeiting technology enhance hardware and network security.
  • Supports up to 28 networking ports for scalable fiber channel infrastructure.
  • TAA compliant and manufactured in Mexico, suitable for regulated industries.

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers up to 64 Gbps performance, ideal for demanding SAN deployments requiring high-speed data transfer.
  • Designed with security-first features like secure boot and anti-counterfeiting technology to protect critical infrastructure.
  • TAA-compliance and dependable Cisco manufacturing ensure suitability for government and enterprise-grade use cases.

Product Overview

The IBM SAN24C-7, manufactured by Cisco, is a 64G Fibre Channel (FC) switch optimized for enterprise and high-density storage networks. It features 8 active ports and includes 8 64G optics, delivering performance up to 64 Gbps. Housed in a compact 1RU chassis, it provides efficient use of rack space. Integrated secure-boot and anti-counterfeiting technologies add critical layers of protection against unauthorized access and counterfeit hardware. With 28 total ports and TAA-compliant construction, this switch supports secure, scalable deployments in diverse enterprise environments.

Specifications

Product Overview
Manufacturer CISCO
Product Name IBM SAN24C-7 64G FC Switch with 8 Active Ports and 64G Optics
Manufacturer Part Number 00NR229
Model SAN24C-7
Product Type Fibre Channel Switch
Form Factor 1RU
Weight 8.5 Kg
Power Requirements AC 100–240V, 50/60Hz
Power Consumption (Typical) 86 Watts
Power Consumption (Maximum) 103 Watts

Wireless Features
Wireless Capability

Compliance & Origin
TAA Compliance Yes
Country of Origin Mexico
EMC Compliance FCC Part 15 Class A, ICES-003, EN55032, EN55024
Safety Standards UL 60950-1, CSA 22.2, EN 60950-1
RoHS Compliance Yes
CE Marking Yes

Advanced Security Features
Secure Boot Yes
Anti-counterfeit Hardware Protection Yes
Role-Based Access Control (RBAC) Yes
AAA Support RADIUS and TACACS+
Secure Management SSH, SNMPv3, HTTPS

Interfaces
Total Number of Ports 28
Active Ports Included 8
Port Type Fibre Channel (SFP+/SFP28/SFP56)
Included Transceivers 8 x 64G FC SFP Transceivers
Port Speeds Supported 4/8/10/16/32/64 Gbps auto-negotiation
Expansion Slots 28 x SFP+ (FC)
Aggregate Switch Bandwidth 2.24 Tbps
Throughput 1120 Mpps
Forwarding Rate 1120 million packets per second (Mpps)

Physical & Environmental
Width 17.299 inch
Depth 18 inch
Height 1.72 inch
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity Range 10% to 85% (non-condensing)
Storage Humidity Range 5% to 95% (non-condensing)
Cooling System Redundant fans with front-to-back airflow

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, DCNM (Data Center Network Manager)
Compatible Platforms IBM Spectrum Control, Cisco SAN Manager
Licensing Model Port activation-based licensing
Pre-installed Licenses 8 Port Licenses Included
Remote Management Supported via DCNM
