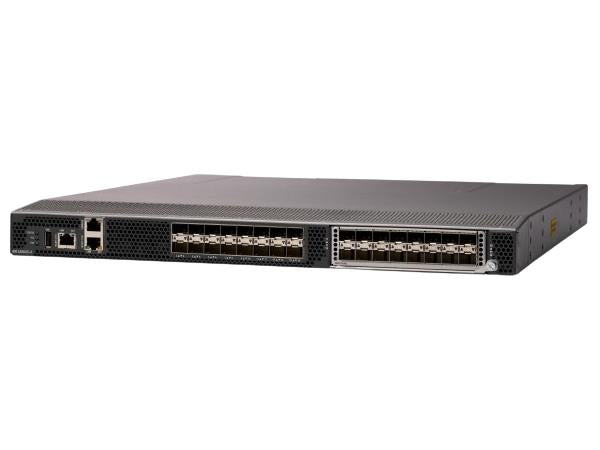

IBM SAN32C-6 32G FC 8-Port Fabric Switch - 01FT563 by CISCO

VENDOR: CISCO Mfg Part#: 01FT563
  • No_media_available
1 0
Photo is for illustration purposes only. Actual product may be different.
$3,213.00
$3,213.00
Sale Sold out
MSRP: $9,695.00
Shipping calculated at checkout.
  • 32 Gbps Fibre Channel throughput for high-speed data transfers
  • Supports up to 36 ports in a 1RU form factor for efficient rack utilization
  • Advanced security with AES encryption and RADIUS/TACACS+ authentication
  • Remote management via SNMP, SSH, and HTTPS protocols
  • Scalable design supporting pay-as-you-grow SAN expansion
  • TAA compliant and manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports high-speed 32Gb Fibre Channel for improved SAN performance
  • Advanced security and remote management protocols increase data protection and administrative efficiency
  • Scalable architecture and one-year support reduce upfront investment and enhance ROI

Product Overview

The IBM SAN32C-6 32G 8-Port FC Fabric Switch, part number 01FT563 by Cisco, is a high-performance Fibre Channel switch designed for enterprise-class SAN environments. It offers a 32 Gbps data transfer rate across up to 36 ports in a space-efficient 1RU form factor. Security features include AES encryption and authentication via RADIUS and TACACS+, with remote management supported over SNMP, SSH, and HTTPS. Designed to scale with your business needs, this switch provides cost-efficient expansion and is TAA-compliant, making it suitable for government and regulated industries.

Specifications

Product Overview
Manufacturer CISCO
Model SAN32C-6
Product Type Fibre Channel Switch
Form Factor 1RU
Power Requirements 100 to 240 VAC, 50/60 Hz
Weight 9.82 Kg
Typical Power Consumption 98 Watts
Maximum Power Consumption 120 Watts

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
Certifications UL, CSA, CE, FCC Part 15 Class A, RoHS
Safety Standards UL 60950-1, IEC 60950-1, EN 60950-1
Electromagnetic Compliance EN55022 Class A, CISPR22 Class A

Advanced Security Features
Encryption Algorithm AES
Authentication Methods RADIUS, TACACS+
Role-Based Access Control Yes
Secure Management Access SSH v2, HTTPS
FIPS 140-2 Compliance Yes (with required modules)
Zoning Types Hard zoning, WWN zoning, port zoning

Interfaces
Data Link Protocol 32Gb Fibre Channel
Port Count 8 ports licensed (expandable to 36)
Total Physical Ports 36 SFP+ slots
Interface Type SFP+ (Small Form-factor Pluggable)
Data Transfer Rate per Port 32 Gbps
Aggregate System Bandwidth 1.15 Tbps
Buffer Credits per Port Up to 500

Physical & Environmental
Width 17.3 Inch
Depth 20.11 Inch
Height 1.72 Inch
Operating Temperature 32°F to 104°F (0°C to 40°C)
Non-Operating Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Non-Operating Humidity 5% to 95% (non-condensing)
Cooling Type Front-to-back airflow with hot-swappable fans
Rack Mountable Yes

Cloud Management & Licensing
Remote Management Protocols SNMP, SSH, HTTPS
Management Interface Cisco DCNM or CLI
License Model Port-based licensing model
Included Licenses 8 ports standard, others optional
