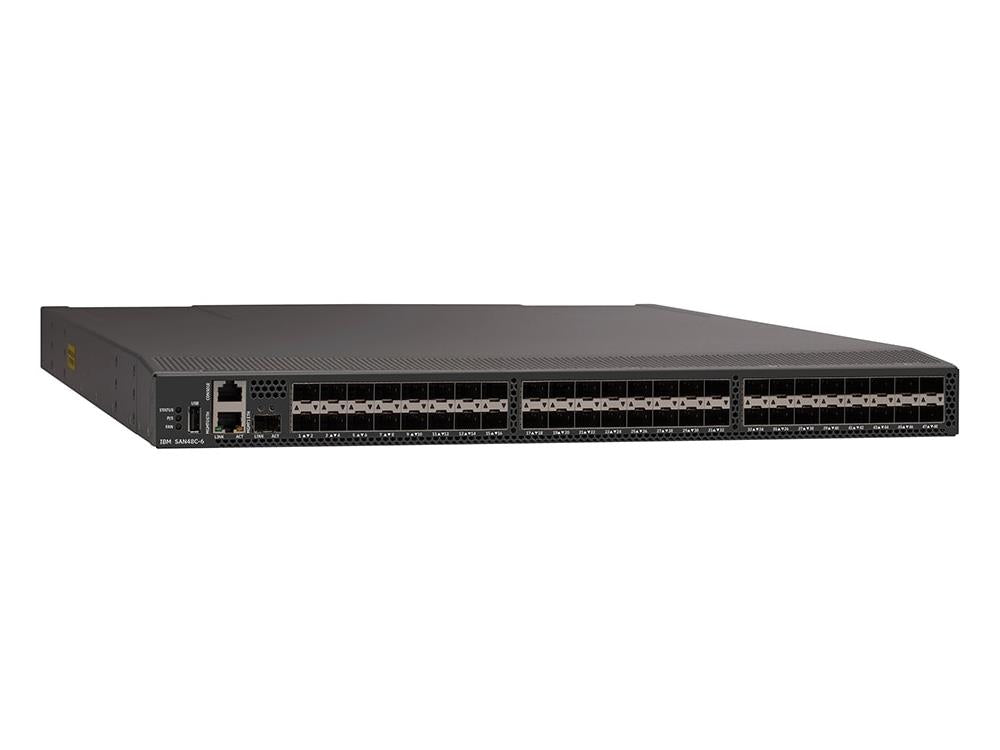

IBM SAN48C-6 32G 48-Port FC Fabric Switch with 48 Optics

VENDOR: CISCO Mfg Part#: 02JD729
1 3
Photo is for illustration purposes only. Actual product may be different.
$33,677.00
$33,677.00
Sale Sold out
MSRP: $101,630.00
Shipping calculated at checkout.
  • 48-port 32G Fibre Channel switch with 52 total ports
  • Up to 32 Gbps data transfer rate for high-speed networking
  • Compact 1RU rack-mount design for space-efficient deployment
  • Interfaces include Fibre Channel, RJ-45, RS-232, and USB
  • SNMP support for remote management and monitoring
  • TAA compliant and operates between 0°C and 40°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Includes 48 32G optics for out-of-the-box fibre channel deployment.
  • Ideal for space-critical server rooms with its compact 1RU design.
  • Reduces total cost of ownership through SAN consolidation features.

Product Overview

The IBM SAN48C-6 is a high-performance 32G Fibre Channel switch built for enterprise SAN environments. With 48 active ports and included optics, it provides high-speed data transfers up to 32 Gbps in a compact 1RU form factor. Its versatile interfaces include Fibre Channel, RJ-45, RS-232, and USB, and its SNMP support enables remote management. Powered by a 650W PSU and operating within a wide temperature range, it's TAA compliant and suited for critical infrastructure deployments.

Specifications

Product Overview
Product Type Fibre Channel Fabric Switch
Model SAN48C-6
Form Factor 1RU
Connectivity Technology Wired
Weight 19.6 lbs (8.9 kg)
Power Supply Internal AC Power Supply
Power Consumption 650 Watts
Voltage Required 100 to 240 VAC
Redundant Power Yes (optional)
Hot-swappable Fans and Power Supplies Yes

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CE, CSA, FCC Part 15 Class A, ICES-003
RoHS Compliant Yes

Advanced Security Features
Access Control Role-Based Access Control (RBAC)
Authentication methods RADIUS, TACACS+, LDAP
Security Features FC-SP, DH-CHAP, port security, Secure Boot, Secure Console
Fabric Security Protocol FC-SP

Interfaces
Total Ports 48 active ports (expandable to 48)
Port Type SFP+ (Fibre Channel)
Interface Types 48 x 32G Fibre Channel SFP+, 1 x RJ-45 management, 1 x RS-232 console, 1 x USB
Data Link Protocol 32G Fibre Channel
Port Speed 32/16/8 Gbps auto-negotiated
Aggregate Bandwidth 1536 Gbps
Expansion Slots 48 x SFP+ slots

Physical & Environmental
Width 17.3 in (439.42 mm)
Depth 22.3 in (566.42 mm)
Height 1.72 in (43.7 mm)
Operating Temperature (Min) 0°C (32°F)
Operating Temperature (Max) 40°C (104°F)
Storage Temperature (Min) -40°C (-40°F)
Storage Temperature (Max) 70°C (158°F)
Operating Humidity 10% to 85% (non-condensing)
Non-operating Humidity 5% to 93% (non-condensing)
Cooling Front-to-back airflow
Acoustic Noise 71.5 dBA

Cloud Management & Licensing
Remote Management Protocol SNMP v1, v2c, v3; CLI; Cisco DCNM; HTTP/HTTPS
Out-of-Band Management Dedicated 10/100/1000 Ethernet management port
CLI Access Yes
Included Management Software Cisco Data Center Network Manager (DCNM)
Licensing Model Port activation and feature-based licensing
