Products Network Stuff IBM SAN48C-6 32G FC Switch ...

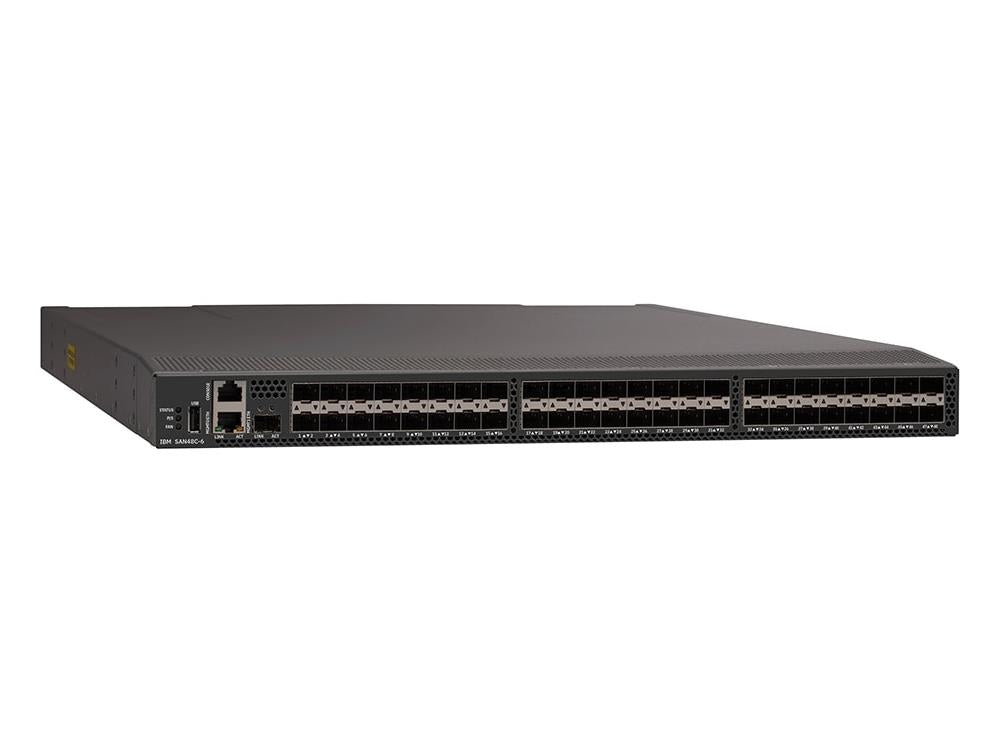

IBM SAN48C-6 32G FC Switch with 24 Optics, 48-Port, 1RU

VENDOR: CISCO Mfg Part#: 02JD726
1 3
Photo is for illustration purposes only. Actual product may be different.
$15,287.00
$15,287.00
Sale Sold out
MSRP: $46,132.00
Shipping calculated at checkout.
  • 48 x 32G Fibre Channel ports for high-bandwidth SAN connectivity
  • Includes 24 pre-installed 32G optics for plug-and-play deployment
  • 1RU form factor enables compact, dense rack integration
  • Supports SNMP for streamlined remote management and monitoring
  • Connectivity via Fibre Channel, RJ-45, RS-232, and USB interfaces
  • Operates within 0°C to 40°C range and supports TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for SAN consolidation to reduce total cost of ownership (TCO)
  • Includes 24 optics, providing immediate 32G connectivity with no additional configuration
  • Compact 1RU design saves rack space while delivering high port density

Product Overview

The IBM SAN48C-6 is a 48-port, 32G Fibre Channel switch in a compact 1RU form factor, ideal for dense SAN environments. It includes 24 pre-installed 32G optics and delivers 32 Gbps data transfer. Interface options span Fibre Channel, RJ-45, RS-232, and USB, with SNMP support for efficient remote management. Compatible with voltage ranges of 100–240 VAC via a 650W power supply, it's TAA-compliant and designed for operation in varied environmental conditions, making it a robust solution for enterprise data centers.

Specifications

Product Overview
Product Type Fibre Channel Switch
Model SAN48C-6
Form Factor 1RU
Connectivity Technology Wired
Included Optics 24 x 32G SFP+
Total Port Count 48 (Fibre Channel) + 4 (Ethernet/management)
Data Transfer Rate 32 Gbps per port
Power Supply Type Hot-swappable, redundant
Power Consumption 650 W (maximum)
Power Requirements 100–240 VAC
Management Features CLI, SNMP, SSH, HTTP(S), Cisco Data Center Network Manager (DCNM)

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, DCNM
Cloud Monitoring Support Cisco Data Center Network Manager (DCNM)
License Model Base license included; additional licenses required for advanced features
Management Protocols SNMP v1/v2/v3, Telnet, SSH, HTTP/HTTPS

Physical & Environmental
Width 17.3 in (439.4 mm)
Depth 22.3 in (566.4 mm)
Height 1.72 in (43.7 mm)
Weight Approximately 18.0 lbs (8.2 kg)
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity Range 5% to 85% (non-condensing)
Acoustic Noise Level 65 dBA at 23°C

Interfaces
Fibre Channel Ports 48 x 32-Gbps SFP+ ports
Management Interfaces 1 x RJ-45 Ethernet, 1 x RS-232 console port
USB Ports 1 x USB 2.0
Supported SFP Modules SFP-32G-SW, SFP-32G-LW and compatible Cisco optics
Data Link Protocols Fibre Channel, Gigabit Ethernet (for management)

Advanced Security Features
Authentication Methods RADIUS, TACACS+, LDAP
Access Control Role-Based Access Control (RBAC)
Security Protocols Secure Boot, SFTP, SNMPv3, SSHv2
Port Security Yes

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications RoHS, NEBS Level 3, UL, CE, FCC Class A, ICES-003
Environmental Standards RoHS, WEEE
