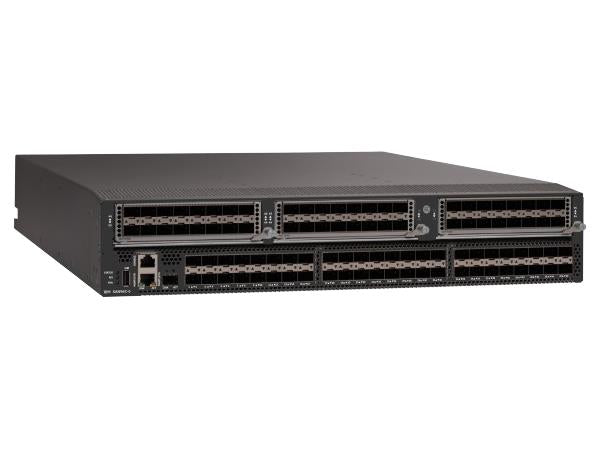

IBM SAN96C-6 32G 96-Port FC Fabric Switch

VENDOR: CISCO Mfg Part#: 02JD730
1 1
Photo is for illustration purposes only. Actual product may be different.
$38,495.00
$38,495.00
Sale Sold out
MSRP: $116,170.00
Shipping calculated at checkout.
  • 96 SFP+ Fibre Channel ports with 32 Gbps data rates
  • 1RU form factor with 600W power supply support
  • Remote management via SSH, SNMP v3, HTTPS
  • Security protocols: AES encryption, RADIUS/TACACS+ authentication
  • LED status indicators for real-time monitoring
  • Supports operating temperatures between 0°C and 40°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High port density and 32 Gbps throughput make it ideal for enterprise storage scalability.
  • Advanced security and management protocols enable secure, remote operability in mission-critical use cases.
  • Compact 1RU design with robust power features maximizes space and energy efficiency in modern data centers.

Product Overview

The IBM SAN96C-6 32G 96-Port FC Fabric Switch is an advanced enterprise-class solution built for high-speed storage area networks. With support for 96 SFP+ Fibre Channel ports and a 32 Gbps data transfer rate, it enables robust connectivity in mission-critical IT environments. This compact 1RU switch is ideal for data centers needing both performance and manageability.

Features include next-generation ASICs, remote management via SSH, SNMP v3, and HTTPS, and security options like AES encryption and TACACS+/RADIUS authentication. The system offers LED status indicators, dual 10/100/1000BASE-T management ports, and supports 600W redundant power input.

Designed for resilience, it works in a 0–40°C operating range and stores safely between -40 to 70°C. TAA compliant and made in Mexico, the SAN96C-6 is ideal for scalable and secure enterprise SAN deployments.

Specifications

Product Overview
Manufacturer Cisco
Model SAN96C-6
Manufacturer Part Number 02JD730
Type Fibre Channel Fabric Switch
Form Factor 1RU
Device Class Enterprise
Weight 26.01 lbs (11.8 kg)
Power Requirements 100 to 240 VAC, 600W
Redundant Power Supply Support Yes

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
Safety Compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1
EMC Standards FCC Part 15 Class A, EN 55032 Class A
Environmental Standards RoHS compliant
Certifications CE, CSA, TUV, VCCI, BSMI

Advanced Security Features
Encryption Support AES-256
Authentication Methods RADIUS, TACACS+
Role-Based Access Control (RBAC) Supported
Secure Boot Yes
Digitally Signed Firmware Yes

Interfaces
Fibre Channel Ports 96 x SFP+ Ports (32Gb FC)
Total Ports 100
10/100/1000BASE-T Management Ports 2
USB Ports 1 x USB 2.0 Type-A
RS-232 Console Ports 1 x RJ-45
Interface Types Fibre Channel, Ethernet, RS-232, USB
Data Transfer Rate 32 Gbps per port
Switch Fabric Bandwidth 3.2 Tbps
System Throughput 2.4 billion frames per second

Physical & Environmental
Width 17.3 in (439.42 mm)
Depth 22.3 in (566.42 mm)
Height 1.72 in (43.7 mm)
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Operating Humidity Range 10% – 90% (non-condensing)
Storage Humidity Range 5% – 93% (non-condensing)
Heat Dissipation 2050 BTU/hr (typical)
Cooling Front-to-back airflow

Cloud Management & Licensing
Management Interfaces SSH, SNMP v3, HTTPS, CLI
Out-of-Band Management Yes
Supported Management Software Cisco Data Center Network Manager (DCNM)
Cloud Management Support Optional via DCNM
Licensing Model Cisco NX-OS based licensing
Included Licenses Base switch license included
