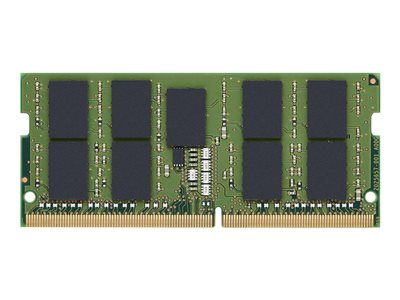

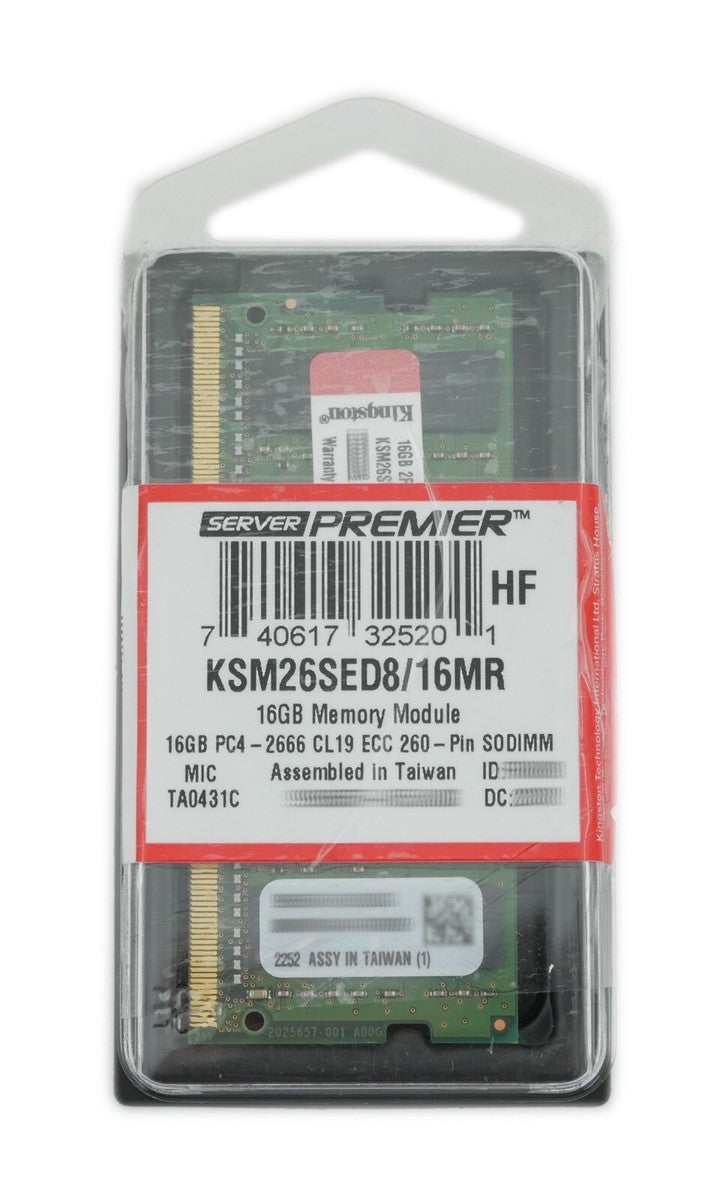

Kingston 16GB DDR4 2666MHz ECC SO-DIMM CL19 (KSM26SED8/16MR)

VENDOR: KINGSTON Mfg Part#: KSM26SED8/16MR UPC#: 740617325201
1 3
Photo is for illustration purposes only. Actual product may be different.
$92.00
$92.00
Sale Sold out
MSRP: $135.00
Shipping calculated at checkout.
  • 16GB DDR4 SDRAM module operating at 2666 MHz (PC4-21300)
  • ECC (Error-Correcting Code) support for improved data integrity
  • CL19 latency with dual-rank configuration for efficient performance
  • SO-DIMM 260-pin form factor for compact system integration
  • Low 1.2V operating voltage to reduce power consumption
  • Compliant with RoHS, Halogen-free, and JEDEC standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for server and embedded system environments requiring ECC and low power operation
  • Backed by Kingston's limited lifetime warranty for peace of mind and long lifecycle deployment
  • Offers energy-efficient performance without compromising on data integrity or reliability

Product Overview

The Kingston 16GB DDR4 SO-DIMM (KSM26SED8/16MR) is purpose-built for high-performance computing systems that demand error-free data integrity and consistent operation. Operating at 2666MHz (PC4-21300), this unbuffered ECC memory module is ideal for server-class deployments and professional workstation builds. Utilizing a dual-rank configuration and CL19 latency (19-19-19), it ensures optimized throughput and quick response times for demanding workloads.

With support for ECC, On-Die Termination (ODT), and Serial Presence Detect (SPD), the module promotes robust system stability. Featuring 2048 x 72 module configuration and 1024 x 8 chip organization, the module satisfies critical server DIMM standards while remaining compliant with RoHS, Halogen-free, and JEDEC certifications. Additionally, it features a gold-plated connector for enhanced signal integrity and durability, while its low 1.2V power consumption contributes to energy efficiency.

The module’s compact SO-DIMM 260-pin form factor facilitates versatile compatibility in space-constrained server or embedded systems. Covered by Kingston’s limited lifetime warranty (10 years in Russia), it provides a reliable, standards-compliant solution backed by a well-established manufacturer commitment to quality and support.

Specifications

Product Overview
Manufacturer Kingston
Product Type Memory Module
Part Number KSM26SED8/16MR
Memory Capacity 16 GB
Memory Technology DDR4 SDRAM
Form Factor SO-DIMM 260-pin
Rank Dual Rank
Chip Organization 1024 x 8
Module Configuration 2048 x 72
Latency Timings CL19 (19-19-19)
Voltage 1.2 V
Lead Plating Gold
Warranty Limited lifetime warranty (10 years in Russia)
Upgrade Type Generic

Physical & Environmental
Width 2.7 in
Depth 0.1 in
Height 1.2 in
Module Height 1.18 in
Heat Spreader

Cloud Management & Licensing
License Included
Remote Management

Interfaces
Interface Type DDR4 SDRAM
Data Transfer Rate 2666 MHz (PC4-21300)
Pin Count 260-pin
SPD (Serial Presence Detect) Yes
On-Die Termination (ODT) Yes
Memory Banks Sixteen banks
Buffered/Unbuffered Unbuffered

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications RoHS, Halogen-free, JEDEC
UPC 740617325201

Advanced Security Features
ECC Support Yes (Error-Correcting Code)
Parity Support
Security Features Data Integrity Protection via ECC
