| Manufacturer | Kingston |
| Manufacturer Part Number | KTH-PL432D8/32G |
| Product Type | Memory module |
| Type | DRAM memory module |
| Technology | DDR4 SDRAM |
| Capacity | 32 GB |
| Form Factor | DIMM 288-pin |
| Chips Organization | X8 |
| Feature Set | Registered, ECC, Dual Rank |
| Upgrade Type | System specific |
| Designed For | HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325/DL385 Gen10 Plus series |
| UPC | 740617314830 |

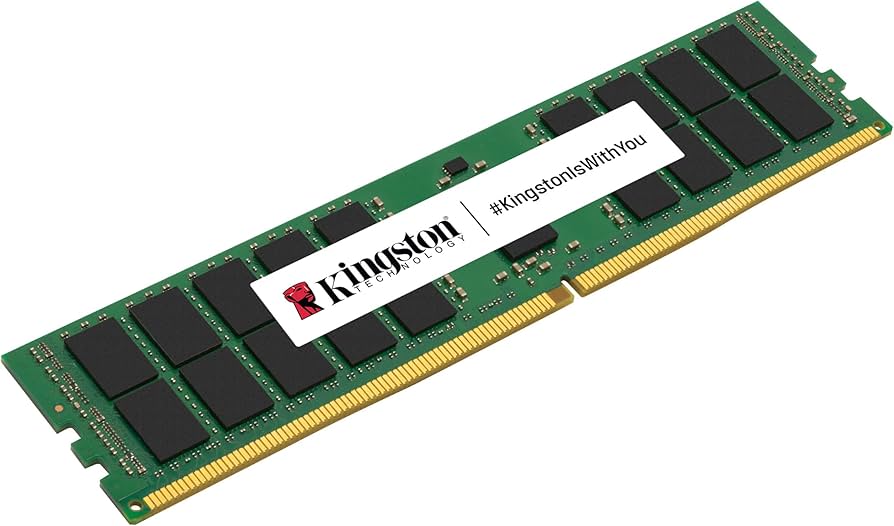

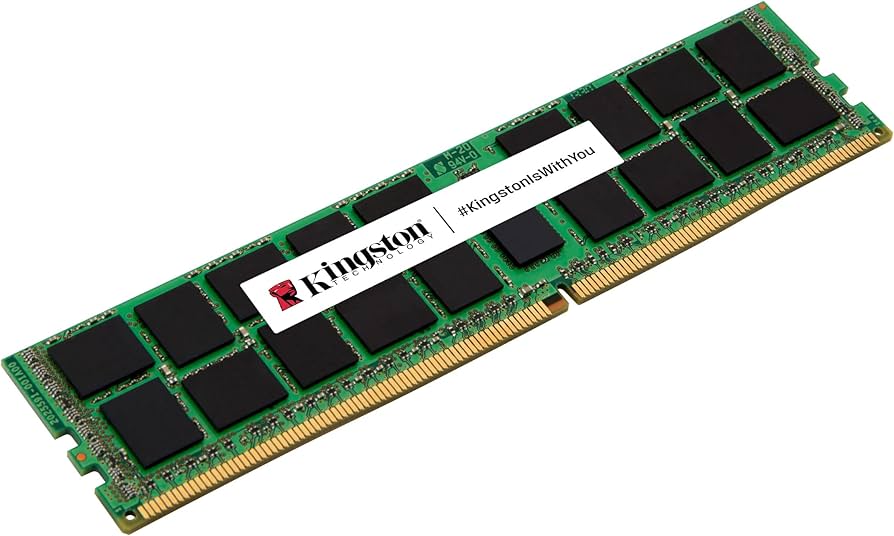

Kingston 32GB DDR4-3200MHz ECC Registered DIMM Module
Photo is for illustration purposes only. Actual product may be different.
Regular price
$185.00
Regular price
Sale price
$185.00
Unit price
per
MSRP: $274.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 32 GB DDR4 SDRAM capacity with 288-pin DIMM form factor
- ECC (error-correcting code) functionality for data integrity
- Operates at 3200 MHz (PC4-25600) speed with CL22 latency
- Dual-rank, registered module with x8 chip organization
- 1.2V power requirement for optimized energy efficiency
- Designed for compatibility with HPE ProLiant Gen10 Plus and Nimble Storage systems
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Highly compatible with HPE enterprise storage and compute platforms, maximizing deployment efficiency
- Includes ECC technology and registered architecture to ensure robust data reliability in mission-critical applications
- Backed by a limited lifetime warranty, reducing total cost of ownership over long-term IT cycles
Product Overview
The Kingston 32GB DDR4-3200MHz ECC Registered DIMM Module (KTH-PL432D8/32G) is built for enterprise-grade performance and reliability. Operating at 3200 MHz with ECC error correction, this dual-rank module delivers robust throughput for high-availability systems. Featuring a 288-pin DIMM form factor and 1.2V power efficiency, it supports optimal thermal and power profiles in server environments. It is purpose-built for HPE ProLiant and Nimble Storage architectures and includes a limited lifetime warranty, ensuring long-term value.
Specifications
Product Overview
Product Power Requirements
| Voltage | 1.2 V |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliance | Yes |
| RoHS Compliance | Yes |
| Halogen Free | Yes |
| JEDEC Compliance | Yes |
Advanced Security Features
| Error Checking | ECC (Error-Correcting Code) |
| Chipkill ECC Support | No |
| Advanced Memory Protection |
Interfaces
| Memory Interface | DDR4 |
| Pin Count | 288-pin |
| Data Transfer Rate | 3200 MHz (PC4-25600) |
| Latency Timings | CL22 |
Physical & Environmental
| Module Type | DIMM |
| Physical Layout | X8 |
| PCB Layers | |
| Heat Spreader | No |
| Operating Temperature | 0°C to 85°C |
| Storage Temperature | -55°C to 100°C |
| Humidity (non-condensing) | 10% to 90% |
| Module Dimensions (L x H) | 133.35 mm x 31.25 mm |
| Weight | Approx. 30 g |
Cloud Management & Licensing
| Remote Management Capability | |
| Bundled Licensing |
Warranty & Support
| Warranty | Limited lifetime warranty (10 years in Russia) |
| Service & Support | Limited lifetime warranty |
