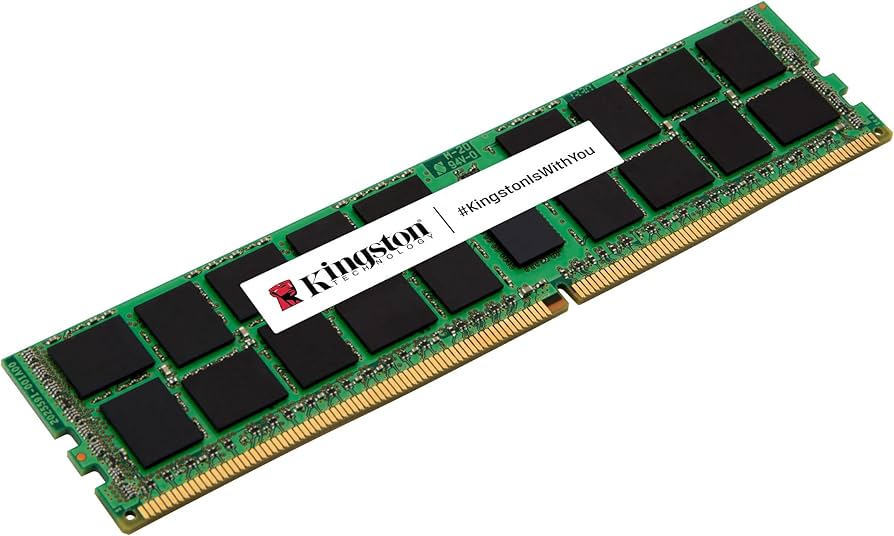

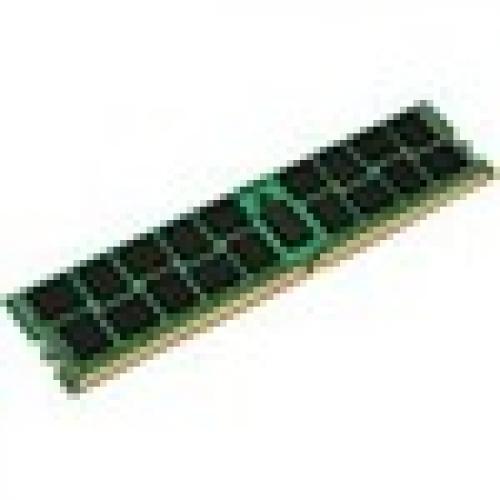

Kingston 32GB DDR4-3200MHz Reg ECC Module KTH-PL432/32G

VENDOR: KINGSTON Mfg Part#: KTH-PL432/32G UPC#: 740617314847
1 3
Photo is for illustration purposes only. Actual product may be different.
$185.00
$185.00
Sale Sold out
MSRP: $275.00
Shipping calculated at checkout.
  • 32GB DDR4 memory capacity for high-performance systems
  • 3200MHz data transfer rate for reduced latency
  • Registered (RDIMM) ECC module for enhanced stability
  • TAA compliant for government and enterprise procurement
  • Manufactured in Taiwan, ensuring consistent quality

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for stability and uptime in data centers and critical enterprise environments via ECC and RDIMM architecture
  • TAA compliance makes it suitable for government agencies requiring procurement-certified components
  • Built by Kingston and manufactured in Taiwan, assuring buyers of reliable production standards and long-term performance

Product Overview

The Kingston 32GB DDR4-3200MHz Registered ECC Module (KTH-PL432/32G) is specifically engineered for enterprise servers and professional workstations. With ECC and registered architecture, it ensures system stability while reducing error rates. This module supports a high-speed 3200MHz DDR4 interface for low-latency data transfers. Its TAA compliance meets procurement standards for government use. Manufactured in Taiwan, it reflects stringent quality control suitable for high-availability applications.

Specifications

Product Overview
Type DDR4 Registered ECC Memory Module
Form Factor 288-pin DIMM
Module Capacity 32GB
Memory Speed 3200MHz (PC4-25600)
CAS Latency CL22
Voltage 1.2V
Rank Dual Rank
Error Checking ECC (Error-Correcting Code)
Registered/Buffered Registered (buffered)
Memory Architecture x8 DRAM
Compatible Systems Servers and workstations supporting DDR4 RDIMM ECC
Power Requirements Standard DDR4 1.2V power supply

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
JEDEC Standard Yes
Halogen Free Yes
CE Certified Yes
UL Certified Yes
WEEE Compliant Yes

Advanced Security Features

Interfaces
Interface Type DDR4 SDRAM
Pin Count 288 pins
Max Data Transfer Rate 25600 MB/s
Bus Type PC4-25600

Physical & Environmental
Dimensions (L x H) 133.35mm x 31.25mm
Heat Spreader No
Operating Temperature 0°C to 85°C
Storage Temperature -55°C to 100°C
Humidity (Operating) 10% to 85% RH (non-condensing)
Humidity (Storage) 5% to 95% RH (non-condensing)
