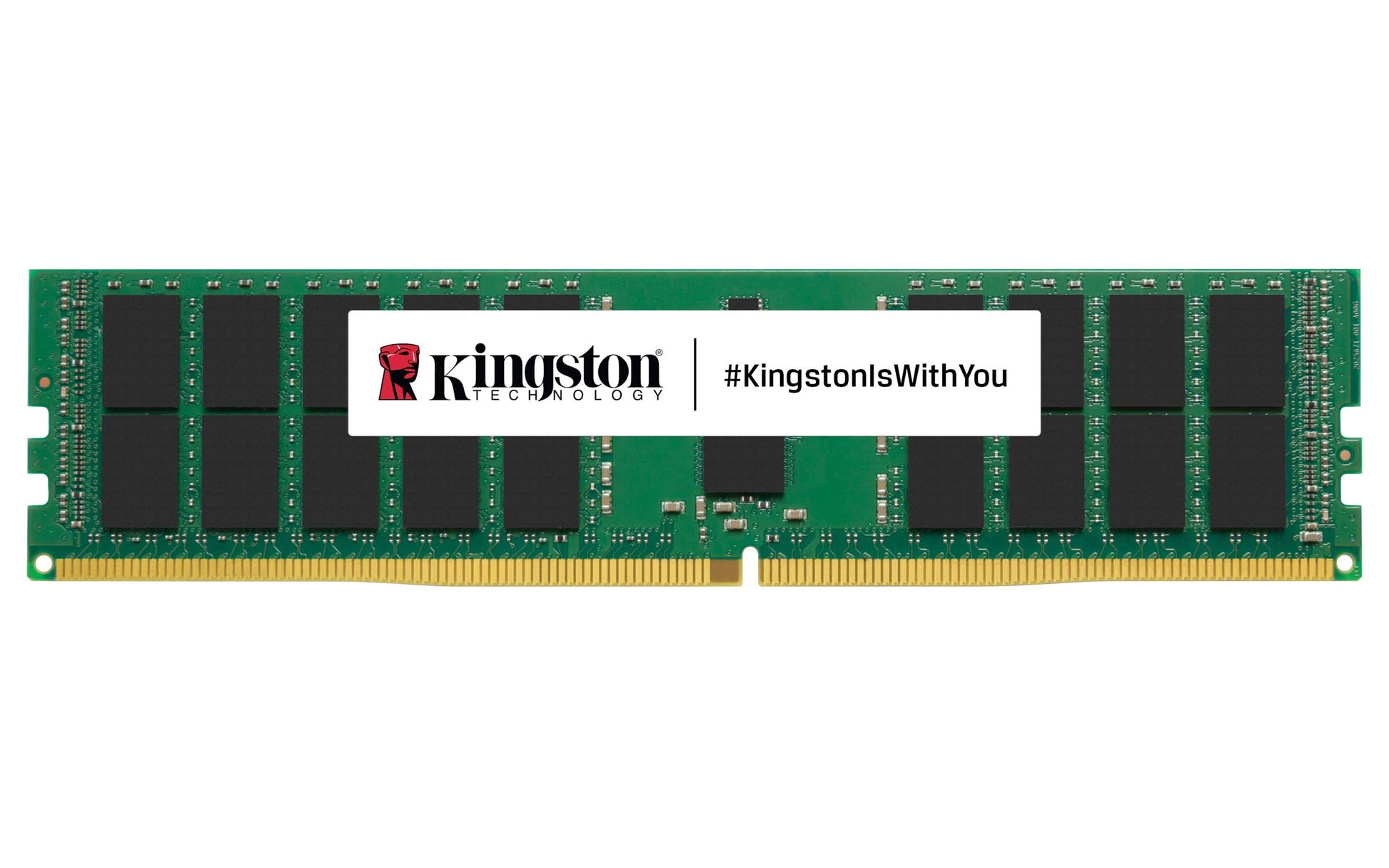

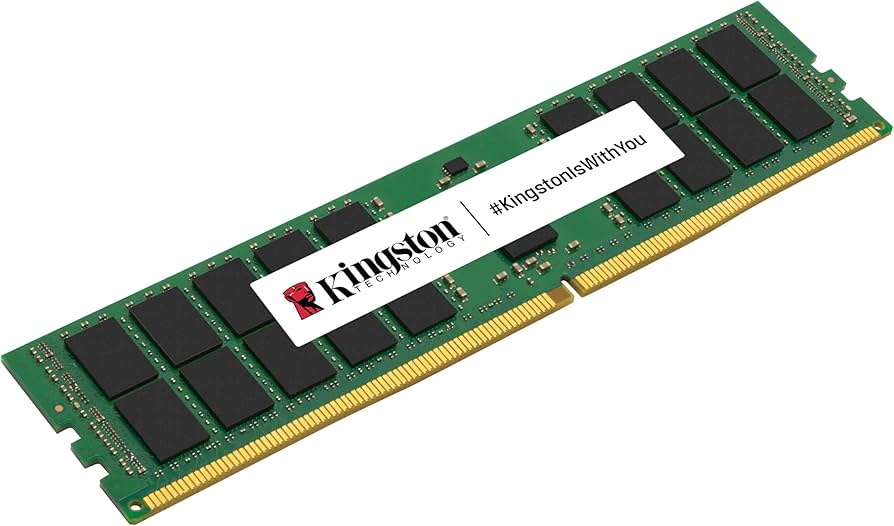

Kingston 32GB DDR4 ECC Reg 3200MT/s CL22 DIMM 2Rx8

VENDOR: KINGSTON Mfg Part#: KSM32RD8/32MFR UPC#: 740617328738
1 3
Photo is for illustration purposes only. Actual product may be different.
$180.00
$180.00
Sale Sold out
MSRP: $269.00
Shipping calculated at checkout.
  • 32GB DDR4 ECC Registered memory module
  • Operating speed of 3200MT/s with CL22 latency
  • 2Rx8 configuration with Micron F DRAM
  • TAA compliant for government and federal use
  • Manufactured in Taiwan for controlled quality standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • ECC Registered design ensures data integrity needed for mission-critical computing.
  • TAA compliance qualifies the module for use in government-regulated environments.
  • Manufactured by Kingston using Micron F components for trusted enterprise reliability.

Product Overview

The Kingston KSM32RD8/32MFR is a 32GB DDR4 ECC Registered DIMM designed for high-performance enterprise environments. With a data rate of 3200MT/s and CL22 latency, it supports fast memory operations while maintaining data integrity through ECC. Its 2Rx8 configuration and use of Micron F DRAM components reflect quality and compatibility. TAA compliance and manufacturing in Taiwan further affirm its position for use in regulated sectors and mission-critical applications.

Specifications

Product Overview
Type DDR4 ECC Registered DIMM
Memory Capacity 32GB
Memory Speed 3200MT/s
CAS Latency CL22
Rank 2Rx8
DRAM Technology Micron F DRAM
Module Configuration 2Rx8
Form Factor UDIMM (DIMM)
Buffering Registered (Buffered)
Error Correction ECC
Voltage 1.2V
Pins 288-pin
Component Density x8
Power Requirements Standard DDR4 1.2V
Heat Spreader No

Physical & Environmental
Module Height 31.25 mm
Operating Temperature 0°C to 85°C
Storage Temperature -55°C to 100°C
Relative Humidity (Operating) 10% to 90% (non-condensing)
Relative Humidity (Storage) 5% to 95% (non-condensing)

Compatibility
Compatible Systems Servers and Workstations supporting DDR4 ECC Registered DIMMs
Intel Platform Support Intel Xeon Scalable (3rd Gen and compatible)
AMD Platform Support AMD EPYC (Rome/Milan series)

Identification & Packaging
Manufacturer Part Number KSM32RD8/32MFR
UPC 740617328738

Interfaces
Memory Interface DDR4 SDRAM
Data Transfer Rate 3200 MT/s

Compliance & Origin
Compliance Standard JEDEC
TAA Compliant Yes
RoHS Compliant Yes
Country of Origin Taiwan
Halogen Free Yes

Advanced Features
On-Die Termination Yes
PCB Layers 10-layer PCB for signal integrity
SPD (Serial Presence Detect) Yes
Internal Thermal Sensor Yes
