Products Memory, Storage and Components Kingston 32GB DDR5-4800 ECC...

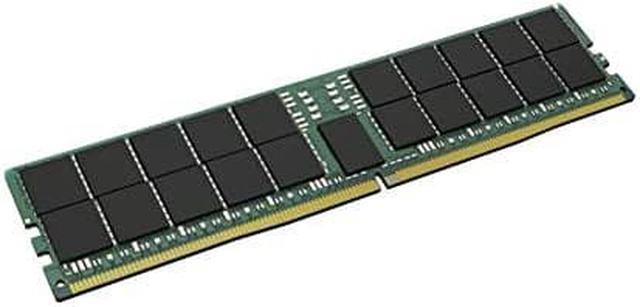

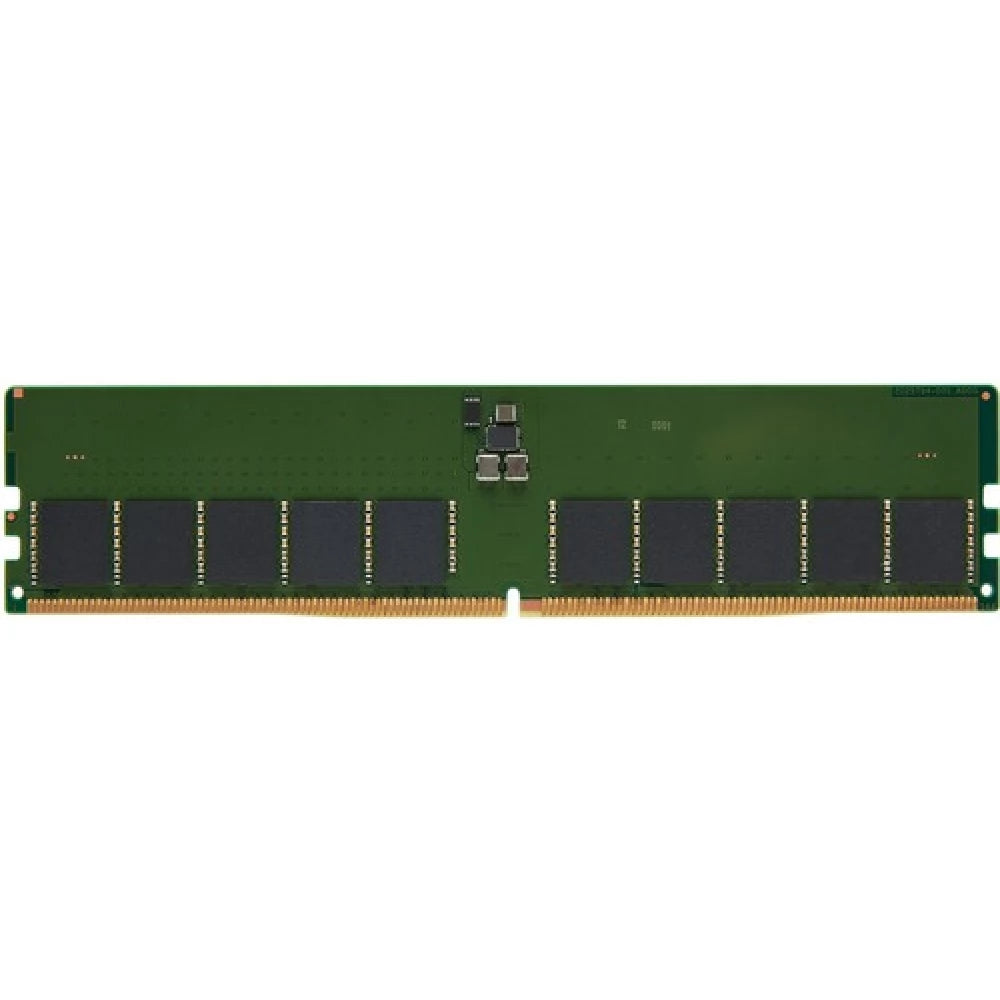

Kingston 32GB DDR5-4800 ECC DIMM CL40 (KTH-PL548E-32G)

VENDOR: KINGSTON Mfg Part#: KTH-PL548E-32G UPC#: 740617334425
1 2
Photo is for illustration purposes only. Actual product may be different.
$263.00
$263.00
Sale Sold out
MSRP: $384.00
Shipping calculated at checkout.
  • 32 GB DDR5 DRAM module with error correction capability (ECC)
  • 4800 MHz memory speed with CL40 latency for optimal throughput
  • 288-pin DIMM form factor supports modern server and workstation platforms
  • Low 1.1V supply voltage for efficient power consumption
  • TAA compliant and manufactured in Taiwan for government procurement
  • Backed by lifetime warranty from manufacturer

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • High data integrity and system stability through ECC feature make it ideal for mission-critical applications.
  • Superior performance with 4800 MHz DDR5 speed and CL40 latency meets the needs of high-throughput computing.
  • TAA compliance and lifetime warranty make it a smart investment for government and enterprise IT environments.

Product Overview

The Kingston 32GB DDR5-4800MT/s ECC Module (KTH-PL548E-32G) meets the demands of high-performance enterprise computing. It utilizes DDR5 technology at 4800 MHz with CL40 latency and an efficient 1.1V power profile. Its built-in ECC capability ensures data integrity for mission-critical operations. The 288-pin DIMM layout supports compatibility with contemporary workstation and server motherboards. With TAA compliance and lifetime warranty, it's a dependable solution for government and enterprise IT deployments.

Specifications

Product Overview
Type DDR5 SDRAM Memory Module
Form Factor 288-pin DIMM
Weight Approx. 18 grams
Power Requirements 1.1 V
Module Capacity 32 GB
Data Integrity Check ECC (Error-Correcting Code)
CAS Latency (CL) CL40
Memory Rank 1R (Single Rank)
Module Configuration 4096M x 72
Component Composition x8 DRAM

Physical & Environmental
Length 133.35 mm
Height 31.25 mm
Depth 1.23 mm
Operating Temperature (Min) 0°C
Operating Temperature (Max) 85°C
Storage Temperature (Min) -55°C
Storage Temperature (Max) 100°C
Humidity (non-condensing) 10% to 90%
RoHS Compliant Yes

Cloud Management & Licensing
Software Management Interface
Licensing Required
Bundled Cloud Features

Interfaces
Memory Technology DDR5 SDRAM
Interface Speed 4800 MT/s
Pin Count 288-pin
Bus Type PC5-38400
Voltage Interface 1.1 V
Module Bandwidth 38.4 GB/s
Memory Chip Organization Dual Channel
Buffered/Unbuffered Unbuffered

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Compliance Standards JEDEC
Environmental Certification REACH

Advanced Security Features
ECC Type On-die ECC + Side-band ECC
Error Detection & Correction Yes
