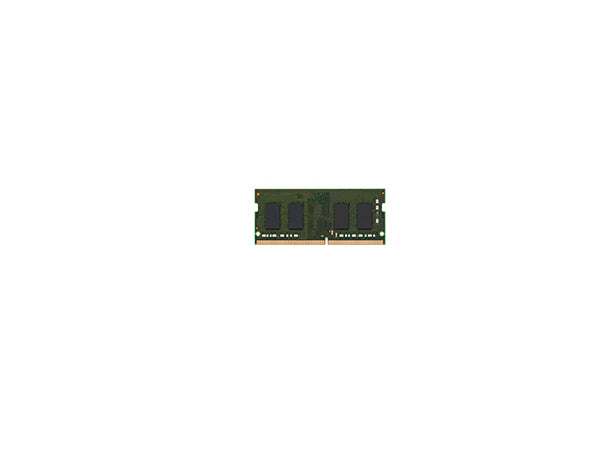

Kingston 4GB DDR4 3200MHz CL22 SO-DIMM 1Rx16

VENDOR: KINGSTON Mfg Part#: KVR32S22S6/4 UPC#: 740617296105
1 3
Photo is for illustration purposes only. Actual product may be different.
$23.00
$23.00
Sale Sold out
MSRP: $24.00
Shipping calculated at checkout.
  • - 4GB DDR4 SDRAM module with 3200 MHz memory speed for efficient performance
  • - 260-pin SO-DIMM form factor suitable for notebooks and compact systems
  • - 1Rx16 configuration using four 512Mx16 FBGA chips
  • - CAS latency of CL22 for predictable data access timing
  • - Operates at low 1.2V supply for reduced power consumption
  • - RoHS compliant and TAA approved, manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Compatible 260-pin SO-DIMM format makes it ideal for laptops and small form factor PCs.
  • Efficient 1.2V operation helps reduce overall system power consumption and heat output.
  • TAA compliance and reliable build quality from Kingston make it suitable for government and commercial procurement.

Product Overview

The Kingston KVR32S22S6/4 is a 4GB DDR4-3200MHz SO-DIMM memory upgrade designed for notebooks and compact PCs. With a CL22 latency and 1Rx16 configuration, it ensures efficient and stable performance. Built using four 512Mx16 FBGA ICs, the module supports low-voltage 1.2V operation in space-constrained environments. At 69.6mm wide and 2.45mm deep, it complies with RoHS and TAA standards and is manufactured in Taiwan. Ideal for users demanding reliability and cost-efficiency in professional and commercial computing.

Specifications

Product Overview
Type Unbuffered DDR4 SDRAM Memory Module
Form Factor SO-DIMM 260-pin
Memory Capacity 4 GB
Memory Technology DDR4
Memory Speed 3200 MHz
Rank 1Rx16
CAS Latency (CL) CL22
DRAM IC Configuration 512M x 16-bit FBGA (x4)
Buffered/Registered Unbuffered
ECC Support Non-ECC
Power Requirements Standard 1.2V
Module Configuration 512M x 64-bit
Weight Approx. 8 g

Physical & Environmental
Width 69.6 mm
Depth 2.45 mm
Height 30 mm
Operating Temperature (Min) 0°C
Operating Temperature (Max) 85°C
Storage Temperature (Min) -55°C
Storage Temperature (Max) 100°C
Heat Spreaders No

Cloud Management & Licensing
Cloud Management

Interfaces
Interface Type DDR4 SDRAM
Connector Type 260-pin SO-DIMM
Data Bus 64-bit
Module Bandwidth PC4-25600
Burst Length 8

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin Taiwan
JEDEC Standard Compliance Yes
Lead-Free Status Yes
REACH Compliance Yes
