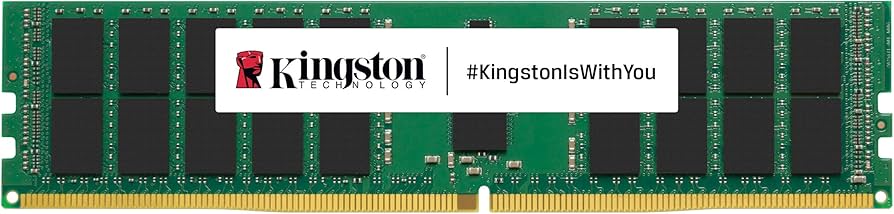

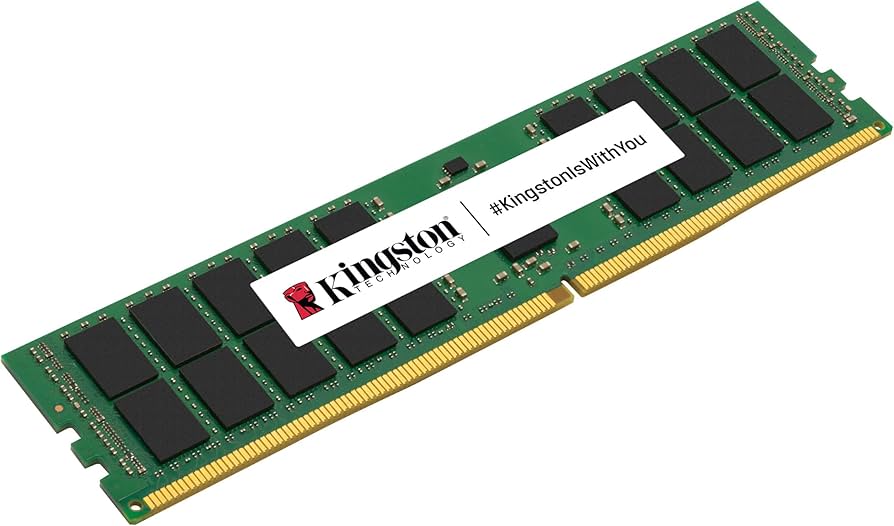

Kingston 8GB DDR4 3200MHz ECC Reg CL22 DIMM (KSM32RS8/8MRR)

VENDOR: KINGSTON Mfg Part#: KSM32RS8/8MRR UPC#: 740617324976
1 3
Photo is for illustration purposes only. Actual product may be different.
$55.00
$55.00
Sale Sold out
MSRP: $82.00
Shipping calculated at checkout.
  • 8GB DDR4 SDRAM module with DIMM 288-pin form factor
  • Operates at 3200 MHz (PC4-25600) with CL22 latency
  • ECC and registered with parity for data reliability
  • Includes temperature monitoring, Data CRC, and On-Die Termination
  • Low power consumption at 1.2V with gold-plated contacts
  • TAA compliant with JEDEC and RoHS standards; Limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise servers requiring ECC Registered memory to ensure data integrity under heavy workloads.
  • Designed to reduce operational costs with low 1.2V power draw and temperature monitoring for better thermal control.
  • JEDEC-compliant and TAA-certified, providing compatibility for global and government IT deployments.

Product Overview

The Kingston KSM32RS8/8MRR is a high-performance 8GB DDR4 ECC Registered memory module operating at 3200 MHz (PC4-25600) with CL22 latency, designed for enterprise-class server applications. Featuring ECC and parity for robust data integrity, it incorporates advanced technologies such as On-Die Termination (ODT), Serial Presence Detect (SPD), and Data CRC, ensuring system reliability and configurability. The 1Rx8 Micron chips are housed in a DIMM 288-pin form factor with low voltage (1.2V) operation and gold-plated pins for secure connectivity and durability. TAA-compliant and built to JEDEC standards, this module includes temperature monitoring and is backed by a limited lifetime warranty, making it ideal for mission-critical deployments.

Specifications

Product Overview
Manufacturer Kingston
Model KSM32RS8/8MRR
Product Type Memory module
Type DRAM memory module
Technology DDR4 SDRAM
Form Factor DIMM 288-pin
Module Height 1.23 in
Capacity 8 GB
Rank Single Rank (1Rx8)
Voltage 1.2 V
Power Requirements Low Voltage
Lead Plating Gold
Warranty Limited lifetime warranty (Russia - 10 years)

Wireless Features

Compliance & Origin
Compliance Standards RoHS, JEDEC
Country of Origin Taiwan
TAA Compliant Yes

Advanced Security Features
ECC Support Yes
Parity Support Registered with parity
Data Integrity Features Data CRC, ECC
On-Die Termination (ODT) Yes
Serial Presence Detect (SPD) Yes

Interfaces
Interface DIMM 288-pin
Bus Speed 3200 MHz
Data Rate PC4-25600
Latency Timings CL22 (22-22-22)

Physical & Environmental
Width 5.2 in
Height 1.2 in
Temperature Monitoring Yes
Chips Organization x8
Bank Groups Sixteen banks

Cloud Management & Licensing

Additional Features
Feature Set Temperature monitoring, On-Die Termination (ODT), Serial Presence Detect (SPD), Single Rank, CRC Support
Upgrade Type Generic
UPC 740617324976
Family Computer Components
Subcategory 16GB
General Description Kingston Server Premier - DDR4 - module - 8 GB - DIMM 288-pin - 3200 MHz / PC4-25600 - registered with parity
