Lenovo 100GBase-SR4 QSFP28 Transceiver, 100Gbps, 7G17A03539

VENDOR: LENOVO Mfg Part#: 7G17A03539 UPC#: 889488421787
1 4

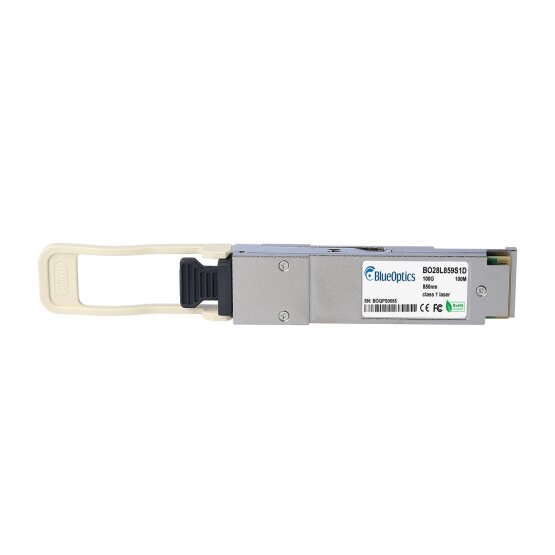

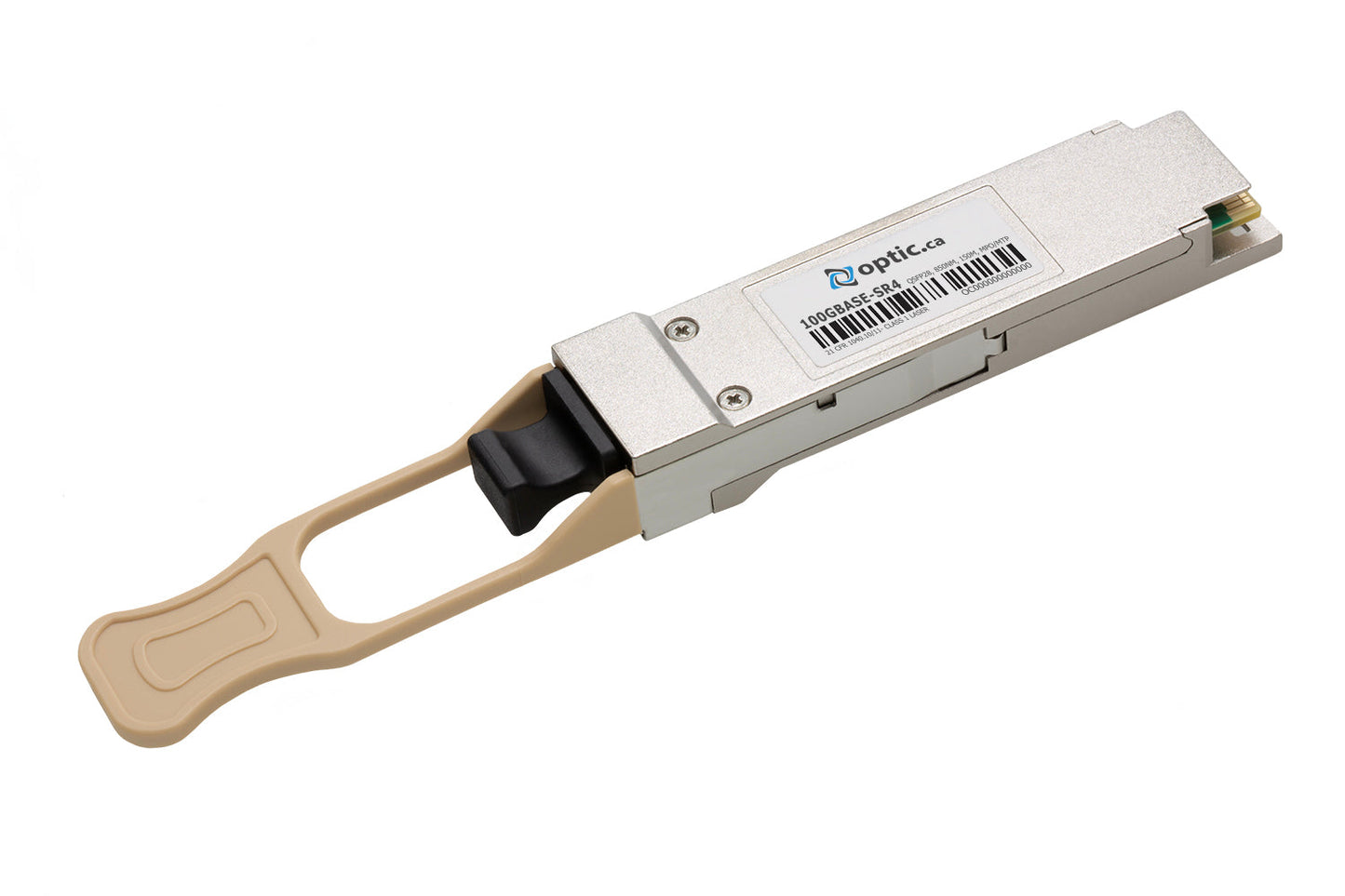

Photo is for illustration purposes only. Actual product may be different.
$1,460.00
$1,460.00
Sale Sold out
MSRP: $2,151.00
Shipping calculated at checkout.
  • 100 Gbps data transfer rate for high-performance networking
  • QSFP28 form factor enables high-density deployment
  • Supports 100 Gigabit Ethernet standard
  • TAA compliant—suitable for government and regulated use
  • Manufactured in Mexico for regional compliance
  • Designed for use in Lenovo networking ecosystems

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed 100 Gbps connectivity for demanding data environments.
  • TAA compliance ensures suitability for government and enterprise procurement.
  • QSFP28 form factor allows for dense, scalable networking deployments in data centers.

Product Overview

The Lenovo 100GBase-SR4 QSFP28 Transceiver, model 7G17A03539, is built to deliver reliable and 100 Gbps high-speed networking with a compact QSFP28 form factor. Supporting the 100 Gigabit Ethernet protocol, it is ideal for high-throughput environments including data centers and enterprise core networks. With TAA compliance and manufacture in Mexico, it is fit for regulated industries and government use. Optimized for Lenovo infrastructure, it enables efficient, scalable, and low-latency connectivity across networking hardware.

Specifications

Product Overview
Device Type Transceiver
Form Factor QSFP28
Weight 0.05 kg
Power Consumption ≤ 3.5 W

Physical & Environmental
Dimensions (W x D x H) 18.35 mm x 72 mm x 8.5 mm
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity (Operating) 5% - 85% non-condensing
MTBF >100,000 hours
Hot-swappable Yes

Cloud Management & Licensing
Compatible with Lenovo XClarity Yes
Cloud Monitoring Support No
Subscription Required No

Interfaces
Interface Type QSFP28
Data Transfer Rate 100 Gbps
Data Link Protocol 100 Gigabit Ethernet
Wavelength 850 nm
Connector Type MPO/MTP
Cable Type Multimode Fiber (MMF)
Max Cable Distance 100 m (OM4 fiber)
Transmitter Type VCSEL
Receiver Type PIN photodiode
Modulation NRZ

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, FDA (Class 1), IEC 60825-1, -2
EMC Compliance EMC Class A

Advanced Security Features
Digital Diagnostics Monitoring (DDM) Yes
Firmware Security Yes (vendor locked)
