Lenovo 2.5" 3.84TB MU SATA 5400M High-Endurance SSD

VENDOR: LENOVO Mfg Part#: 4XB7A82292 UPC#: 889488633838
1 1

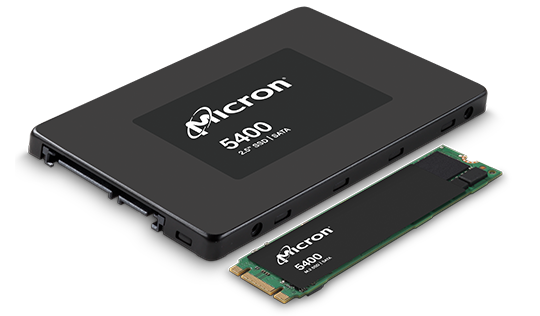

Photo is for illustration purposes only. Actual product may be different.
$6,207.00
$6,207.00
Sale Sold out
Shipping calculated at checkout.
  • 3.84 TB 2.5" SATA SSD with 6 Gb/s interface
  • Sequential read/write speeds up to 540/520 Mbps
  • Endurance rated at 3.4 DWPD over 5 years (23,827 TBW)
  • Random read/write performance up to 95,000/34,000 IOPS
  • Hot-swappable design for improved serviceability
  • MTBF of 3,000,000 hours for long-term reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Built for endurance with 3.4 DWPD capability and 23,827 TBW, ideal for high-write workloads
  • High performance throughput with 540 Mbps read and 520 Mbps write speeds for fast data access
  • Supports hot-swapping and enterprise-grade MTBF of 3 million hours, ensuring minimal downtime

Product Overview

The Lenovo 2.5" 5400M 3.84TB MU SATA HS SSD is built for enterprise environments requiring high performance and long durability. It delivers up to 540 Mbps read and 520 Mbps write speeds, and supports 95,000 random read IOPS and 34,000 random write IOPS. Offering 3.84TB of capacity, hot-swap support, and 3.4 DWPD endurance over five years, it meets the needs of intensive workloads. With a 3 million-hour MTBF and RoHS compliance, it ensures robust operational reliability.

Specifications

Product Overview
Type Enterprise SATA SSD
Form Factor 2.5"
Capacity 3.84 TB
Interface Type SATA 6 Gb/s
Product Series 5400 MAX
Manufacturer Part Number 4XB7A82292
UPC 889488633838
Flash Memory Type TLC (Triple-Level Cell)
Endurance Rating 3.4 DWPD (Drive Writes Per Day)
Total Bytes Written (TBW) 23,827 TB
Hot-Swap Support Yes
Mean Time Between Failures (MTBF) 3,000,000 hours
Power Consumption (Active) 3.8 W

Physical & Environmental
Form Factor 2.5"
Width 69.85 mm
Height 7 mm
Depth 100 mm
Weight Approx. 80 g
Operating Temperature 0°C to 70°C
Non-Operating Temperature -40°C to 85°C
Operating Humidity 5% – 95% (non-condensing)
Shock Resistance 1000G / 0.5 ms
Vibration Resistance (Operating) 2.17G RMS (5–700 Hz)

Cloud Management & Licensing
Management Interface

Interfaces
Interface SATA III (6 Gb/s)
Sequential Read Speed 540 MB/s
Sequential Write Speed 520 MB/s
Random Read (4KB) 95,000 IOPS
Random Write (4KB) 34,000 IOPS

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Inquire
Country of Origin Inquire
Certification CE, FCC, UL, TUV

Advanced Security Features
End-to-End Data Protection Yes
AES 256-bit Encryption Supported
Power Loss Protection Yes
Secure Erase Support Yes
