Lenovo 2.5 PM1733A 15.36TB RI NVMe SSD, U.3 PCIe 4.0 x4

VENDOR: LENOVO Mfg Part#: 4XB7A81954 UPC#: 889488632336
  • The Lenovo 2.5 PM1733A 15.36TB RI NVMe SSD delivers ultra-fast performance and exceptional reliability for enterprise-grade applications. Designed for Lenovo ThinkSystem servers, this SSD features a U.3 PCIe 4.0 x4 interface, read-intensive optimization, and enhanced data integrity mechanisms. It is ideal for data-heavy workloads such as virtualization, analytics, and content delivery.
1 1

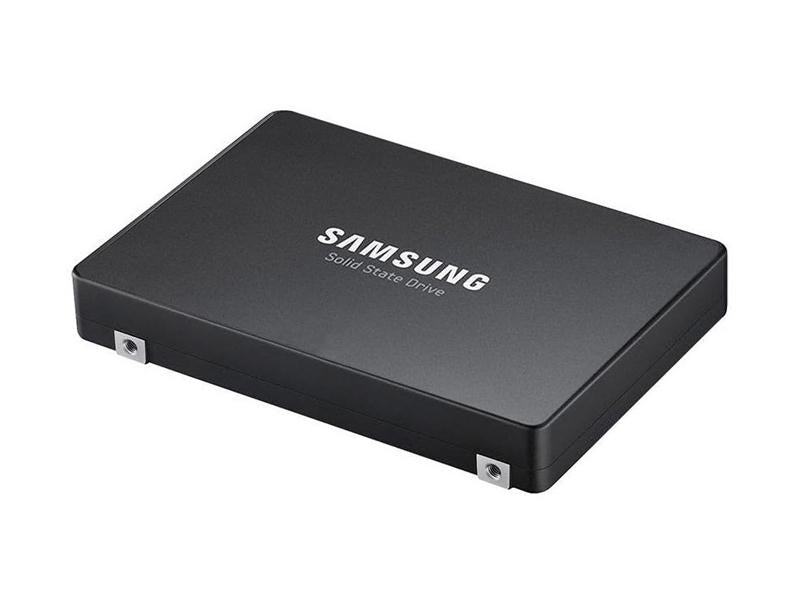

Photo is for illustration purposes only. Actual product may be different.
$51,550.00
$51,550.00
Sale Sold out
MSRP: $54,460.00
Shipping calculated at checkout.
  • 15.36TB capacity with TLC NAND for high-density storage
  • U.3 PCIe 4.0 x4 (NVMe) interface supporting up to 7500 MBps read, 4100 MBps write
  • 1.6 million IOPS (4KB read) performance and 28032 TBW endurance
  • Enterprise features: End-to-end data protection, ECC, S.M.A.R.T., power loss protection
  • Hot-swap 2.5" form factor; designed for Lenovo ThinkSystem SR635/SR655
  • 1 DWPD and 2 million hours MTBF ensure reliability in demanding environments
View full details

Key Benefits

Eye-Insights
  • High-capacity 15.36TB drive with read-intensive optimization supports large-scale data analytics with consistent performance.
  • Advanced data protection technologies including ECC, power loss protection, and S.M.A.R.T. provide enterprise-grade reliability.
  • Certified compatibility with Lenovo ThinkSystem SR635 and SR655 ensures seamless data center integration and minimal configuration issues.

Product Overview

The Lenovo 2.5 PM1733A 15.36TB Read Intensive NVMe SSD is a high-capacity solid-state drive engineered for enterprise-class performance and efficiency. Utilizing a U.3 PCIe 4.0 x4 interface, it achieves outstanding data transfer speeds with up to 7500 MBps read and 4100 MBps write throughput, along with 1.6 million IOPS for 4KB random reads. With 15.36TB of capacity and an endurance rating of 28032 TBW, it's well-suited to demanding environments requiring rapid access to large datasets.

Engineered with TLC NAND and robust features such as end-to-end data protection, advanced ECC, and power loss protection, this SSD ensures high data integrity and operational security. A 2 million hour MTBF and support for S.M.A.R.T. monitoring further contribute to its reliability in critical infrastructure deployments.

Certified for compatibility with Lenovo ThinkSystem SR635 and SR655, the drive supports major enterprise OS environments including Windows Server, RHEL, SUSE Linux, and VMware ESXi. Its hot-swap 2.5-inch form factor simplifies servicing while minimizing downtime, making it a smart investment for data centers, virtualization clusters, and hybrid cloud integrations.

Specifications

Primary Information
Model ThinkSystem PM1733a Read Intensive NVMe SSDs
Hard Drive / Size 2.5"
SSD Capacity 15.36 GB
Flash Type TLC
Hard Drive / Interface Type NVMe; PCI Express 4.0 x4
Max 4KB Random Read 1600000 IOPS
Max 4KB Random Write 170000 IOPS
SSD / Controller NVMe PCIe SSDs require a NVMe drive backplane and some form of PCIe connection to processors. PCIe connections can take the form of either an adapter (PCIe Interposer or PCIe extender/switch adapter) or simply a cable that connects to an onboard NVMe connector.
MTBF 2000000 hours
Power Consumption Operational Typical power (R/W): 19 W / 20.5 W Watt
S.M.A.R.T. Support Yes
Service & Support Type 1-year Warranty
Min Operating Temperature 0 Celsius
Max Operating Temperature 70 Celsius
Width 2.8 Inch
Depth 4.0 Inch
Height 0.6 Inch
Weight 6.7 ounce

Special Feature
COO Inquire
TAA compliance Inquire

Performance
Max Sequential Read 7500 MBps
Max Sequential Write 4100 MBps
Endurance 28032 TB(total bytes written)

UNSPSC Code
UNSPSC Code 43201830
