Lenovo 2.5IN PM1733A 30.72TB RI NVMe SSD, U.3 PCIe 4.0 x4

VENDOR: LENOVO Mfg Part#: 4XB7A81999 UPC#: 889488632343
  • Engineered for read-intensive enterprise workloads, the Lenovo 2.5IN PM1733A 30.72TB SSD offers high performance and endurance in a compact U.3 PCIe 4.0 x4 form factor. With impressive speeds up to 7,500 MBps read and 4,100 MBps write, plus advanced features like V-NAND technology and end-to-end data protection, this SSD is ideal for data center optimization. Compatible with select Lenovo ThinkSystem servers, it's a CRU-rated solution designed for maximum uptime and efficiency.
1 1

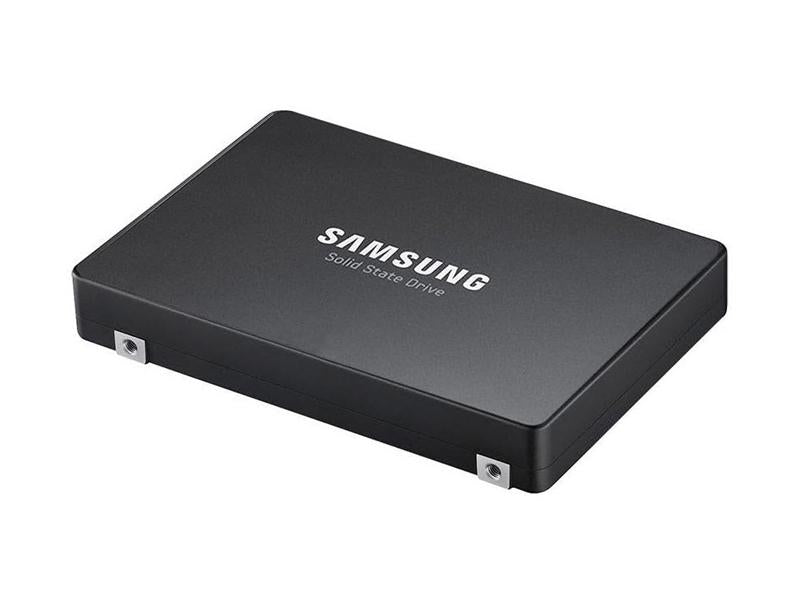

Photo is for illustration purposes only. Actual product may be different.
$102,615.00
$102,615.00
Sale Sold out
MSRP: $108,466.00
Shipping calculated at checkout.
  • 30.72TB storage capacity with triple-level cell (TLC) NAND flash technology.
  • U.3 PCIe 4.0 x4 NVMe interface for high-speed data transfer.
  • Up to 7,500 MBps read and 4,100 MBps write speeds.
  • 1.6M IOPS random read and 170K IOPS random write performance.
  • Endurance rated at 1 DWPD or 56,064 TBW with 2 million hours MTBF.
  • Advanced reliability features: ECC engine, end-to-end data protection, V-NAND, and S.M.A.R.T. monitoring.
View full details

Key Benefits

Eye-Insights
  • Designed for read-intensive workloads, maximizing performance in analytics and virtualized environments.
  • High durability with 56PBW endurance and CRU rating ensures lower TCO and easy field replacement.
  • Certified compatibility with Lenovo ThinkSystem SR635/SR655 for seamless integration and reliability.

Product Overview

The Lenovo 2.5IN PM1733A 30.72TB Read Intensive NVMe SSD, part number 4XB7A81999, is a high-capacity, high-performance solution built for enterprise data applications. Using TLC V-NAND technology and operating on a U.3 PCIe 4.0 x4 NVMe interface, it achieves 7,500 MBps read and 4,100 MBps write speeds with latency as low as 25 μs. Endurance is rated at 56064 TB with 1 DWPD, supported by features such as end-to-end data protection, advanced ECC, and S.M.A.R.T. monitoring. With MTBF of 2,000,000 hours and support for a wide range of operating systems, this hot-swappable drive is ready for intensive workloads. It's certified for Lenovo ThinkSystem SR635/SR655 models and offers CRU designation and a 1-year warranty for easy maintenance and deployment.

Specifications

Primary Information
Model ThinkSystem PM1733a Read Intensive NVMe SSDs
Hard Drive / Size 2.5"
SSD Capacity 30.72 GB
Flash Type TLC
Hard Drive / Interface Type NVMe; PCI Express 4.0 x4
Max 4KB Random Read 1600000 IOPS
Max 4KB Random Write 170000 IOPS
SSD / Controller NVMe PCIe SSDs require a NVMe drive backplane and some form of PCIe connection to processors. PCIe connections can take the form of either an adapter (PCIe Interposer or PCIe extender/switch adapter) or simply a cable that connects to an onboard NVMe connector.
MTBF 2000000 hours
Power Consumption Operational Typical power (R/W): 20 W / 21 W Watt
S.M.A.R.T. Support Yes
Width 2.8 Inch
Depth 4.0 Inch
Height 0.6 Inch
Weight 6.7 ounce
Service & Support Type 1-year Warranty
Min Operating Temperature 0 Celsius
Max Operating Temperature 70 Celsius

Special Feature
COO Inquire
TAA compliance Inquire

Performance
Max Sequential Read 7500 MBps
Max Sequential Write 4100 MBps
Endurance 56064 TB (total bytes written)

UNSPSC Code
UNSPSC Code 43201830
