Lenovo 2U24 DE4000H Network Storage Chassis, 24-Bay, 2U Rackmount

VENDOR: LENOVO Mfg Part#: 7Y75A00TWW
  • The Lenovo 2U24 DE4000H Network Storage Chassis combines high-density storage capability with enterprise-grade performance and reliability. Supporting 24 drive bays, a range of RAID levels, and dual power supplies, it is designed for demanding data environments. With Gigabit Ethernet and SFP+ connectivity, it's ideal for scalable, high-throughput applications.
  • The Lenovo 2U24 DE4000H Network Storage Chassis combines high-density storage capability with enterprise-grade performance and reliability. Supporting 24 drive bays, a range of RAID levels, and dual power supplies, it is designed for demanding data environments. With Gigabit Ethernet and SFP+ connectivity, it's ideal for scalable, high-throughput applications.
  • The Lenovo 2U24 DE4000H Network Storage Chassis combines high-density storage capability with enterprise-grade performance and reliability. Supporting 24 drive bays, a range of RAID levels, and dual power supplies, it is designed for demanding data environments. With Gigabit Ethernet and SFP+ connectivity, it's ideal for scalable, high-throughput applications.
1 3

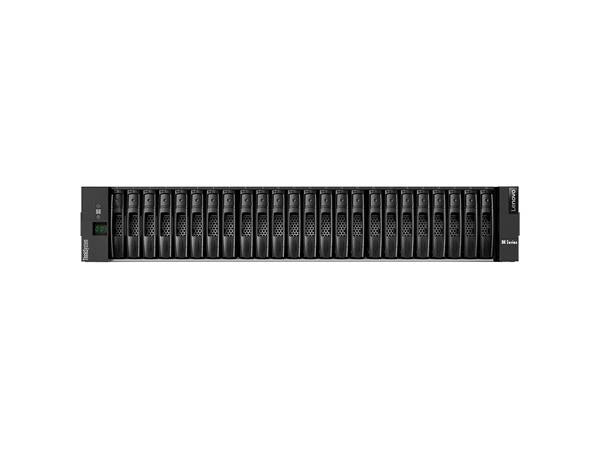

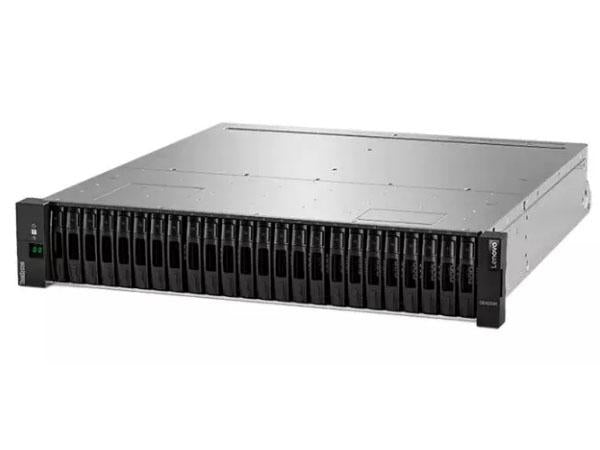

Photo is for illustration purposes only. Actual product may be different.
$37,632.00
$37,632.00
Sale Sold out
Shipping calculated at checkout.
  • 24 drive bays in 2U rackmount form factor
  • Supports RAID 0, 1, 3, 5, 6, and 10 configurations
  • SFP+ host ports for high-speed Gigabit Ethernet connectivity
  • Dual 913W power supplies for redundancy and reliability
  • Operates with variable input voltage from 100 to 240V
  • Compact dimensions: 17.7" W x 21.8" D x 3.4" H
View full details

Key Benefits

Eye-Insights
  • High-density 24-bay chassis enables scalable enterprise storage in limited rack space
  • Broad RAID level support offers flexibility for performance and data redundancy configurations
  • Redundant 913W power supplies ensure operational continuity for critical workloads

Product Overview

The Lenovo 2U24 DE4000H is a robust network storage chassis designed for enterprise and data center environments requiring high-capacity and high-availability storage solutions. Housed in a compact 2U rackmount form factor, it supports up to 24 hard drives, allowing for significant scalability in data-intensive applications. The unit integrates SFP+ host ports, providing efficient high-speed connectivity over Gigabit Ethernet, making it compatible with modern networking standards.

Highly adaptable to different storage needs, the DE4000H chassis supports RAID levels 0, 1, 3, 5, 6, and 10. This extensive RAID support offers strong data protection and performance optimization based on workload demands. To ensure operational resilience and continuous uptime, the chassis includes two redundant power supplies rated at 913 watts each, operating within a global 100–240V voltage range.

With a width of 17.7 inches, depth of 21.8 inches, and height of 3.4 inches, the enclosure is built to maximize space efficiency in standard data center racks. Ideal for virtualization, backup, or large-scale file distribution scenarios, the Lenovo 2U24 DE4000H chassis is a versatile storage foundation for business-critical IT infrastructure. Additional details such as country of origin and TAA compliance are currently unspecified.

Specifications

Primary Information
Cabinet Form Factor 2U
Storage Device Type Network Storage Server
Data Link Protocol Gigabit Ethernet
Model DE4000H

UNSPSC Code
UNSPSC Code 43202206

Storage Controller
RAID Level RAID 0, 1, 3, 5, 6, 10

Power
Power / Device Type Power Supply
Power / Installed Qty 2
Power / Voltage Required 100-240V
Power / Provided (W) 913 Watt

Special Feature
COO Inquire
TAA compliance Inquire

Storage
Hard Drive / Bays Qty 24

Expansion
Interfaces & Connections SFP+ host port serial console port 1 GbE management port 12Gb SAS x4 expansion ports Micro-USB port RJ-45

Dimensions&Miscellaneous
Width 17.7 Inch
Depth 21.8 Inch
Height 3.4 Inch
