| Product Type | Fiber Optic Transceiver Module |
| Transceiver Type | SFP+ |
| Data Rate | 16 Gbps |
| Wavelength | 1310 nm |
| Maximum Reach | 10 km |
| Fiber Type | Single-mode |
| Digital Diagnostics Monitoring (DDM/DOM) | Yes |
| Hot Swappable | Yes |
| Protocol Support | 16G Fibre Channel |
| Encryption | Brocade Secure Fabric encryption |
| Application | Data Center, SAN Extension |
| Form Factor | Plug-in module |
| Power Supply Voltage | 3.3 V |

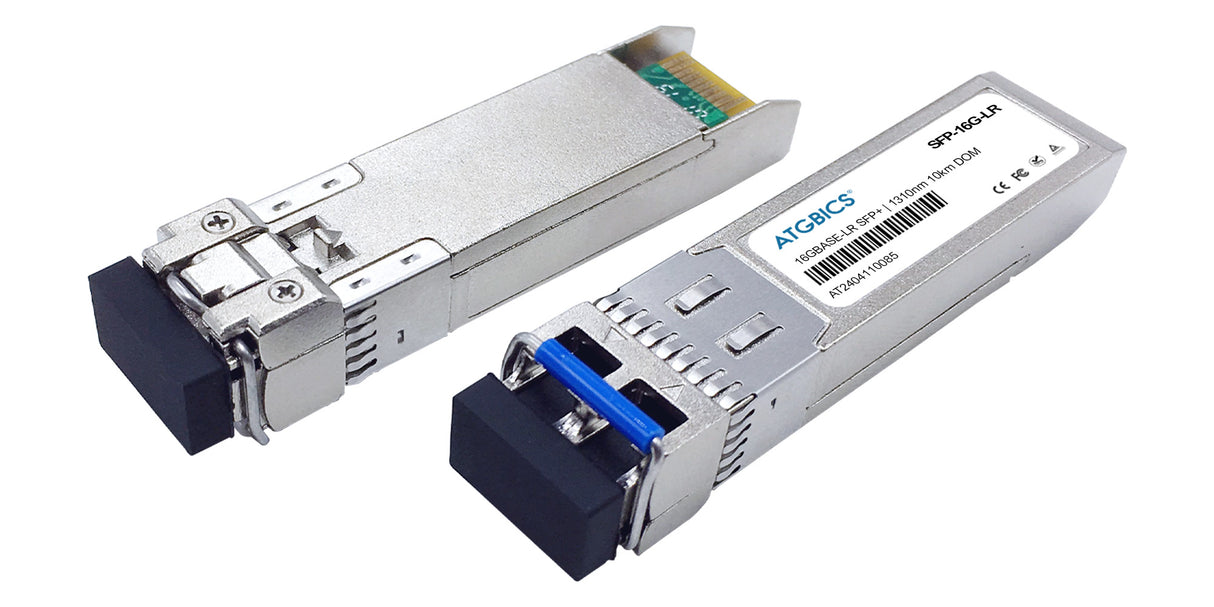

Lenovo Brocade Secure 16Gb LWL SFP+ (10 km) Transceiver
Photo is for illustration purposes only. Actual product may be different.
Regular price
$6,654.00
Regular price
Sale price
$6,654.00
Unit price
per
MSRP: $6,749.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 16Gbps fiber channel data rate for high-performance networking
- Supports long-distance transmission up to 10 kilometers
- Compatible with SFP+ ports in Lenovo/Brocade environments
- Secure optical transceiver solution for enterprise networks
- Optimized for SAN and data center extension use cases
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Engineered by Lenovo to provide seamless integration with Brocade fiber channel infrastructure.
- Supports secure, high-bandwidth communication over extended distances, ideal for SAN and enterprise backup applications.
- Flexible and modular, allowing IT teams to scale storage and network capacity without infrastructure overhauls.
Product Overview
The Lenovo Brocade Secure 16Gb LWL SFP+ (10 km) is a high-performance fiber optic transceiver optimized for enterprise network applications. Supporting up to 16Gbps data rates over long-wave single-mode fiber, it enables secure communications across distances of up to 10 km. Designed for Lenovo environments with Brocade integration, this module is well-suited for SANs and data center extensions. Though specific technical details are lacking, it remains a robust option for scalable, long-range connectivity.
Specifications
Product Overview
Physical & Environmental
| Dimensions (WxDxH) | 13.4 mm x 56.5 mm x 8.5 mm |
| Product Weight | Approximately 0.02 kg |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity (Operating) | 10% to 85% non-condensing |
| Relative Humidity (Storage) | 5% to 95% non-condensing |
| Cooling | Passive |
Cloud Management & Licensing
| Compatible Management Platform | Lenovo XClarity / Brocade SANnav |
| License Requirement | No license required |
| Remote Monitoring | Supported with DDM/DOM |
Interfaces
| Interface Type | SFP+ |
| Connector Type | LC Duplex |
| Port Type | Fiber Optic |
| Media Type Supported | Optical Fiber |
| Number of Ports | 1 |
| Supported Data Rates | 4/8/16 Gbps Fibre Channel |
Compliance & Origin
| TAA Compliant | Inquire |
| Country of Origin | Inquire |
| RoHS Compliance | Yes |
| EMC Standards | Complies with FCC Part 15 Class B |
| Safety Certification | UL, CSA, CE |
Advanced Security Features
| Data Encryption Support | Yes, via Brocade Secure Transceiver technology |
| Tamper Evident Design | Yes |
| Authentication | Secure firmware authentication |
| Secure Boot | Supported in Brocade-based environments |
