Lenovo FLEX SYS CN4054S 4-Port 10Gb Virtual Fabric Adapter

VENDOR: LENOVO Mfg Part#: 00AG594 UPC#: 889488114184
1 5

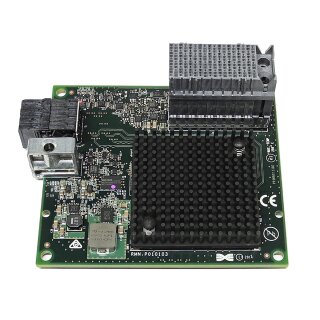

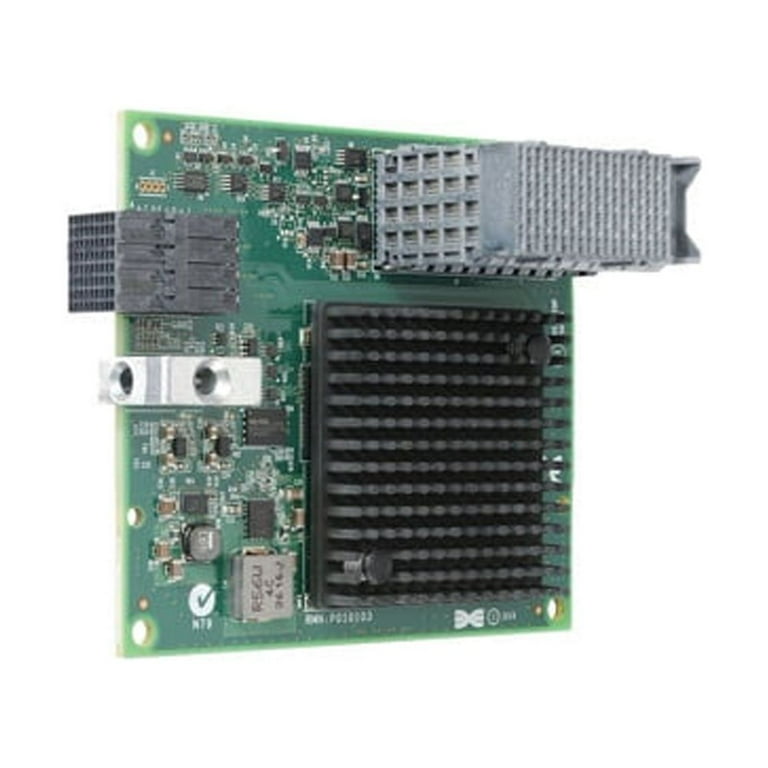

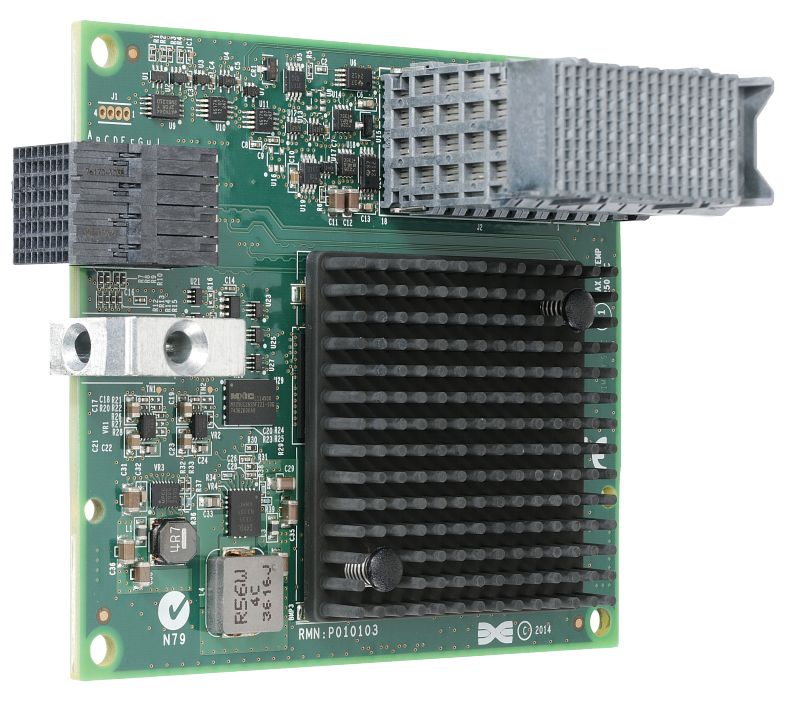

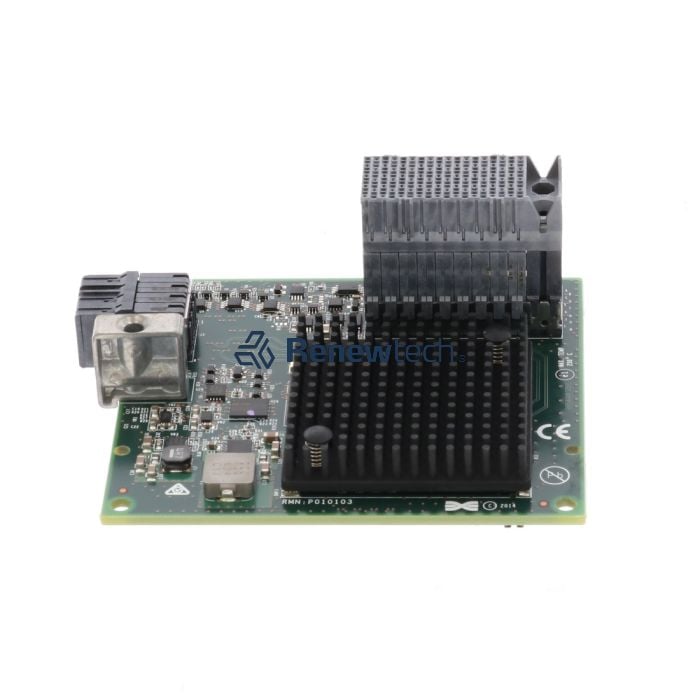

Photo is for illustration purposes only. Actual product may be different.
$772.00
$772.00
Sale Sold out
Shipping calculated at checkout.
  • 4-port 10Gbps Ethernet Virtual Fabric Adapter with VFA5.2 capability
  • Supports 10 Gigabit Ethernet and Gigabit Ethernet protocols
  • Remote management support for both IPv4 and IPv6
  • Wired connectivity for reliable, high-speed transmission
  • Compact dimensions: 3.9 inches width and 3.1 inches depth
  • Power-efficient operation with maximum 25W consumption

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed specifically for Lenovo ThinkSystem and Flex System compute nodes, ensuring seamless integration
  • Delivers high-speed 10Gbps performance across four ports, ideal for bandwidth-intensive applications
  • Supports advanced remote management via both IPv4 and IPv6, simplifying deployment and monitoring

Product Overview

The Lenovo FLEX SYS CN4054S 4-Port 10Gb Virtual Fabric Adapter is a VFA5.2-capable solution optimized for ThinkSystem and Flex System compute nodes. Offering four 10Gbps Ethernet ports, it delivers efficient, high-speed networking using standard Gigabit and 10 Gigabit Ethernet protocols. It supports IPv4/IPv6 remote management and maintains operational efficiency with a maximum power draw of 25 watts. With its compact size and wired connectivity, the CN4054S is ideally suited for data-intensive and virtualized computing environments.

Specifications

Product Overview
Product Type Network Adapter
Part Number 00AG594
UPC 889488114184
Family Networking
Form Factor Mezzanine Adapter for Flex System
Maximum Power Consumption 25 Watt
Connectivity Technology Wired
Designed for Lenovo Flex System Compute Nodes

Cloud Management & Licensing
Remote Management Protocols IPv4, IPv6
Deployable with Lenovo XClarity Yes
Network Virtualization Support Yes

Physical & Environmental
Width 3.9 Inch
Depth 3.1 Inch
Height 0.6 Inch
Form Factor Fit Lenovo Flex System CIOv Slot
Operating Temperature Range 10°C to 50°C (50°F to 122°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 85% RH (non-condensing)

Compliance & Origin
Country of Origin
TAA Compliant
RoHS Compliance Yes
Certifications FCC, UL, CE, VCCI

Interfaces
Interface Type Ethernet
Data Link Protocol 10 Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Ports Quantity 4
Port Speed 10 Gbps
Virtual Fabric Adapter Version VFA5.2
Supported Ethernet Standards 10GBASE-KR
I/O Interface PCIe (via CIOv slot on Flex System node)

Advanced Security Features
SR-IOV Support Yes
VLAN Support Yes
Checksum Offload Yes
MACSec Support No
Boot ROM PXE, iSCSI
Advanced Packet Filtering Yes

Wireless Features
Wireless Capabilities None
