Lenovo Flex System SI4091 10Gb Interconnect Module Switch

VENDOR: LENOVO Mfg Part#: 00FE327 UPC#: 883436594486
1 5
Photo is for illustration purposes only. Actual product may be different.
$10,500.00
$10,500.00
Sale Sold out
MSRP: $11,241.00
Shipping calculated at checkout.
  • Network Device Type: Switch
  • Data Transfer Rate: 10 Gbps
  • Interfaces: 10 Gb Ethernet port
  • Data Link Protocol: Gigabit Ethernet
  • Dimensions: 15.8" W x 12.5" D x 1.2" H
  • TAA compliant; Country of Origin: Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for 10Gb high-performance environments, boosting data throughput in enterprise systems.
  • Compact 1.2-inch height and broad compatibility enable efficient integration in space-constrained infrastructures.
  • TAA compliance and Mexican manufacturing ensure regulatory adherence and reliable sourcing.

Product Overview

The Lenovo Flex System SI4091 10Gb System Interconnect Module delivers high-speed 10Gb Ethernet connectivity and supports Gigabit Ethernet for optimized data transfer. It is designed with a compact footprint for dense environments and is TAA compliant for use in regulated sectors. Manufactured in Mexico, it brings robust construction quality to enterprise deployments. Specific configuration details were not provided.

Specifications

Product Overview
Product Type Interconnect Module Switch
Form Factor Flex System I/O Module
Device Type Layer 2/3 Switch
Power Consumption 65 Watts (typical)
Redundant Power Supply Support Yes, via chassis
Hot-Swappable Modules Yes

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
EMC Certifications FCC Part 15 Class A, ICES-003 Class A
Safety Certifications UL, CSA, CB, IEC/EN 60950-1

Advanced Security Features
Access Control Lists (ACLs) Yes
802.1X Port Security Yes
Storm Control Yes
DHCP Snooping Yes
RADIUS / TACACS+ Authentication Yes
MAC Address Filtering Yes

Interfaces

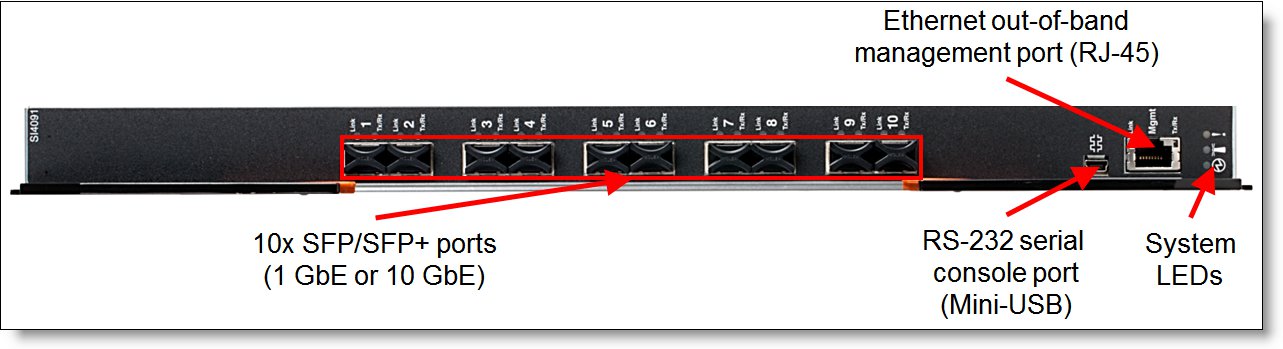

Number of Internal Ports 14 x 10 Gb internal Ethernet connections
Number of External Ports 10 x 10 Gb SFP+ ports
Management Ports 1 x 10/100/1000 Mbps RJ-45 (service port)
Uplink Module Support Yes (SFP+ optical and DAC cables supported)
Data Transfer Rate 10 Gbps
Data Link Protocol 10 Gigabit Ethernet, Gigabit Ethernet
Interface Options 10 Gb Ethernet SFP+, internal Ethernet to compute nodes

Physical & Environmental
Dimensions (W x D x H) 15.8 x 12.5 x 1.2 in
Weight 5.3 lb (2.4 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity (Operating) 10% to 90% (non-condensing)
Relative Humidity (Storage) 5% to 95%
Altitude (Maximum Operating) 3,050 m (10,000 ft)
Cooling Method Chassis-integrated cooling

Cloud Management & Licensing
Management Interface Lenovo Flex System Chassis Management
Supported Management Protocols SNMP v1/v3, CLI, Telnet, SSH, HTTP/HTTPS
Out-of-Band Management Yes – via service port
Software Upgradability Yes, via firmware updates
Preloaded License Base layer 2 switching features
License Upgrade Options Advanced Layer 3 routing via optional license
