Products Memory, Storage and Components Lenovo M.2 7450P 3.84TB RI ...

Lenovo M.2 7450P 3.84TB RI NVMe SSD with Heatsink

VENDOR: LENOVO Mfg Part#: 4XB7A82852 UPC#: 889488641970
1 3

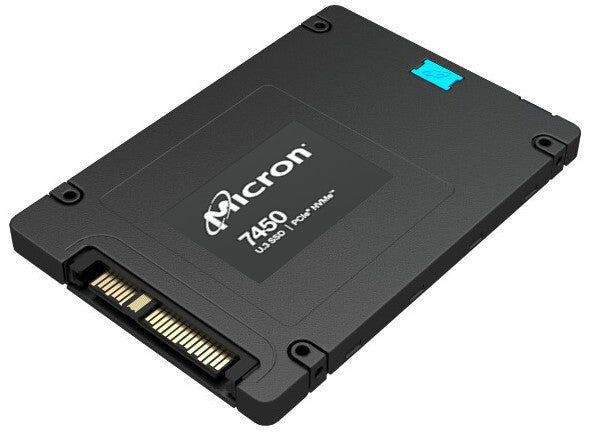

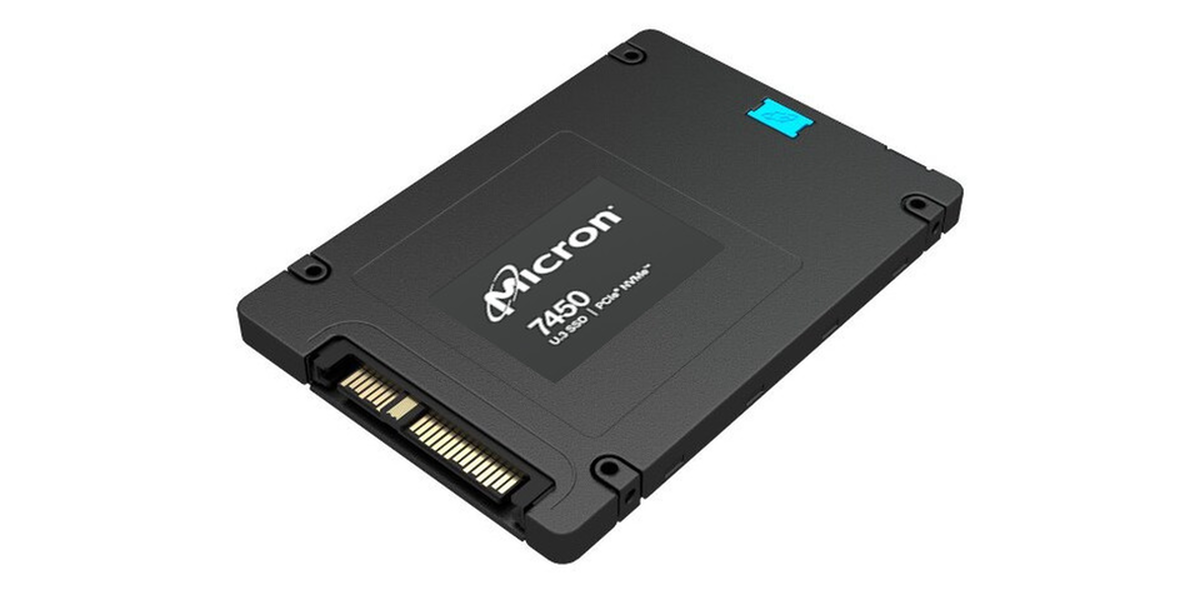

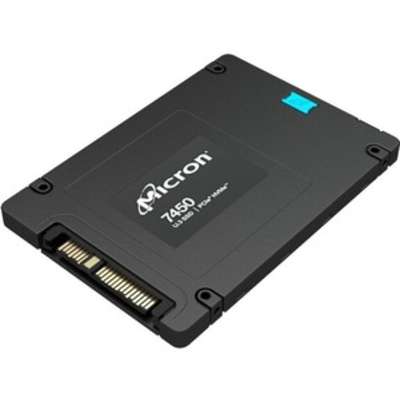

Photo is for illustration purposes only. Actual product may be different.
$2,636.00
$2,636.00
Sale Sold out
Shipping calculated at checkout.
  • 3.84TB storage capacity using 3D TLC NAND flash
  • PCIe 4.0 x4 NVMe interface for high-speed data transfer
  • 735,000 IOPS random read and 5,000 MB/s sequential read
  • 7,000 TBW endurance and 2,000,000-hour MTBF
  • Integrated heatsink for thermal management
  • S.M.A.R.T. monitoring support and RoHS compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for read-intensive enterprise workloads with high IOPS and endurance ratings
  • Built-in heatsink ensures stable performance under sustained operational loads
  • NVMe PCIe 4.0 x4 interface maximizes throughput for high-performance applications

Product Overview

The Lenovo M.2 7450P 3.84TB RI NVMe SSD is purpose-built for read-intensive workloads in enterprise-grade server environments, including the Lenovo ThinkSystem family. Leveraging 3D TLC NAND flash technology, it provides 3.84TB of high-speed storage, offering up to 735,000 IOPS and 5,000 MB/s sequential read speed via a PCIe 4.0 x4 NVMe interface.

Engineered for longevity, it delivers 7,000 TBW endurance and a 2 million-hour MTBF. A built-in heatsink manages thermals effectively, while S.M.A.R.T. support enables reliable monitoring. Its compact 22110 form factor and energy-efficient 8.2W profile make it ideal for high-density deployments. Coupled with a 1-year warranty, this SSD stands out as a reliable solution for modern data center challenges.

Specifications

Product Overview
Type Enterprise Read-Intensive NVMe SSD
Form Factor M.2 22110 (22 x 110 mm)
Storage Capacity 3.84 TB
Flash Type 3D TLC NAND
MTBF (Mean Time Between Failures) 2,000,000 hours
Endurance (Total Bytes Written) 7,000 TBW
Power Consumption (Read/Write) 8.2 W / 8.2 W
Warranty 1-year limited warranty
Model Series ThinkSystem 7450 PRO Read Intensive

Advanced Security Features
S.M.A.R.T. Support Yes

Compliance & Origin
RoHS Compliance Yes
TAA Compliance
Country of Origin

Additional Features
Controller Requirements NVMe drive backplane or PCIe connectivity via interposer, extender, or onboard NVMe connector
Energy Efficiency Optimized for low power in read-intensive scenarios
Target Workload Read-intensive enterprise applications
Compatibility Lenovo ThinkSystem platforms with M.2 NVMe support
Integrated Monitoring Supports S.M.A.R.T. diagnostics
Drive Orientation Horizontal (M.2 socket-dependent)
SKU / Part Number 4XB7A82852
UPC 889488641970

Interfaces
Interface PCIe 4.0 x4
Protocol NVMe
Connector Type M.2
Max Sequential Read Speed 5000 MB/s
Max Sequential Write Speed 2500 MB/s
Random Read (4KB) 735,000 IOPS
Random Write (4KB) 160,000 IOPS

Physical & Environmental
Dimensions (W x L) 22 mm x 110 mm
Operating Temperature (Min) 0 °C
Operating Temperature (Max) 70 °C
Cooling Integrated heatsink

Cloud Management & Licensing
Management Interface Not Applicable
Included Licensing Not Applicable
