LENOVO MCX562A-ACAB OCP 2x25G IPDC Adapter

VENDOR: LENOVO Mfg Part#: 4XC7A62607
1 4

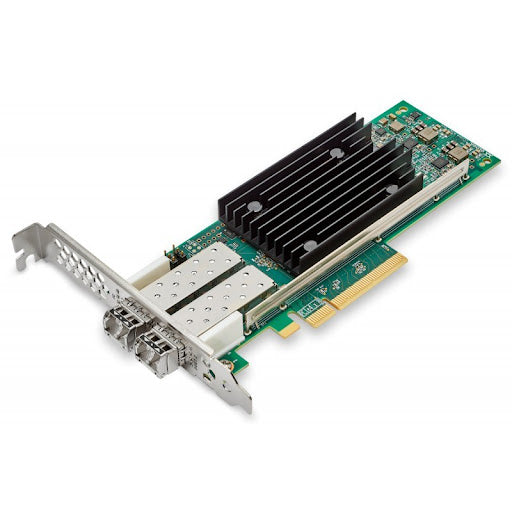

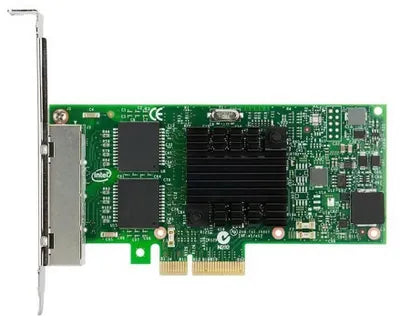

Photo is for illustration purposes only. Actual product may be different.
$1,424.00
$1,424.00
Sale Sold out
MSRP: $1,449.00
Shipping calculated at checkout.
  • OCP form factor compatible with Open Compute Project solutions
  • Dual 25G interface design for high-throughput networking
  • Optimized for enterprise and data center interconnectivity
  • LENOVO part number 4XC7A62607 for accurate sourcing

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enhance data center or enterprise system performance with dual 25G connectivity support.
  • Leverage compatibility with OCP infrastructure for flexible and modular deployment.
  • Gain the confidence of LENOVO's hardware reliability in high-speed networking scenarios.

Product Overview

The LENOVO MCX562A-ACAB OCP 2x25G IPDC is a system accessory engineered to support dual 25G high-throughput connectivity. Ideal for enterprise applications requiring fast and reliable networking, this interface card is targeted at elevating system-to-system communication within data centers or compute-intensive architectures. Its OCP form factor ensures integration compatibility with Open Compute Project servers or platforms that leverage modular and efficient hardware designs.

Built under the trusted LENOVO brand, this model—part number 4XC7A62607—falls under the broad category of accessories for computers and portables. Designed as a high-performance link adapter, its capabilities can support bandwidth expansion, reduced latencies, and improved data precision. While comprehensive technical specs such as power requirements or supported protocols are not disclosed, the MCX562A-ACAB offers a starting point for IT teams seeking infrastructure agility via scalable networking.

Because information on TAA compliance and country of origin is marked as “Inquire,” organizations with regulatory purchasing requirements should verify those aspects directly prior to procurement. Despite limited published specification data, this accessory serves as a building block for optimized computing environments when enhanced connections matter most.

Specifications

Product Overview
Product Type Network Interface Card (NIC)
Model Name MCX562A-ACAB
Manufacturer Lenovo
Manufacturer Part Number 4XC7A62607
Form Factor OCP 3.0 Small Form Factor
Application Data Center / Enterprise Networking
Chipset NVIDIA/Mellanox ConnectX-6
Product Family Computers and Portables
Category System Accessory
Bracket Height OCP 3.0 SFF
Weight ≤ 160 g
Power Consumption Up to 9 W

Advanced Security Features
Secure Boot Support Yes
UFM (Unified Fabric Manager) Compatibility Yes
Crypto Offload Yes
MACSec Support Yes, optional

Compliance & Origin
Country of Origin
TAA Compliance
RoHS Compliance Yes
Certifications CE, FCC Class A, UL, VCCI, BSMI, RCM
MTBF Over 1,000,000 hours

Interfaces
Number of Ports 2
Port Type SFP28
Interface Bandwidth 25GbE per port
Supported Network Speeds 10/25 GbE
Host Interface PCIe Gen4 x8 via OCP 3.0 Connector
Data Link Protocol Ethernet, InfiniBand
RDMA Support Yes, RoCE v2
NVMe over Fabrics Support Yes
SR-IOV Yes
Traffic Offloads TCP/UDP/IP Checksum Offload, RSS, TSO, LRO

Physical & Environmental
Dimensions (W x D x H) 88.9 mm x 69.3 mm x 18 mm
Operating Temperature Range 0°C to 55°C
Storage Temperature Range -40°C to 70°C
Operating Humidity 10% to 85% non-condensing
Airflow Requirements 200 LFM minimum
Cooling Passive

Cloud Management & Licensing
Management Software Compatibility Lenovo XClarity, NVIDIA UFM
Firmware Upgradeable Yes
Telemetry Support Yes
Included License None – Licensing sold separately (if applicable)
