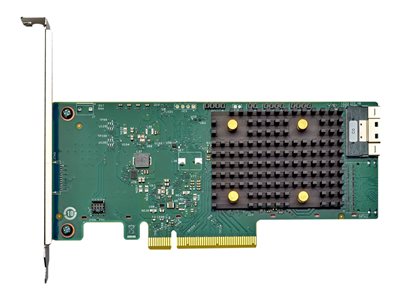

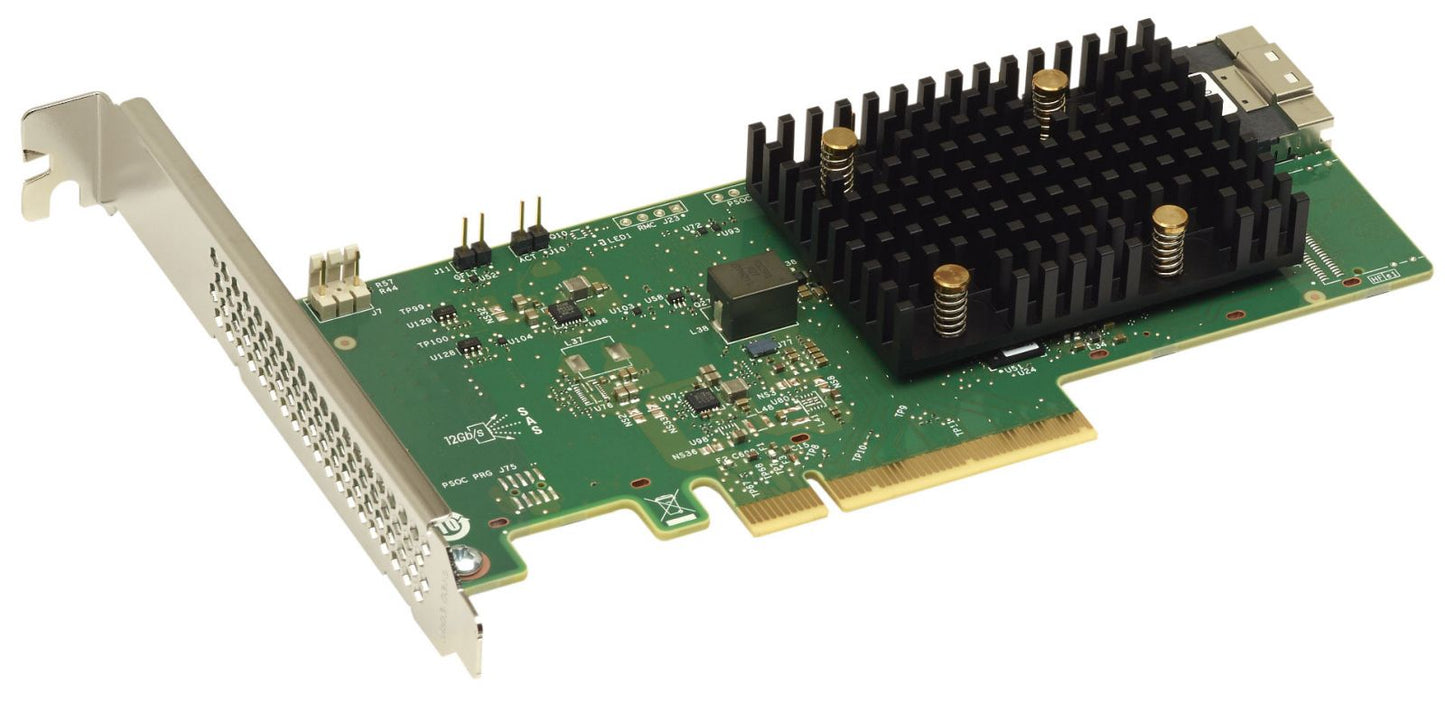

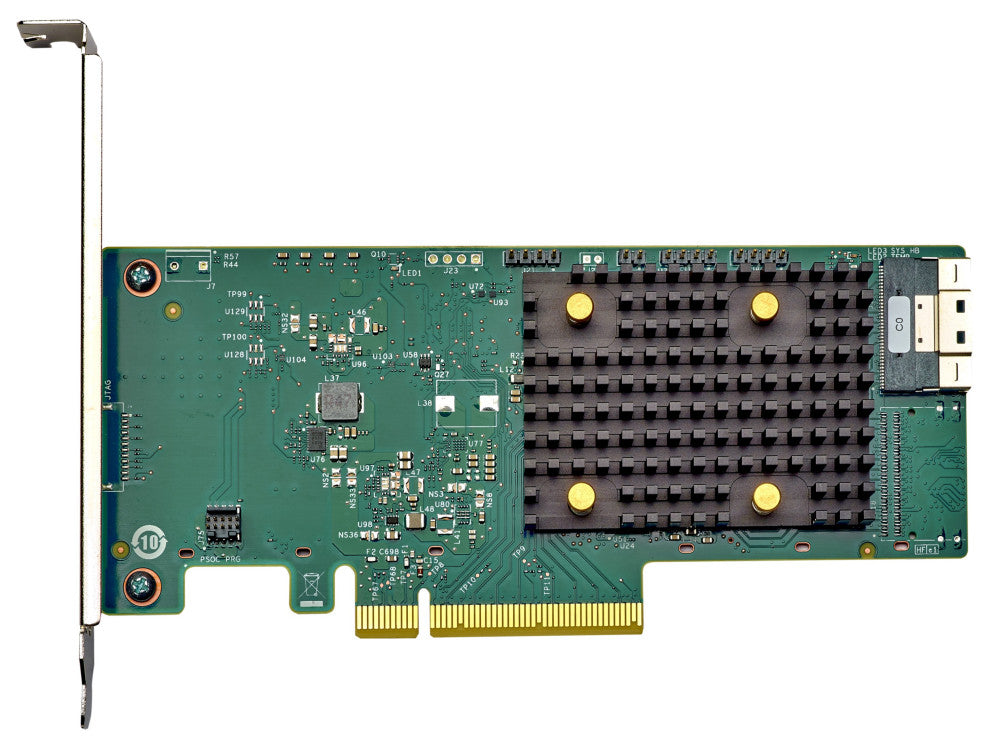

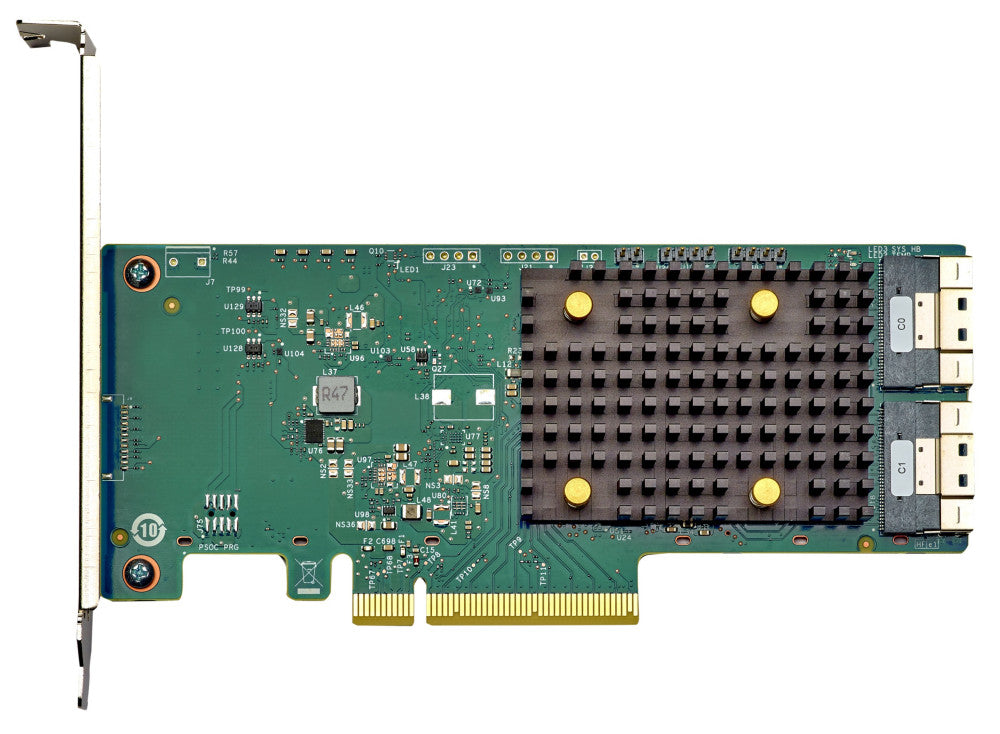

Lenovo RAID 540-8i PCIe Low Profile Adapter, 8-Drive, SAS 12 Gb/s

VENDOR: LENOVO Mfg Part#: 4Y37A78834 UPC#: 889488603008
1 5

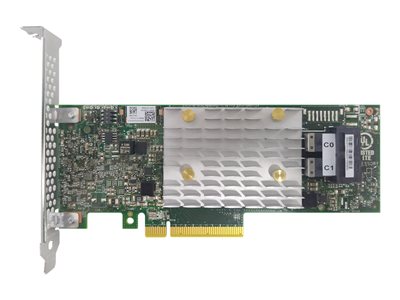

Photo is for illustration purposes only. Actual product may be different.
$962.00
$962.00
Sale Sold out
Shipping calculated at checkout.
  • - Supports up to 8 SSDs or HDDs for flexible storage configurations
  • - PCI Express 4.0 x8 interface for fast data throughput
  • - Utilizes SAS 12 Gb/s controller interface for high-speed connections
  • - Low-profile form factor suitable for compact or rack-mounted devices
  • - One x8 SFF-8654 connection for streamlined cabling and integration
  • - Includes 1-year limited warranty for service assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Designed for enterprise environments that require scalable, high-performance RAID storage
  • - Advanced SAS 12 Gb/s interface enables fast, reliable transfers for data-intensive applications
  • - Low-profile PCIe design maximizes compatibility in dense or space-constrained deployments

Product Overview

The Lenovo RAID 540-8i is a professional-grade RAID adapter with PCIe 4.0 x8 interface support, designed for high-speed data throughput. Supporting up to 8 drives, including both SSDs and HDDs, and utilizing SAS 12 Gb/s technology, it provides flexibility and efficiency in storage management. Its low-profile form factor facilitates installation in space-saving environments, while the 1-year limited warranty ensures reliable support. Designed for business-critical applications, it’s ideal for demanding enterprise storage tasks.

Specifications

Product Overview
Product Type RAID Adapter
Form Factor Low Profile
Interface Type PCI Express 4.0 x8
RAID Levels Supported RAID 0, 1, 5, 6, 10, 50, 60
Controller Chipset Broadcom SAS3916
Internal Ports 1 x SFF-8654 (4i x2)
Maximum Number of Devices 8
Drive Type Supported HDD, SSD
Drive Interface Supported SAS, SATA
SAS Data Transfer Rate 12 Gb/s
SATA Data Transfer Rate 6 Gb/s
Cache Memory None (uses host resources)
Warranty 1-Year Limited Warranty

Physical & Environmental
Card Height Low Profile (half-height)
Dimensions (H x L) 69 mm x 168 mm
Operating Temperature Range 0°C to 55°C
Storage Temperature Range -40°C to 70°C
Operating Humidity Range 5% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
MTBF 2,000,000 hours

Cloud Management & Licensing
Remote Management Support Through Lenovo XClarity (server integration)
License Requirement No additional license required for standard RAID functionality

Interfaces
Host Interface PCIe 4.0 x8
Internal Connector Type SFF-8654
Connector Count 1
Max Throughput Up to 9.6 GB/s (full PCIe 4.0 x8 bandwidth)
Maximum Drives Supported 8
Data Transfer Rate SAS 12 Gb/s, SATA 6 Gb/s

Compliance & Origin
Country of Origin
RoHS Compliance Yes
TAA Compliant
Certifications FCC, CE, VCCI, BSMI, cULus

Advanced Security Features
Secure Boot Support Yes (server enabled)
Drive Encryption Support Supports Self-Encrypting Drives (SED)
Management Security UEFI BIOS integrated control (system-dependent)
