Lenovo SR630 V2 8x2.5 SAS/SATA BP Cable Kit v2

VENDOR: LENOVO Mfg Part#: 4X97A59982 UPC#: 889488603114
1 5
Photo is for illustration purposes only. Actual product may be different.
$898.00
$898.00
Sale Sold out
MSRP: $1,017.00
Shipping calculated at checkout.
  • Supports up to 8x 2.5-inch SAS/SATA drive connections
  • Tailored for Lenovo SR630 V2 server compatibility
  • Designed as an internal server cable kit for backplane connectivity
  • Revision V2 for optimized hardware compatibility
  • Engineered to simplify server storage installation
  • Complies with Lenovo specifications for reliable integration

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ensures optimal connectivity between Lenovo SR630 V2 server and storage drives
  • Speeds up storage installation and maintenance with pre-qualified cabling
  • Minimizes risk of incompatibility with Lenovo-certified components

Product Overview

The Lenovo SR630 V2 8x2.5 SAS/SATA BP Cable Kit v2 is engineered for use with the Lenovo SR630 V2 server platform, enabling the installation and connection of up to eight 2.5-inch SAS or SATA drives. This kit provides the critical internal cabling needed for connecting the server's backplane to the RAID controller or onboard interface, ensuring reliable and efficient data transmission.

Designed to support enterprise-level workloads, the cable kit is a vital component for data center environments requiring high storage flexibility and system uptime. The V2 revision assures compatibility with updated backplanes and optimized hardware configurations of the SR630 V2 servers.

Constructed to exact Lenovo specifications, this kit ensures seamless integration, reducing potential issues with third-party components.

Specifications

Product Overview
Product Type Cable Kit
Intended Use Internal cabling for storage backplane connections

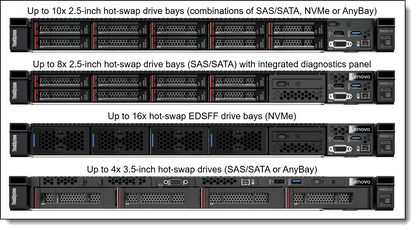

Supported Device Lenovo ThinkSystem SR630 V2 server
Drive Support Up to 8 x 2.5" SAS or SATA drives
Revision v2
Compatibility Optimized for updated SR630 V2 backplane configuration
Hot Swap Support Yes (when used with compatible hot-swap backplane)
Cable Type SAS/SATA signal and power cables
Mounting Hardware Included No
Weight 0.2 kg
Form Factor Internal server cable assembly
Power Requirements Passive component, draws no power

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
RoHS Compliance Yes
Reach Compliance Yes
WEEE Compliance Yes
Certification Standards Lenovo internal hardware standard compliance

Advanced Security Features
Data Encryption Support Dependent on RAID controller support
Tamper Evident Design No
Secure Boot Support No – hardware cable only

Interfaces
Connector Type Mini-SAS HD (SFF-8643 or similar), power connectors
Interface Support SAS 12Gbps, SATA 6Gbps
Total Connectors Multiple – dedicated ports for 8 drives
Data Channel SAS/SATA target interface to backplane
Port-to-Port Cabling RAID controller or onboard SATA/SAS to backplane

Physical & Environmental
Cable Length Custom-fitted for SR630 V2 chassis
Cable Color Black with color-coded connectors
Operating Temperature 10°C to 35°C (50°F to 95°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Operating Humidity 8% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Durability Designed for long-term server operation

Cloud Management & Licensing
Management Interface Not applicable
Software Licensing Required No
Cloud Integration No
