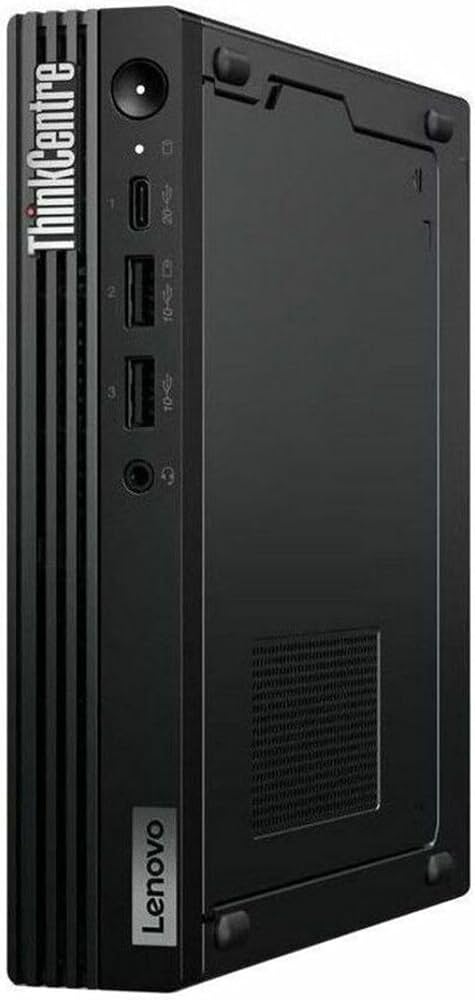

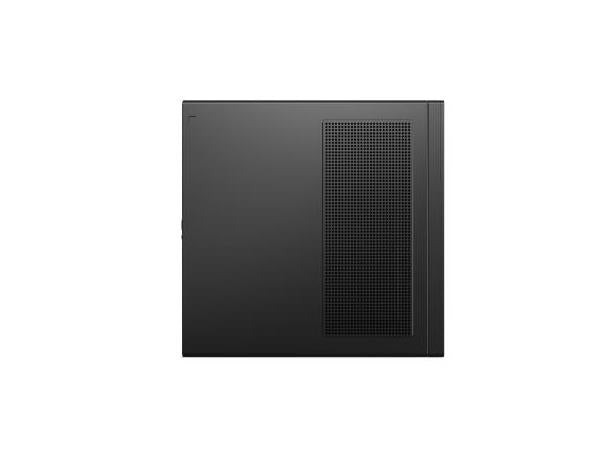

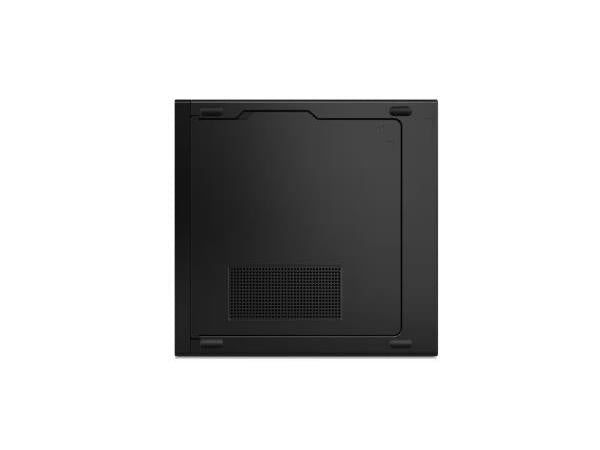

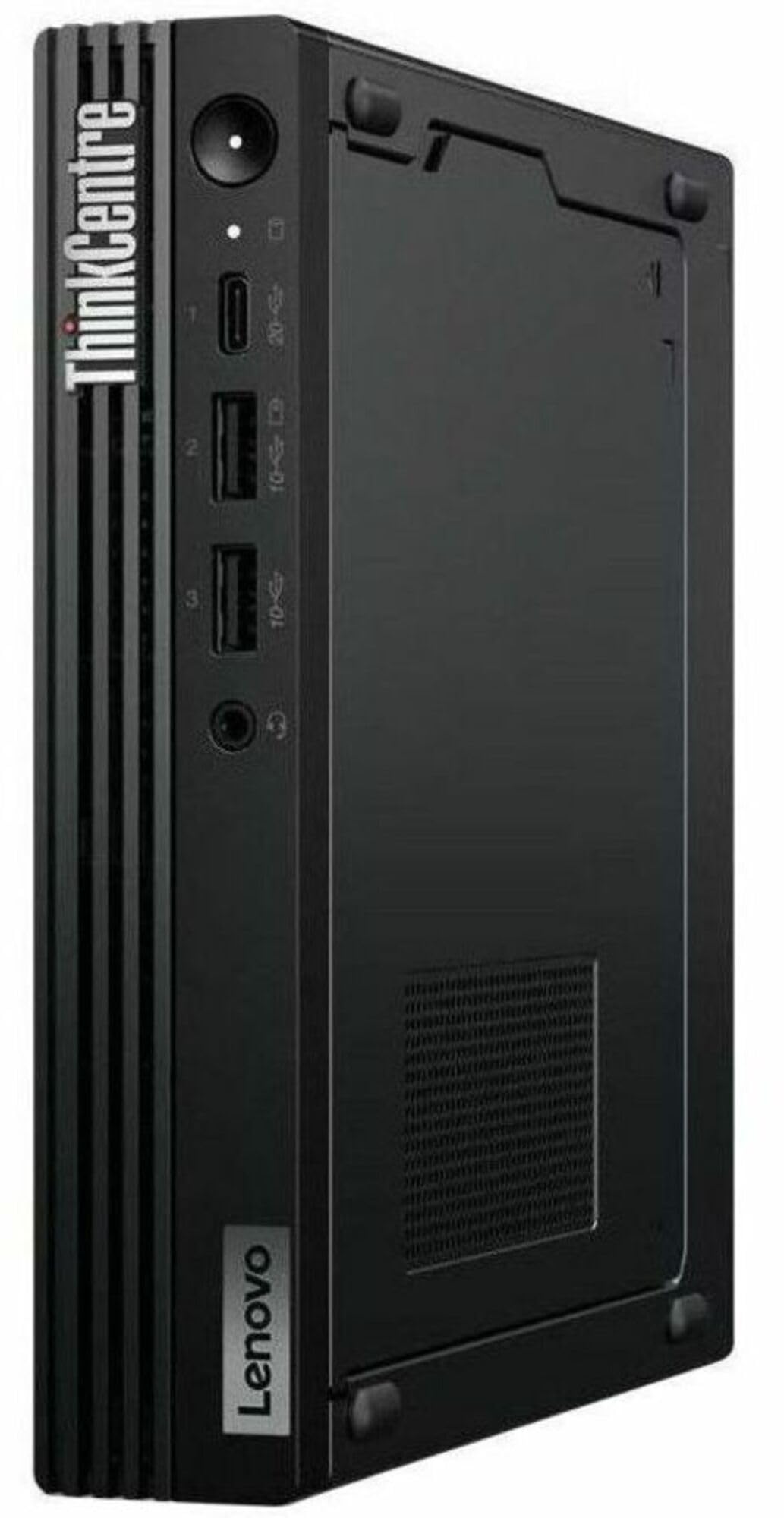

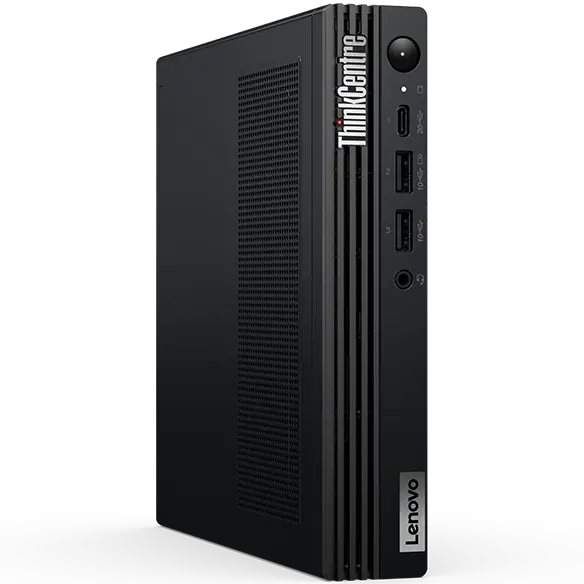

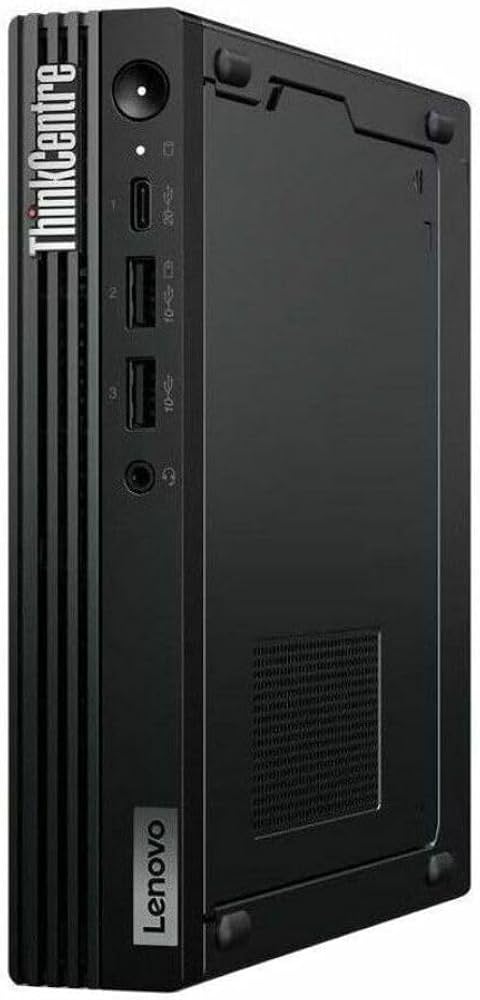

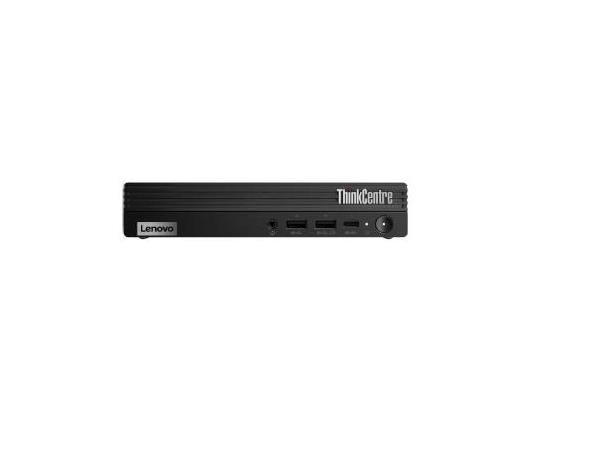

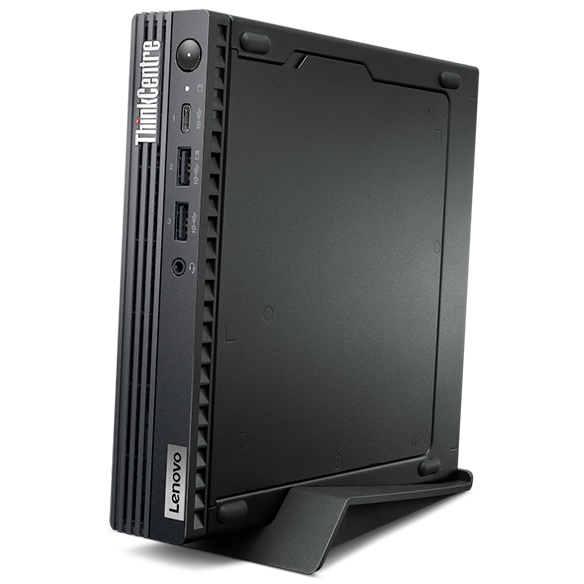

Lenovo ThinkCentre M90q Gen 5 i7-14700 16GB 1TB SSD Tiny Desktop

VENDOR: LENOVO Mfg Part#: 12TH000HUS
  • The Lenovo ThinkCentre M90q Gen 5 is a compact and powerful commercial desktop featuring a 14th Gen Intel Core i7-14700 processor, 16GB of DDR5 RAM, and a 1TB PCIe Gen4 SSD. Designed for professional environments, it runs Windows 11 Pro and includes Intel vPro Enterprise, Wi-Fi 6E, and enterprise-grade security features, making it a versatile solution for secure and high-performance business computing.
  • The Lenovo ThinkCentre M90q Gen 5 is a compact and powerful commercial desktop featuring a 14th Gen Intel Core i7-14700 processor, 16GB of DDR5 RAM, and a 1TB PCIe Gen4 SSD. Designed for professional environments, it runs Windows 11 Pro and includes Intel vPro Enterprise, Wi-Fi 6E, and enterprise-grade security features, making it a versatile solution for secure and high-performance business computing.
  • The Lenovo ThinkCentre M90q Gen 5 is a compact and powerful commercial desktop featuring a 14th Gen Intel Core i7-14700 processor, 16GB of DDR5 RAM, and a 1TB PCIe Gen4 SSD. Designed for professional environments, it runs Windows 11 Pro and includes Intel vPro Enterprise, Wi-Fi 6E, and enterprise-grade security features, making it a versatile solution for secure and high-performance business computing.
  • The Lenovo ThinkCentre M90q Gen 5 is a compact and powerful commercial desktop featuring a 14th Gen Intel Core i7-14700 processor, 16GB of DDR5 RAM, and a 1TB PCIe Gen4 SSD. Designed for professional environments, it runs Windows 11 Pro and includes Intel vPro Enterprise, Wi-Fi 6E, and enterprise-grade security features, making it a versatile solution for secure and high-performance business computing.
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,539.00
$1,539.00
Sale Sold out
Shipping calculated at checkout.
  • Intel Core i7-14700 (20-core) processor with max turbo frequency of 5.4GHz
  • 16GB DDR5-5200MHz RAM, expandable up to 64GB
  • 1TB PCIe Gen4 NVMe SSD for high-speed storage performance
  • Intel UHD Graphics 770 with DisplayPort and HDMI outputs
  • Intel Wi-Fi 6E AX211 and Bluetooth 5.3 for advanced connectivity
  • Discrete TPM 2.0, FIPS 140-2 certification, and vPro Enterprise support for enterprise security
View full details

Key Benefits

Eye-Insights
  • Delivers premium performance for enterprise workloads with a 14th Gen Intel Core i7-14700 and 20-core architecture
  • Compact Tiny form factor allows for deployment in space-constrained environments without compromising functionality
  • Integrated security and manageability via vPro Enterprise, TPM 2.0, and 3-year on-site warranty provide IT peace of mind

Product Overview

ThinkCentre M90q Gen 5, Intel Core i7-14700 vPro (E-cores up to 4.20GHz, 33MB), W11P64 ENG, 16.0GB, 1x1TB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770,BT 5.1 or above,IntelAX211vPro, 230W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black)

Specifications

General
Processor Intel, Core i7, 14700, Base 2.1GHz, Smart Cache 33MB, MaxTurbo 5.4GHz
RAM DDR5 SODIMM, Total Installed 16GB, 5200MHz, Max Supported 64GB

Memory
Cache Memory Type Smart Cache
RAM / Installed Qty 1
RAM / Total Slots Qty 2
RAM / Technology DDR5
RAM / Total Installed Size 16 GB
RAM / Memory Speed 5200 MHz
RAM Form Factor SODIMM
RAM / Max Supported Size 64 GB

Storage
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 1 TB
SSD / Installed Qty 1
Optical Storage Type None
Storage Controller Type PCIe 4.0x4 NVMe
Hard Drive / Capacity (2nd) None GB

I/O
Input Device Support Type Keyboard, Mouse
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Keyboard Language English

Power
Power / Device Type Power Supply
Power / Provided (W) 230 Watt
Efficiency 89%

Video
Graphics Controller Intel UHD Graphics 770
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI

UNSPSC Code
UNSPSC Code 43211508

Primary Information
System Type Personal Computer
Model ThinkCentre M90q Gen 5
Cabinet Form Factor Tiny
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Cache Memory Installed Size 33 MB
Max Turbo Frequency 5.4 GHz
Processor / Number 14700
Processor / Installed Qty 1
Processor / Max Supported Qty 1
Cache Memory Installed Size 33 MB
RAM / Installed Qty 1
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 2
RAM / Total Installed Size 16 GB
RAM / Memory Speed 5200 MHz
RAM Form Factor SODIMM
RAM / Max Supported Size 64 GB
Storage Controller Type PCIe 4.0x4 NVMe
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 1 TB
SSD / Installed Qty 1
Optical Storage Type None
Audio Output High Definition (HD) Audio, Realtek ALC233 codec
Storage Controller Type PCIe 4.0x4 NVMe
Memory Card Reader No card reader
Hard Drive / Capacity (2nd) None GB
Data Link Protocol Ethernet; Wi-Fi, Bluetooth 5.3
Network Controller Intel Wi-Fi 6E AX211
Platform Technology Intel vPro Enterprise
Graphics Controller Intel UHD Graphics 770
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI
Speakers 1 x 2W
Input Device Support Type Keyboard, Mouse
Keyboard Language English
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Pro
Power / Device Type Power Supply
Power / Provided (W) 230 Watt
Efficiency 89%
Front I/O Ports 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)
Rear I/O Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45)
Expansion Slots Total (Free) One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN)
Width 7.05 Inch
Depth 7.2 Inch
Height 1.44 Inch
Weight 2.76 lbs.
Enclosure Color Black
Service & Support Type 3-year Warranty
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified; Kensington Security Slot, 3 x 7 mm
Stand Yes

Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Max Turbo Frequency 5.4 GHz
Processor / Number 14700
Processor / Installed Qty 1
Processor / Max Supported Qty 1
Cache Memory Type Smart Cache
Cache Memory Installed Size 33 MB

Expansion
Expansion Slots Total (Free) One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN)
Front I/O Ports 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)
Rear I/O Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45)

Networking
Data Link Protocol Ethernet; Wi-Fi, Bluetooth 5.3
Network Controller Intel Wi-Fi 6E AX211

Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified; Kensington Security Slot, 3 x 7 mm
COO MEXICO
TAA compliance Yes

Dimensions&Miscellaneous
Enclosure Color Black
Width 7.05 Inch
Depth 7.2 Inch
Height 1.44 Inch
Weight 2.76 lbs.
