Products Computers & Laptops Lenovo ThinkCentre M90q Gen...

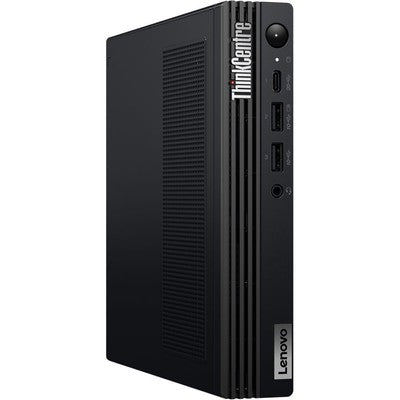

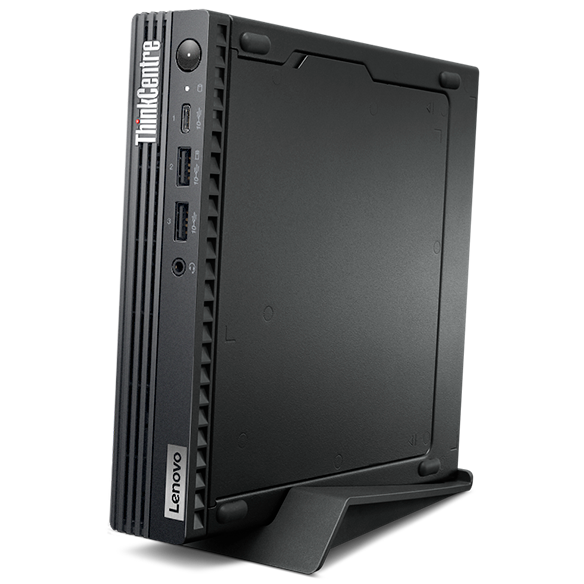

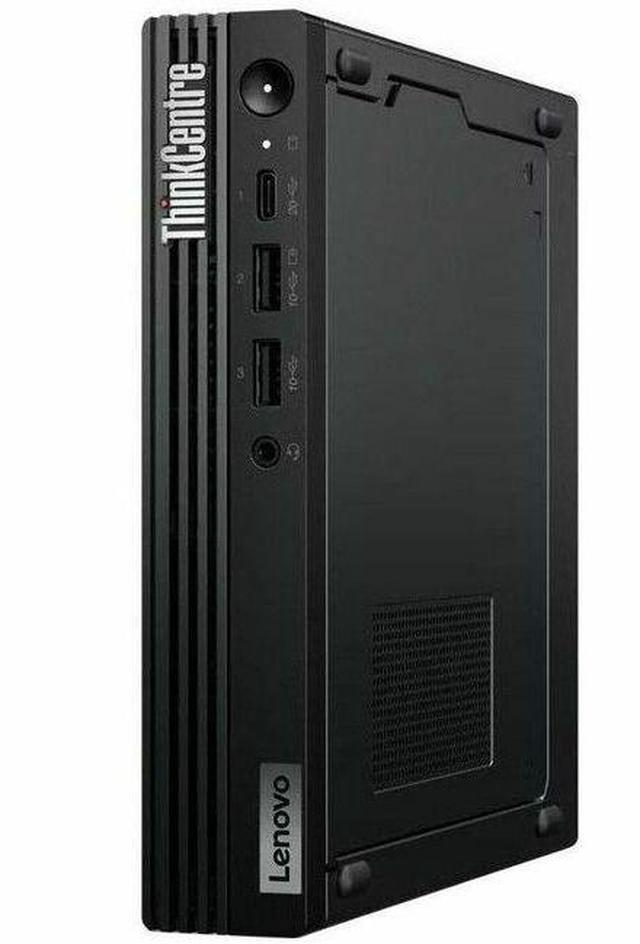

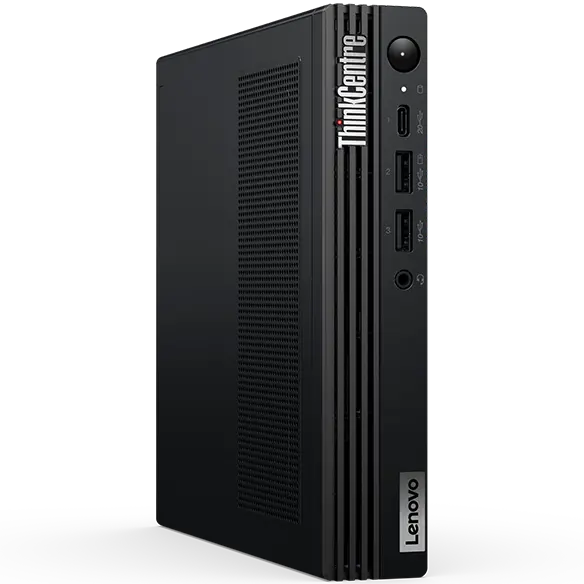

Lenovo ThinkCentre M90q Gen 5 i7/8GB/256GB SSD Tiny Desktop

VENDOR: LENOVO Mfg Part#: 12TH000PUS
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,994.00
$1,994.00
Sale Sold out
Shipping calculated at checkout.
  • Intel Core i7-14700 processor with 20 cores and 33 MB Smart Cache
  • 8GB DDR5 5600MHz memory, expandable up to 64GB
  • 256GB PCIe NVMe Gen4 x4 SSD for fast storage performance
  • Intel UHD Graphics 770 with support for up to 4 monitors
  • Compact Tiny form factor with 230W power supply, 89% efficiency
  • Built-in connectivity: USB-C, HDMI 2.1, DisplayPort 1.4a, Bluetooth 5.3, Wi-Fi, Gigabit Ethernet

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-performance Intel Core i7-14700 with 20 cores is ideal for multitasking and demanding workloads
  • Includes enterprise-ready features like Intel vPro, TPM 2.0, and a 3-year on-site support for business-grade reliability
  • Compact and energy-efficient with EPEAT Gold, Energy Star, and TCO certifications for sustainable IT deployment

Product Overview

THINKCENTRE M90Q GEN 5 INTEL CORE I7-14700 VPRO E-CORES UP TO 4.20GHZ 33MB WIN 11 PRO 64 8.0GB 1X256GB SSD M.2 2280 PCIE GEN4 TLC OPAL INTEL UHD GRAPH 770 BT 5.1 OR ABOVE INTELAX211VPRO 3 YR ON-SITE USB TRADITIONAL BLK-EN US

Specifications

Product Overview
Product Type Tiny Desktop PC
Model ThinkCentre M90q Gen 5
Processor Intel Core i7-14700
Processor Generation 14th Generation
Number of Cores 20 (8P + 12E)
Max Turbo Frequency 5.4 GHz
Cache 33 MB Smart Cache
Chipset Intel Q670
Form Factor Tiny
Weight 1.25 kg
Power Supply External 230W Power Adapter
Power Efficiency 89%
Operating System Windows 11 Pro 64-bit

Wireless Features
Wi-Fi Standard Wi-Fi 6E (802.11ax)
Bluetooth Version Bluetooth 5.3
Wireless Adapter Intel AX211 (vPro)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
EPEAT Certification Gold
Energy Star Certified Yes
TCO Certified Yes

Advanced Security Features
TPM Discrete TPM 2.0
Security Chip Firmware TPM supported
BIOS Security Smart USB Protection, BIOS password

Graphics Support
Graphics Controller Intel UHD Graphics 770
Maximum Displays Supported 4
Video Interfaces 2x DisplayPort 1.4a, 1x HDMI 2.1 TMDS

Interfaces
Front Ports 1x USB-C, 2x USB-A, 1x 3.5mm combo audio jack
Rear Ports 4x USB-A, 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a, 1x RJ-45
Expansion Slots 1x PCIe 4.0 x8 low-profile
Audio Realtek ALC233 HD Audio Codec
Internal Speaker 1 x 2W mono speaker
Data Transfer Protocols Gigabit Ethernet, Wi-Fi, Bluetooth
USB Total Ports 7 (1x USB-C, 6x USB-A)

Physical & Environmental
Width 7.05 in (179 mm)
Depth 7.2 in (183 mm)
Height 1.44 in (36.5 mm)
Color Black
Operating Temperature Range 5°C to 35°C
Operating Humidity Range 20% to 80% RH (non-condensing)
Stand Included Yes

Cloud Management & Licensing
Platform Technology Intel vPro Enterprise
Management Features vPro remote management, BIOS-level control
Warranty Coverage 3-Year Onsite Support

Memory & Storage
RAM Installed 8 GB
RAM Type DDR5 SDRAM
Memory Form Factor SODIMM
Memory Speed 5600 MHz
RAM Slots (Total) 2
RAM Max Capacity 64 GB
Storage Type M.2 PCIe NVMe SSD
Storage Capacity 256 GB
Storage Interface PCIe Gen 4x4 NVMe

Input Devices
Keyboard Type USB Traditional
Mouse Type USB Calliope Mouse
Keyboard Language English
