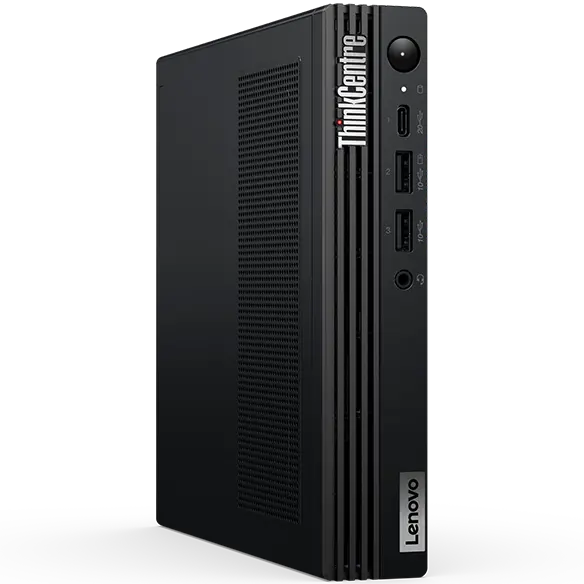

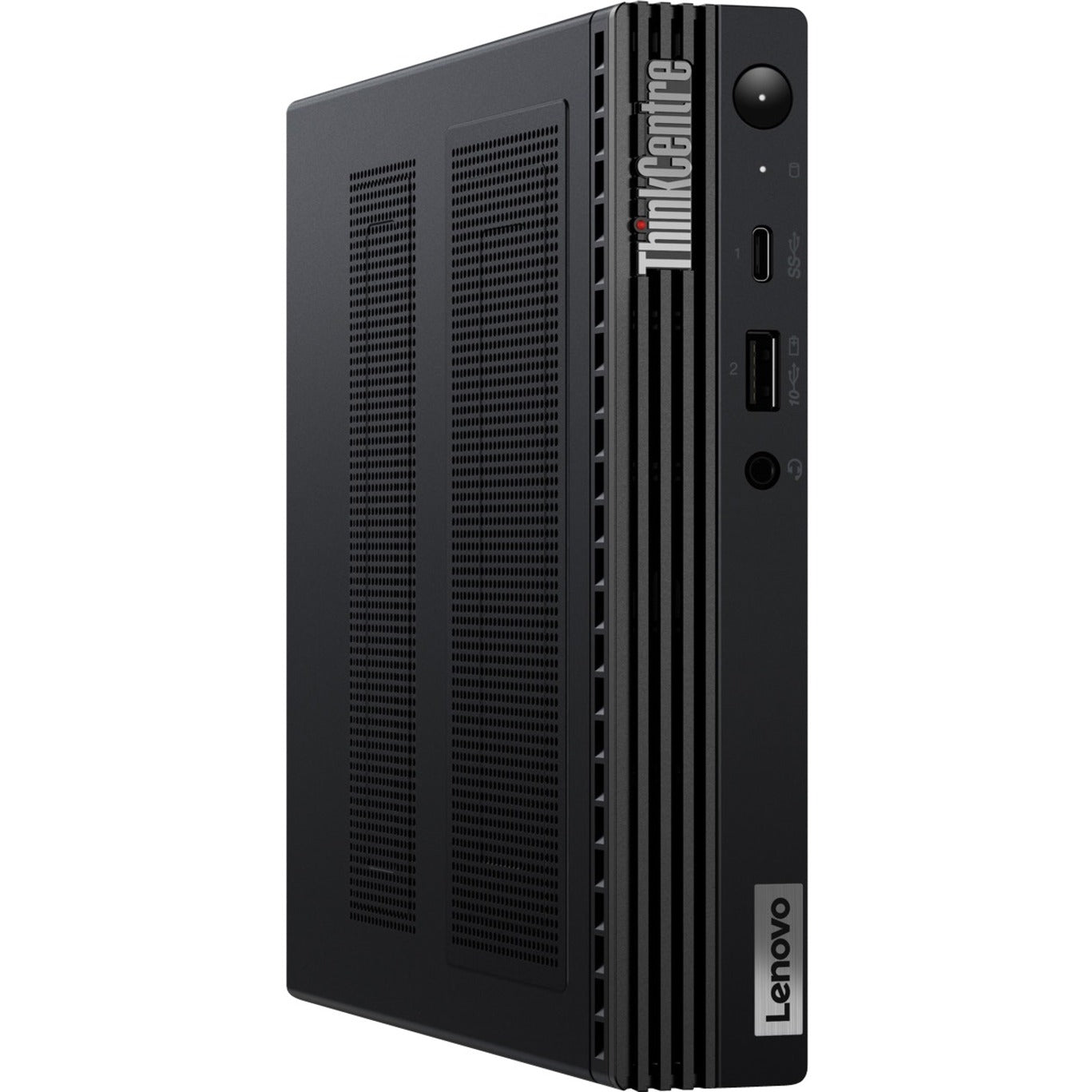

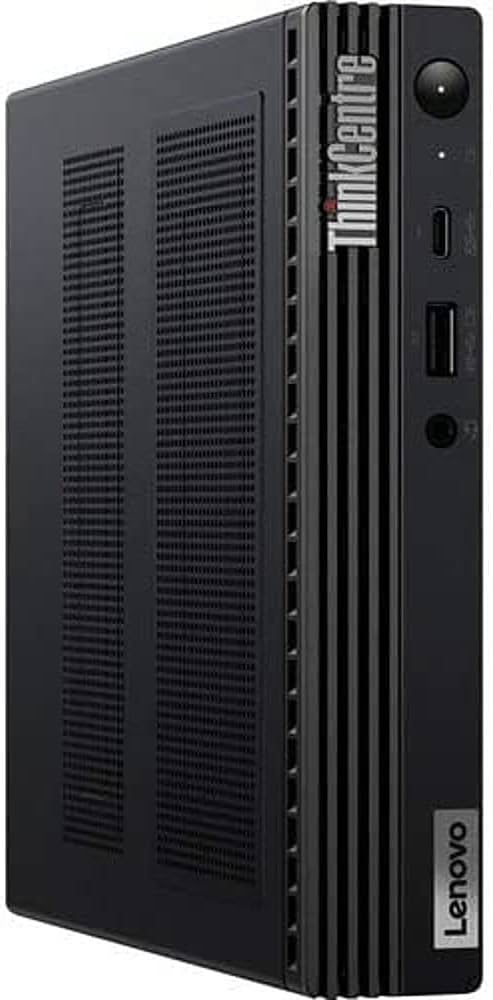

Lenovo ThinkCentre M90q Gen 5 i9/64GB/512GB Tiny Desktop

VENDOR: LENOVO Mfg Part#: 12TH0014US
1 4
Photo is for illustration purposes only. Actual product may be different.
$2,937.00
$2,937.00
Sale Sold out
Shipping calculated at checkout.
  • Intel Core i9-14900 vPro, 24-core processor with up to 5.8GHz turbo frequency
  • 64GB DDR5 5200MHz RAM in 2 SODIMM slots (max supported)
  • 512GB PCIe Gen4 NVMe SSD for high-speed storage
  • Intel UHD Graphics 770 with DisplayPort and HDMI output
  • Compact Tiny Form Factor – Just 1.44" height and 2.76 lbs weight
  • Wi-Fi 6E AX211, Bluetooth 5.3, and Gigabit Ethernet connectivity

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers exceptional computing power with a 14th Gen Intel Core i9 processor and 64GB DDR5 RAM, ideal for multitasking and enterprise workloads.
  • Compact Tiny design saves desk space while still offering full performance, I/O, and expandability including PCIe slot and dual-display support.
  • Enhanced data security and compliance with TPM 2.0, FIPS 140-2, and Intel vPro Enterprise features, ideal for business environments.

Product Overview

ThinkCentre M90q Gen 5, Intel Core i9-14900 vPro (E-cores up to 4.30GHz, 36MB), W11P64 ENG, 64.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770,BT 5.1 or above,IntelAX211vPro, 230W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black)

Specifications

Product Overview
Product Type Tiny Desktop PC
Form Factor Tiny
Model ThinkCentre M90q Gen 5
Weight 2.76 lbs.
Power Supply External Power Adapter
Power Provided 230 Watt
Power Efficiency 89%
Operating System Microsoft Windows 11 Pro
Color Black
Included Accessories USB Traditional Keyboard (Black, English), USB Calliope Mouse (Black)
Warranty 3-year On-site
Service & Support Type On-site Warranty

Wireless Features
Wi-Fi Standard Wi-Fi 6E
Wireless Controller Intel Wi-Fi 6E AX211
Bluetooth Bluetooth 5.3
Platform Technology Intel vPro Enterprise

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes

Advanced Security Features
TPM Discrete TPM 2.0
TPM Certification TCG Certified, FIPS 140-2 Certified
Physical Security Kensington Security Slot (3 x 7 mm)

Memory
Installed Memory 64 GB
Memory Technology DDR5 SDRAM
Memory Speed 5200 MHz
Form Factor SODIMM
Maximum Memory Supported 64 GB
Total Memory Slots 2
Installed Memory Modules 2

Graphics & Audio
Graphics Processor Intel UHD Graphics 770
Audio Output High Definition Audio, Realtek ALC233 codec
Speaker Configuration 1 x 2W internal speaker

Interfaces
Front I/O Ports 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only
Rear I/O Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On
Expansion Slots One PCIe 4.0 x8, low-profile
Video Output Interfaces DisplayPort, HDMI

Physical & Environmental
Width 7.05 inch
Depth 7.2 inch
Height 1.44 inch

Cloud Management & Licensing
Management Platform Intel vPro Enterprise

Processor
Processor Manufacturer Intel
Processor Type Core i9
Processor Model i9-14900
Processor Generation 14th Generation
Cores 24-Core
Base Clock Speed 2 GHz
Max Turbo Frequency 5.8 GHz
Cache Memory 36 MB Smart Cache
Processor Installed 1
Processor Max Supported 1
Chipset Intel Q670

Storage
Storage Type SSD
Installed SSDs 1 x 512 GB M.2 2280 PCIe Gen4 NVMe TLC Opal
Storage Controller Type PCIe 4.0x4 NVMe
Hard Disk Drive Bays 0 (HDD not installed)
