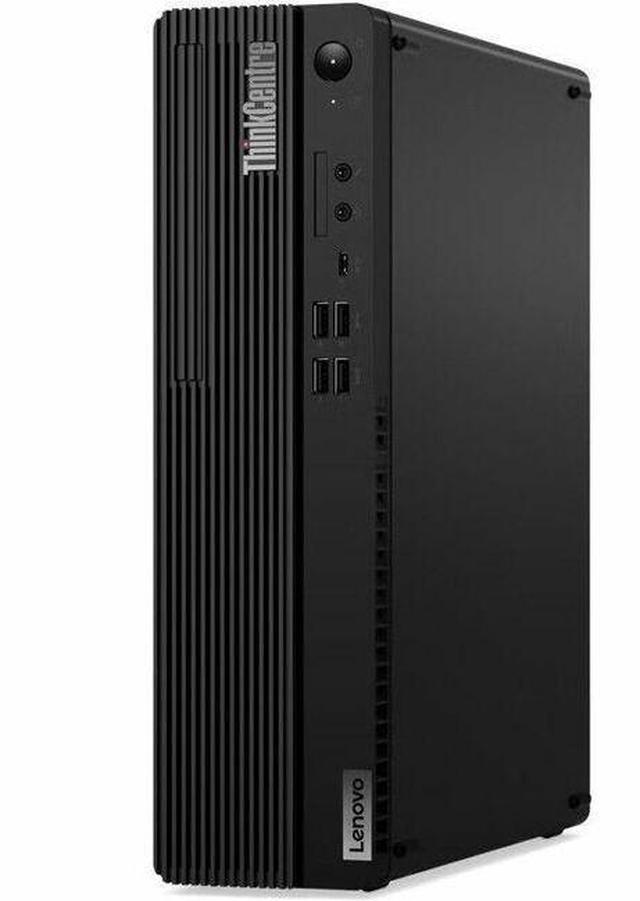

Lenovo ThinkCentre M90s Gen 5 SFF, i7-14700, 32GB, 512GB SSD, W11 Pro

VENDOR: LENOVO Mfg Part#: 12V40006US UPC#: 198153680054
  • M90s SFF Gen 5, Intel Core i7-14700,Win11Pro,32GB,512GB SSD
1 1
Photo is for illustration purposes only. Actual product may be different.
$2,231.00
$2,231.00
Sale Sold out
MSRP: $2,247.00
Shipping calculated at checkout.
  • Intel Core i7-14700 20-core processor with 5.4GHz max turbo frequency
  • 32GB DDR5 4400MHz UDIMM RAM, expandable up to 128GB
  • 512GB PCIe Gen4 NVMe SSD for high-speed storage
  • Integrated Intel UHD Graphics 770 with DisplayPort and HDMI
  • Wi-Fi 6E and Bluetooth 5.1+ connectivity with Intel AX211 controller
  • 310W 92% efficient power supply in a compact small form factor design

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High performance for business workloads with latest 14-core Intel i7-14700 CPU
  • Secure and manageable platform with vPro Enterprise, TPM 2.0, FIPS-certified encryption
  • Space-saving SFF chassis with powerful expandability options and 3-year on-site warranty

Product Overview

The Lenovo ThinkCentre M90s Gen 5 small form factor desktop combines robust computing power, efficient manageability, and enterprise-grade security into a space-saving chassis. Equipped with a 14th Generation Intel Core i7-14700 processor featuring 20 cores, 33MB Smart Cache, and a max turbo frequency of 5.4GHz, this system ensures smooth multitasking and performance in processing-heavy applications. Enterprise features like Intel vPro Enterprise and TPM 2.0 with FIPS certification support high security and remote management.

With 32GB DDR5 4400MHz RAM (expandable to 128GB) and a 512GB PCIe Gen4 NVMe SSD, the unit provides strong performance and expandability. Connectivity options include Wi-Fi 6E, Bluetooth 5.1+, USB-C with 15W charging, DisplayPort and HDMI outputs. The included 310W 92% efficient power supply maintains energy performance in compact designs, and the system also features a DVD-RW optical drive, USB keyboard and mouse, and 3-year onsite support.

Specifications

Product Overview
Type Desktop PC
Model ThinkCentre M90s Gen 5
Form Factor Small Form Factor
Weight 5.3 kg
Power Supply 310 Watt, 92% efficiency
Operating System Microsoft Windows 11 Pro
Processor Intel Core i7-14700 (2.1 GHz, 5.4 GHz Turbo, 20 cores, 33MB Smart Cache)
Processor Generation Intel 14th Generation
Platform Technology Intel vPro Enterprise
Graphics Intel UHD Graphics 770
Audio High Definition Audio, Realtek ALC897Q-CG codec
Speakers 1 x 1W
Optical Drive DVD±RW
Included Accessories USB Traditional Keyboard (English), USB Calliope Mouse (Black)

Wireless Features
Wireless Protocols Wi-Fi 6E (802.11ax), Bluetooth 5.1+
Wireless Adapter Intel Wi-Fi 6E AX211

Physical & Environmental
Width 92.5 mm
Depth 297.7 mm
Height 339.5 mm
Color Black

Cloud Management & Licensing
Remote Management Intel vPro Enterprise
Warranty & Support 3-year Onsite

Interfaces
Front I/O Ports 1x USB-C (USB 3.2 Gen 2, 10Gbps, 15W charging)
Rear I/O Ports 4x USB-A (USB 3.2 Gen 1, 5Gbps)
Video Outputs DisplayPort, HDMI
Expansion Slots 1x PCIe 4.0 x16 (x4 signal), low-profile

Memory & Storage
Installed RAM 32 GB DDR5 4400MHz UDIMM
Maximum RAM Supported 128 GB
RAM Slots 4 DIMM slots
Storage Type 512 GB PCIe Gen4 NVMe SSD
Storage Controller M.2 NVMe
Hard Disk Bays Available for additional HDD/SSD
Memory Card Reader Not included

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications FIPS 140-2 certified, TCG certified TPM

Advanced Security Features
Security Module Discrete TPM 2.0 (FIPS 140-2 certified, TCG-compliant)
