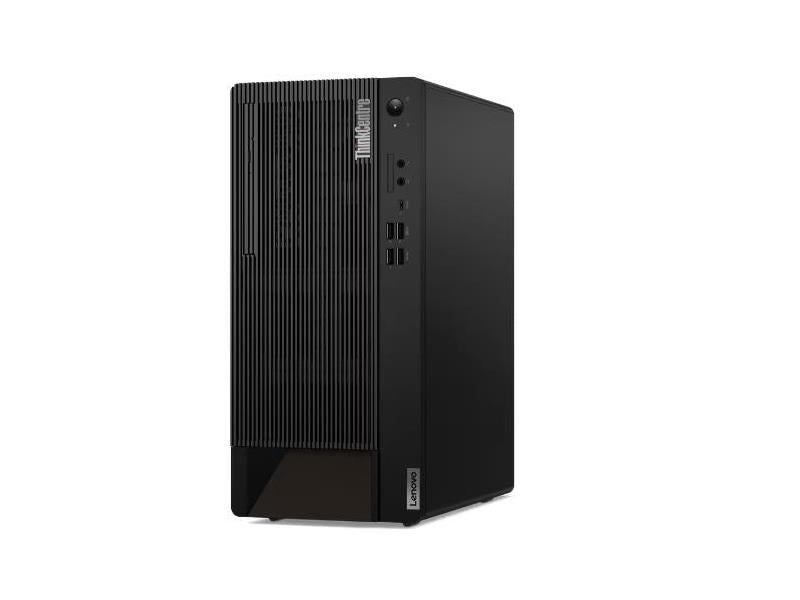

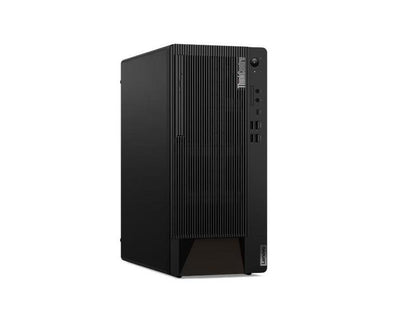

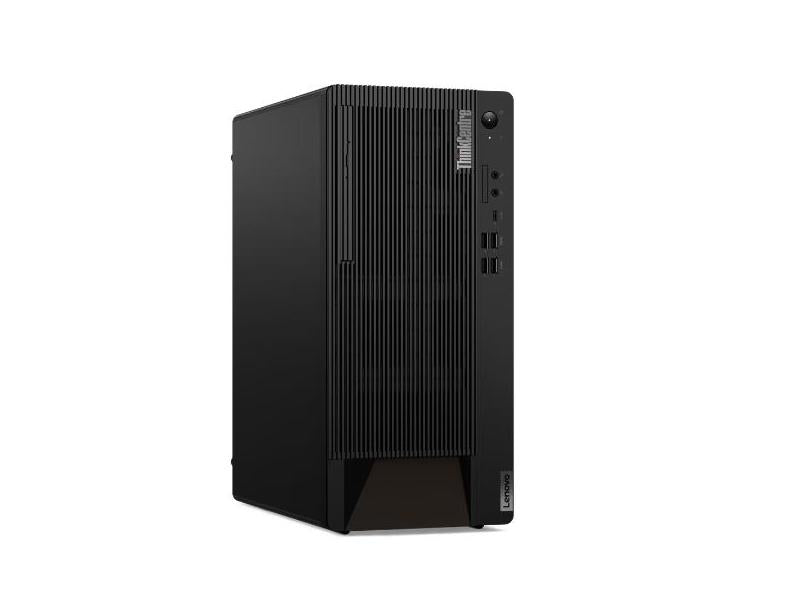

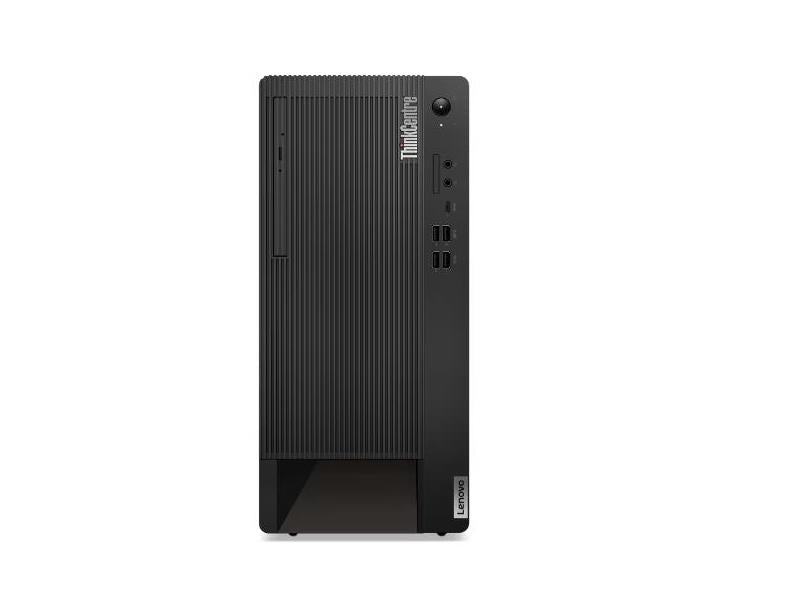

Lenovo ThinkCentre M90t Gen 5 i5-14500 16GB 256GB SSD W11P Tower Desktop

VENDOR: LENOVO Mfg Part#: 12V2000EUS
  • The Lenovo ThinkCentre M90t Gen 5 delivers high-performance computing with a powerful Intel Core i5-14500 14-core processor and the fast responsiveness of 16GB DDR5 RAM. It features a 256GB PCIe Gen4 NVMe SSD, Wi-Fi, Bluetooth, and a robust set of connectivity options, housed in a traditional black tower with a 3-year onsite warranty. Designed for productivity-driven professionals, it runs on Windows 11 Pro and supports up to four monitors, making it an ideal choice for business and enterprise environments.
  • The Lenovo ThinkCentre M90t Gen 5 delivers high-performance computing with a powerful Intel Core i5-14500 14-core processor and the fast responsiveness of 16GB DDR5 RAM. It features a 256GB PCIe Gen4 NVMe SSD, Wi-Fi, Bluetooth, and a robust set of connectivity options, housed in a traditional black tower with a 3-year onsite warranty. Designed for productivity-driven professionals, it runs on Windows 11 Pro and supports up to four monitors, making it an ideal choice for business and enterprise environments.
  • The Lenovo ThinkCentre M90t Gen 5 delivers high-performance computing with a powerful Intel Core i5-14500 14-core processor and the fast responsiveness of 16GB DDR5 RAM. It features a 256GB PCIe Gen4 NVMe SSD, Wi-Fi, Bluetooth, and a robust set of connectivity options, housed in a traditional black tower with a 3-year onsite warranty. Designed for productivity-driven professionals, it runs on Windows 11 Pro and supports up to four monitors, making it an ideal choice for business and enterprise environments.
  • The Lenovo ThinkCentre M90t Gen 5 delivers high-performance computing with a powerful Intel Core i5-14500 14-core processor and the fast responsiveness of 16GB DDR5 RAM. It features a 256GB PCIe Gen4 NVMe SSD, Wi-Fi, Bluetooth, and a robust set of connectivity options, housed in a traditional black tower with a 3-year onsite warranty. Designed for productivity-driven professionals, it runs on Windows 11 Pro and supports up to four monitors, making it an ideal choice for business and enterprise environments.
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,229.00
$1,229.00
Sale Sold out
Shipping calculated at checkout.
  • Intel Core i5-14500 14-core CPU with up to 5 GHz Max Turbo Frequency
  • 16GB DDR5-4400MHz UDIMM RAM, expandable to 128GB
  • 256GB PCIe Gen4 NVMe SSD storage
  • Intel UHD Graphics 770 with support for up to 4 monitors
  • Includes Wi-Fi, Bluetooth, and Gigabit Ethernet
  • Comes with Windows 11 Pro 64-bit and a 3-year onsite warranty
View full details

Key Benefits

Eye-Insights
  • Optimized for multitasking and performance with 14-core Intel i5-14500 and 16GB DDR5 RAM
  • Built-in expandability with PCIe 4.0 slots and M.2 bays, ideal for future upgrades
  • Enterprise-ready with TPM 2.0 security, Windows 11 Pro, and 3-year onsite support included

Product Overview

ThinkCentre M90t Gen 5, Intel Core i5-14500 vPro (E-cores up to 3.70GHz, 24MB), Windows 11 Pro 64, 16.0GB, 1x256GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year On-site, USB, Traditional, Black-English (US)

Specifications

Primary Information
System Type Personal Computer
Model ThinkCentre M90t Gen 5
Cabinet Form Factor Tower
Processor / Generation Intel 14th Generation
Processor / Type Core i5
Processor / Manufacturer Intel
Multi-Core Technology 14-Core
Cache Memory Installed Size 24 MB
Max Turbo Frequency 5 GHz
Processor / Number 14500
Cache Memory Installed Size 24 MB
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 4
RAM / Total Installed Size 16 GB
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Hard Drive / Type SSD
Hard Drive / Interface Type PCIe NVMe
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type Slim DVD RAMBO
Memory Card Reader None
Data Link Protocol Gigabit Ethernet; Wi-Fi, Bluetooth
Graphics Controller Intel UHD Graphics 770
Speakers Yes
Input Device Support Type Keyboard, Mouse
Keyboard Language English
Keyboard USB Traditional Keyboard, Black
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Professional 64-bit
Power / Device Type Power Supply
Power / Provided (W) 300 Watt
Efficiency 90%
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)

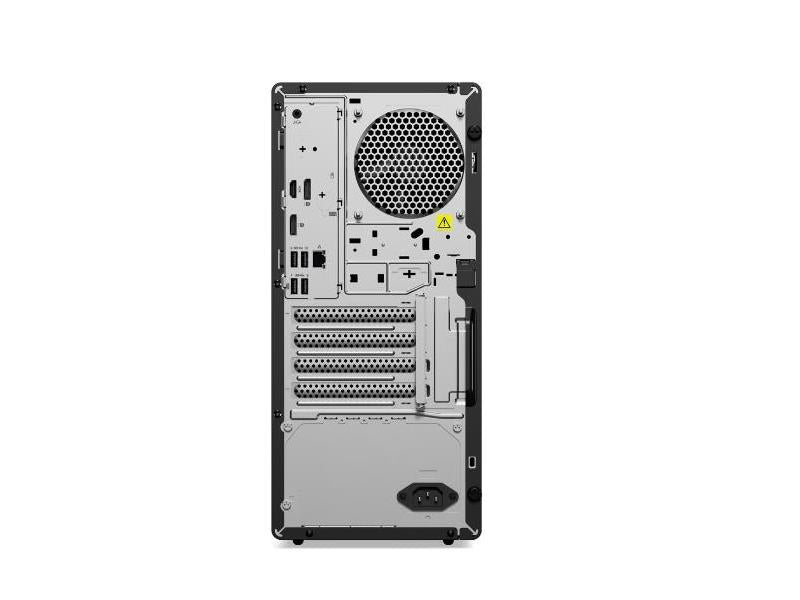

Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), full-height, length<= 205mm, height <=114.55mm; One PCIe 4.0 x16, full-height, length <= 268.5mm, height <=114.55mm; One PCIe 3.0 x1, full-height, length <= 205mm, height <= 114.55mm; Three M.2 slots (one for WLAN, two for SSD)
Width 170 Mm
Depth 298 Mm
Height 376 Mm
Weight 6.5 Kg
Enclosure Color Black
Service & Support Type 3-year, Onsite
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Max Monitors Supported 4
Power / Voltage Required 100-240V, 50-60Hz
Interfaces & Connections Integrated 100/1000M; Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); Rear Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)

Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i5
Processor / Manufacturer Intel
Multi-Core Technology 14-Core
Max Turbo Frequency 5 GHz
Processor / Number 14500
Cache Memory Type Smart Cache
Cache Memory Installed Size 24 MB

Expansion
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), full-height, length<= 205mm, height <=114.55mm; One PCIe 4.0 x16, full-height, length <= 268.5mm, height <=114.55mm; One PCIe 3.0 x1, full-height, length <= 205mm, height <= 114.55mm; Three M.2 slots (one for WLAN, two for SSD)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Interfaces & Connections Integrated 100/1000M; Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); Rear Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)

Networking
Data Link Protocol Wi-Fi, Bluetooth; Gigabit Ethernet

Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
COO MEXICO
TAA compliance Yes

Dimensions&Miscellaneous
Enclosure Color Black
Width 170 Mm
Depth 298 Mm
Height 376 Mm
Weight 6.5 Kg

Memory
Cache Memory Type Smart Cache
RAM / Total Slots Qty 4
RAM / Technology DDR5
RAM / Total Installed Size 16 GB
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB

Storage
Hard Drive / Type SSD
Hard Drive / Interface Type PCIe NVMe
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type Slim DVD RAMBO

I/O
Input Device Support Type Keyboard, Mouse
Keyboard USB Traditional Keyboard, Black
Mouse USB Calliope Mouse, Black
Keyboard Language English

Power
Power / Device Type Power Supply
Power / Provided (W) 300 Watt
Efficiency 90%
Power / Voltage Required 100-240V, 50-60Hz

Video
Graphics Controller Intel UHD Graphics 770

UNSPSC Code
UNSPSC Code 43211508
