| Processor | Intel,Intel Core i5,Core i5 1.5,1.5GHz Smart Cache,Smart Cache 1145G7E,1145G7E Cache Memory 8,8MB Max Turbo 4.1,4.1GHz |
| RAM | DDR4,DDR4 Total Installed 16,16GB 3200,3200MHz Max Supported 16,16GB |
Lenovo ThinkEdge SE30 i5-1145G7E 16GB 256GB SSD W10 IoT USFF
Photo is for illustration purposes only. Actual product may be different.
Regular price
$2,360.00
Regular price
Sale price
$2,360.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Intel Core i5-1145G7E vPro quad-core processor with 4.1GHz max turbo
- 16GB DDR4 3200MHz RAM for efficient multitasking
- 256GB PCIe Gen4 NVMe SSD for high-speed storage access
- Ultra Small Form Factor (7.05" x 3.46" x 2.03") weighing only 2.25 lbs.
- Intel Wi-Fi 6 AX201 and Bluetooth 5.1 connectivity
- Discrete TPM 2.0 security module, TCG certified
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Designed for edge computing and industrial IoT scenarios with ultra-compact reliability
- Fast PCIe Gen4 SSD and 16GB memory ensure excellent performance for real-time applications
- Robust connectivity with Thunderbolt 4, Wi-Fi 6, and TPM 2.0 for secure, future-ready deployment
Product Overview
The Lenovo ThinkEdge SE30 is a purpose-built ultra-compact desktop engineered for demanding edge computing environments. At its heart is an Intel Core i5-1145G7E vPro quad-core processor with a 1.5GHz base clock and boost speeds up to 4.1GHz, offering exceptional computational power for data-heavy workloads. The integrated Intel Iris Xe Graphics ensures smooth video rendering, while 16GB of DDR4 3200MHz memory supports efficient multitasking for enterprise-grade applications.
This system includes a high-speed 256GB PCIe Gen4 NVMe SSD, significantly reducing data access latency. Its rugged Ultra Small Form Factor design (7.05" x 3.46" x 2.03" at 2.25 lbs.) allows extreme deployment flexibility, even in space-limited locations. Equipped with cutting-edge connectivity including Wi-Fi 6 (Intel AX201), Bluetooth 5.1, Thunderbolt 4, and USB-C 3.2 Gen 2, the SE30 seamlessly integrates into modern digital infrastructures. Security is handled with discrete TPM 2.0 (TCG certified), and the unit ships with Windows 10 IoT Enterprise 64-bit pre-installed for streamlined integration into enterprise environments.
Backed by a 1-year onsite warranty, the ThinkEdge SE30 suits industrial control, remote monitoring, and smart retail endpoints, delivering long-term value through its reliability, compact design, and performance-driven hardware features.
Specifications
General
Memory
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 1 |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM / Max Supported Size | 16 GB |
Processor
| Processor / Generation | Intel 11th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.5 GHz |
| Max Turbo Frequency | 4.1 GHz |
| Processor / Number | 1145G7E |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 8 MB |
Expansion
| Interfaces & Connections | 1x USB-C 3.2 Gen 2 (support data transfer and display) 2x USB 3.2 Gen 2 1x headphone / microphone combo jack (3.5mm) 2x serial (RS232 / RS422 / RS485, BIOS selectable) 1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 5V@3A and display) 1x USB 3.2 Gen 2 1x DisplayPort 1.4a (for i5 models) 1x power connector 2x Ethernet (RJ-45) |

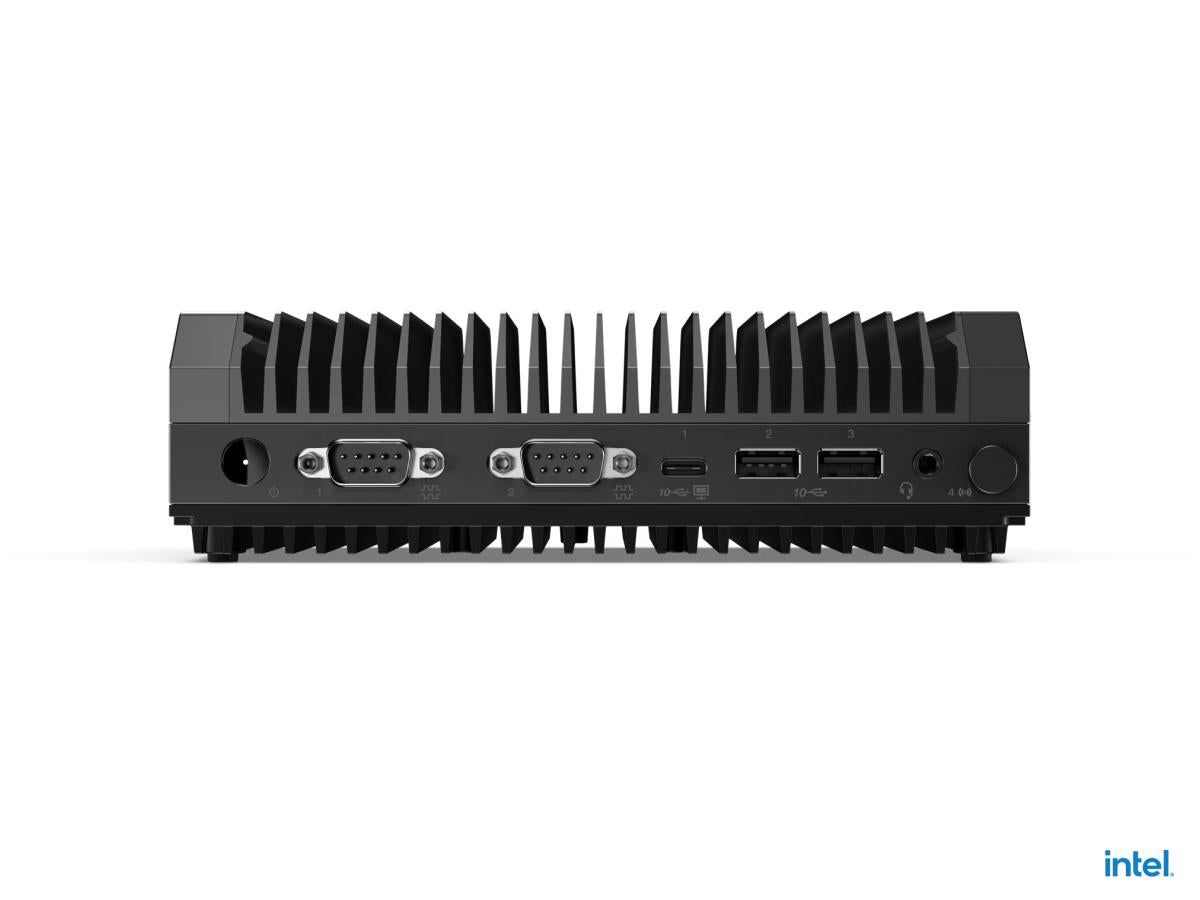

| Front I/O Ports | 1x USB-C 3.2 Gen 2 (support data transfer and display) 2x USB 3.2 Gen 2 1x headphone / microphone combo jack (3.5mm) 2x serial (RS232 / RS422 / RS485, BIOS selectable) |

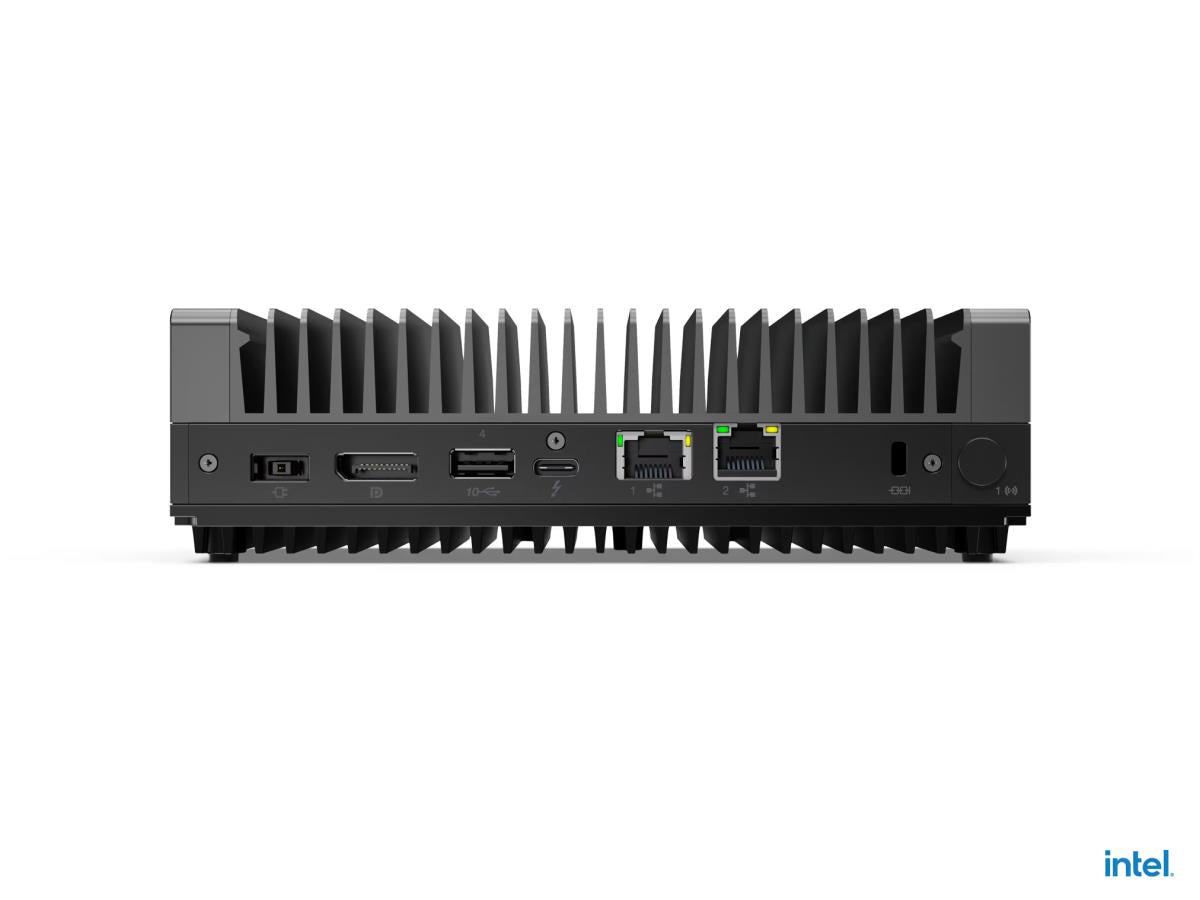

| Rear I/O Ports | 1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 5V@3A and display) 1x USB 3.2 Gen 2 1x DisplayPort 1.4a (for i5 models) 1x power connector 2x Ethernet (RJ-45) |
Networking
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.1 |
| Network Controller | Intel Wi-Fi 6 AX201 |
Video
| Graphics Controller | Intel Iris Xe |
| Video Output Interface | Display Port |
UNSPSC Code
| UNSPSC Code | 43211508 |
Primary Information
| System Type | Personal Computer |
| Model | ThinkEdge SE30 |
| Cabinet Form Factor | Ultra Small Form Factor |
| Processor / Generation | Intel 11th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.5 GHz |
| Cache Memory Installed Size | 8 MB |
| Max Turbo Frequency | 4.1 GHz |
| Processor / Number | 1145G7E |
| Processor / Installed Qty | 1 |
| Cache Memory Installed Size | 8 MB |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel SoC Platform |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 1 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM / Max Supported Size | 16 GB |
| Storage Controller Type | M.2; PCIe 4.0x4 NVMe |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| SSD / Installed Qty | 1 |
| Storage Controller Type | M.2; PCIe 4.0x4 NVMe |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.1 |
| Network Controller | Intel Wi-Fi 6 AX201 |
| Graphics Controller | Intel Iris Xe |
| Video Output Interface | Display Port |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 10 IoT Enterprise 64-bit |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240V |
| Efficiency | 88% |
| Interfaces & Connections | 1x USB-C 3.2 Gen 2 (support data transfer and display) 2x USB 3.2 Gen 2 1x headphone / microphone combo jack (3.5mm) 2x serial (RS232 / RS422 / RS485, BIOS selectable) 1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 5V@3A and display) 1x USB 3.2 Gen 2 1x DisplayPort 1.4a (for i5 models) 1x power connector 2x Ethernet (RJ-45) |
| Front I/O Ports | 1x USB-C 3.2 Gen 2 (support data transfer and display) 2x USB 3.2 Gen 2 1x headphone / microphone combo jack (3.5mm) 2x serial (RS232 / RS422 / RS485, BIOS selectable) |
| Rear I/O Ports | 1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 5V@3A and display) 1x USB 3.2 Gen 2 1x DisplayPort 1.4a (for i5 models) 1x power connector 2x Ethernet (RJ-45) |
| Width | 7.05 Inch |
| Depth | 3.46 Inch |
| Height | 2.03 Inch |
| Weight | 2.25 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 1-year, Onsite Warranty |
| Security Devices | Discrete TPM 2.0, TCG certified |
Special Feature
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified |
| COO | MEXICO |
| TAA compliance | Yes |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| SSD / Installed Qty | 1 |
| Storage Controller Type | M.2; PCIe 4.0x4 NVMe |
| Hard Drive / Capacity (2nd) | None GB |
I/O
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
Power
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240V |
| Efficiency | 88% |
Dimensions&Miscellaneous
| Enclosure Color | Black |
| Width | 7.05 Inch |
| Depth | 3.46 Inch |
| Height | 2.03 Inch |
| Weight | 2.25 lbs. |
