| Product Type | Solid State Drive (SSD) |
| Model | ThinkSystem 5300 |
| Form Factor | 2.5-inch |
| Capacity | 960 GB |
| Flash Memory Type | 3D TLC NAND |
| Interface | SATA 6 Gb/s |
| Mean Time Between Failures (MTBF) | 3,000,000 hours |
| Intended Use Case | Enterprise, Data Center |
| Operating Voltage | 5V DC |
| Power Consumption (Active) | 4.5 W (typical) |
| Power Consumption (Idle) | 1.1 W (typical) |

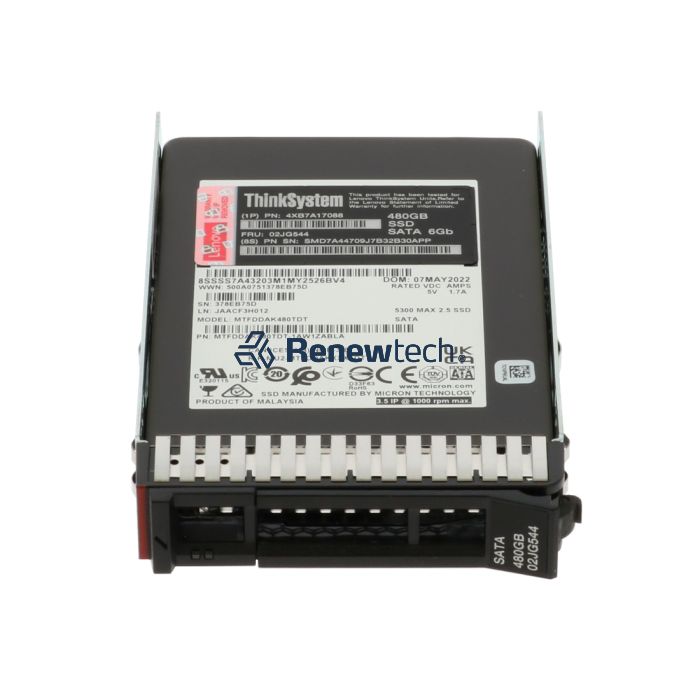

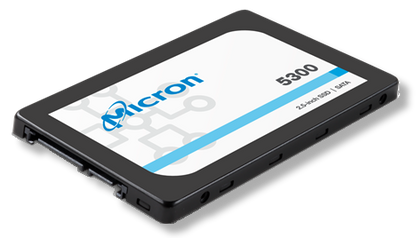

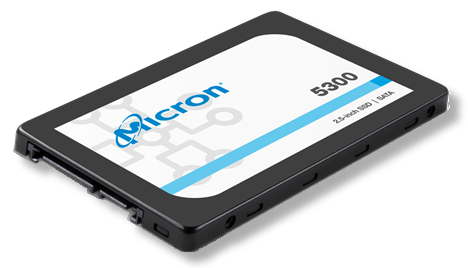

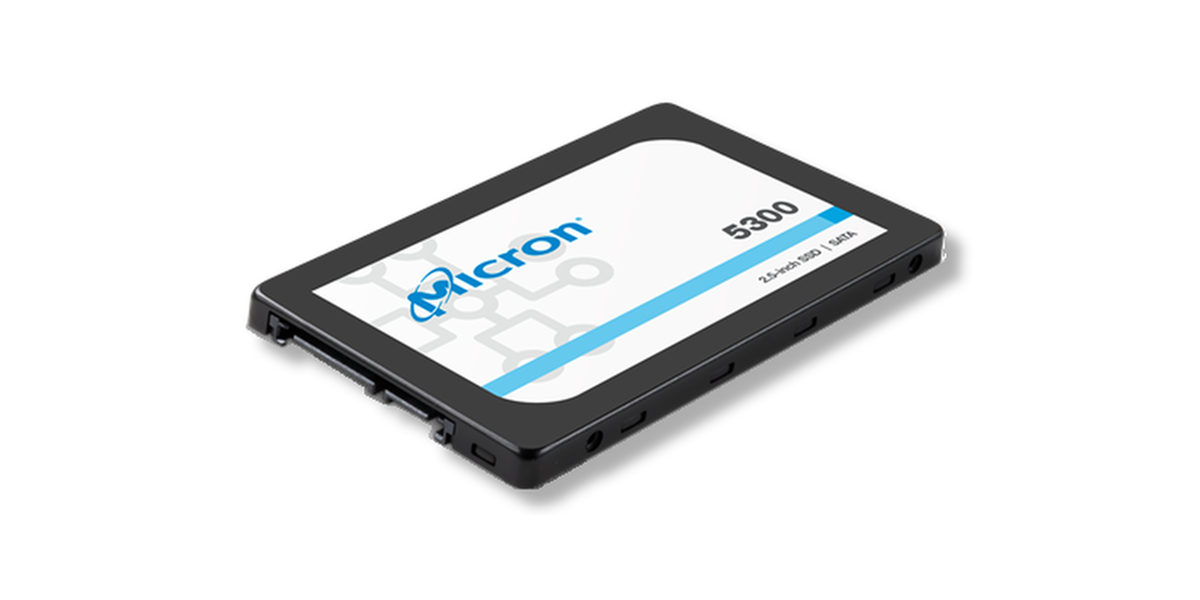

Lenovo ThinkSystem 5300 960GB 2.5" SATA SSD
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,217.00
Regular price
Sale price
$1,217.00
Unit price
per
MSRP: $1,227.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 2.5" SATA 6 Gb/s form factor for easy server integration
- 960 GB capacity with 3D TLC NAND flash memory
- Up to 540 MB/s read and 520 MB/s write speeds
- Supports up to 95,000 random read and 75,000 random write IOPS
- MTBF rated at 3,000,000 hours for high reliability
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Offers enterprise-level storage performance with fast IOPS and sequential data throughput.
- Backed by an MTBF of 3 million hours, ensuring long-term operational stability.
- Ideal for data center and virtualized environments requiring high availability and consistent speed.
Product Overview
The Lenovo ThinkSystem 5300 960GB SSD is engineered for enterprise-grade performance and long-term reliability. Its 2.5-inch SATA 6 Gb/s interface and 3D TLC NAND architecture enable sequential read/write speeds of up to 540/520 MB/s, respectively. With random performance up to 95,000/75,000 IOPS and a high MTBF rating of 3 million hours, this SSD is ideal for data center workloads and high-availability systems. The 960GB capacity strikes a balance between storage volume and response efficiency for demanding IT scenarios.
Specifications
Product Overview
Physical & Environmental
| Dimensions (W x D x H) | 69.85 mm x 100.2 mm x 7 mm |
| Weight | 70 g |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -55°C to 85°C |
| Shock Resistance (operating) | 1,500 G at 0.5 ms |
| Vibration (Operating) | 2.17 GRMS, 5-800 Hz |
| Vibration (Non-operating) | 3.13 GRMS, 5-800 Hz |
| Humidity (Operating) | 5% to 95% (non-condensing) |
| Humidity (Non-operating) | 5% to 95% (non-condensing) |
Advanced Security Features
| Encryption Support | AES 256-bit encryption |
| Data Protection | End-to-end data path protection |
| Power Loss Protection | Yes (firmware-based) |
| Secure Erase | Yes |
Interfaces
| Interface Type | SATA III (6 Gb/s) |
| Data Transfer Rate (Read) | 540 MB/s |
| Data Transfer Rate (Write) | 520 MB/s |
| Random Read IOPS (4KB) | 95,000 IOPS |
| Random Write IOPS (4KB) | 75,000 IOPS |
| Port Connector | 7-pin SATA data + 15-pin SATA power |
Compliance & Origin
| Country of Origin | |
| TAA Compliant | |
| RoHS Compliant | Yes |
| Certifications | CE, UL, FCC, VCCI, KC, BSMI, TUV |
Cloud Management & Licensing
| Remote Monitoring Support | Supports Lenovo XClarity |
| Management Software | Lenovo XClarity Administrator |
