Lenovo ThinkSystem NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter

VENDOR: LENOVO Mfg Part#: 7ZT7A00497 UPC#: 889488433629
1 4

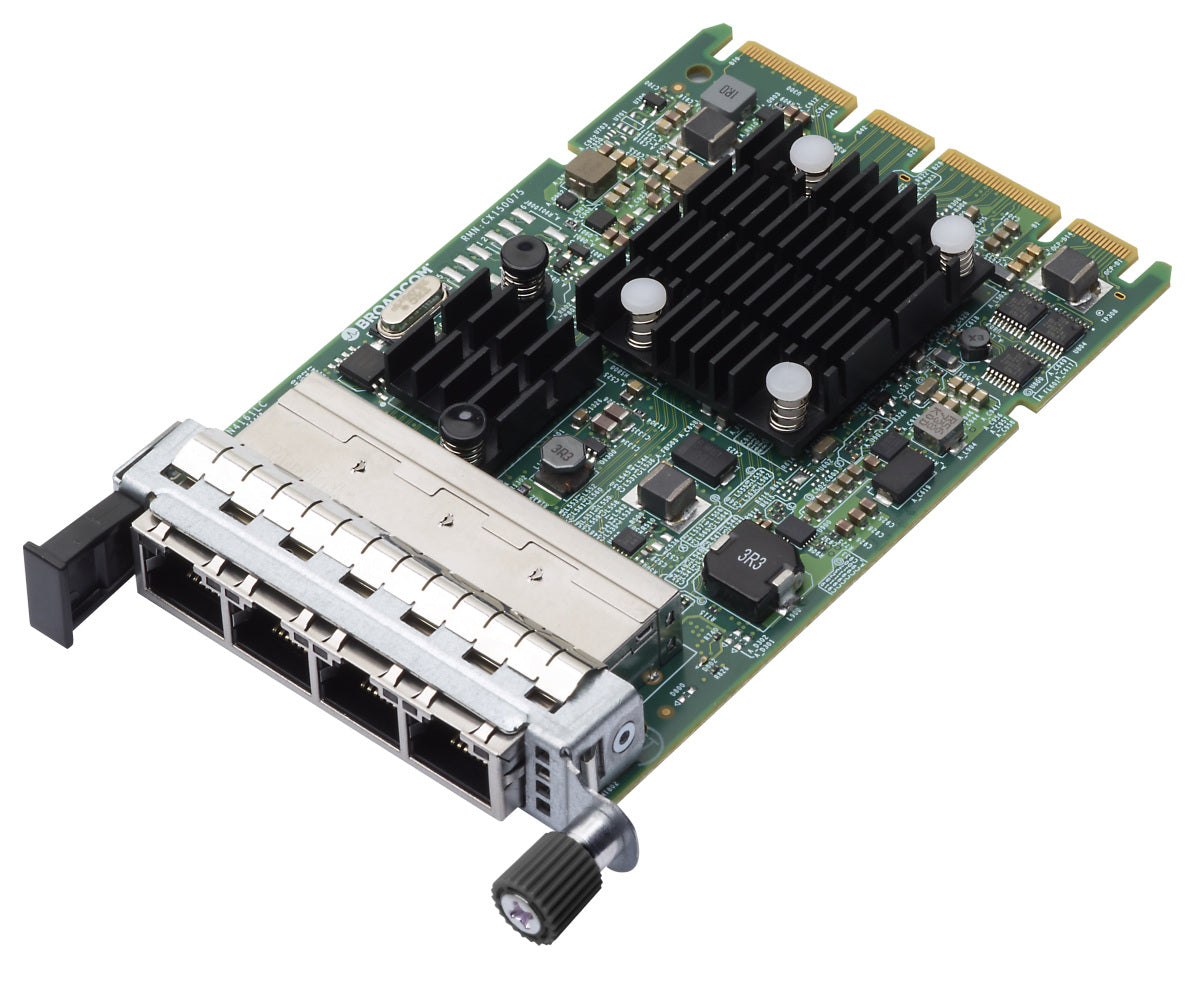

Photo is for illustration purposes only. Actual product may be different.
$741.00
$741.00
Sale Sold out
MSRP: $744.00
Shipping calculated at checkout.
  • 10 Gbps data transfer rate for high-speed networking
  • Dual-port Base-T Ethernet connectivity
  • Built on ML2 form factor for Lenovo ThinkSystem integration
  • Supports 10 Gigabit Ethernet protocol
  • TAA compliant for government and regulated use
  • Manufactured in Mexico for quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade 10GbE connectivity with dual ports for increased throughput and redundancy.
  • Compatible with ThinkSystem servers using the ML2 form factor, ensuring seamless integration and system efficiency.
  • TAA compliance and manufacturing in Mexico meet procurement standards for government and regulated industries.

Product Overview

The Lenovo ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter is a robust networking solution designed specifically for demanding enterprise environments. With support for 10 Gigabit Ethernet over standard copper cabling, this adapter delivers enhanced bandwidth and low-latency performance essential for today’s virtualized workloads and cloud-ready infrastructures. Built on ML2 architecture, it provides compatibility with select Lenovo ThinkSystem servers for simplified integration and optimized resource utilization.

Equipped with two Ethernet ports, this adapter ensures network redundancy and high availability—crucial for mission-critical applications. Supporting data rates up to 10 Gbps, it enables rapid data transfers and improved system responsiveness. With TAA compliance and manufacturing origin in Mexico, it is suitable for regulated environments demanding standards-based hardware. Although energy certifications are not listed, the device delivers high-speed connectivity and dependability, making it ideal for scalable business networks.

Specifications

Product Overview
Product Type Network Adapter
Form Factor ML2 (Mezzanine LAN-on-Motherboard Generation 2)
Weight 0.09 kg
Power Requirements 3.5 W typical

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
WEEE Compliant Yes
FCC Certification Yes
UL Certification Yes
VCCI Certified Yes
CE Mark Yes
RCM Certified Yes

Advanced Security Features
Secure Boot Support Yes
PXE Boot Support Yes (Preboot eXecution Environment)
SR-IOV Support Yes (Single Root I/O Virtualization)
Checksum Offload Yes
TCP Segmentation Offload (TSO) Yes
Receive Side Scaling (RSS) Yes
MACSec Support No

Interfaces
Number of Ports 2
Port Type 10GBASE-T (RJ-45)
Interface Type ML2 (LAN-on-Motherboard Generation 2)
Data Transfer Rate 10 Gbps
Data Link Protocol 10 Gigabit Ethernet
Compatible Cabling Cat6A or higher
Bus Type PCI Express 3.0 x8 (via ML2 interface)
Supported IEEE Standards IEEE 802.3an, IEEE 802.3bz, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az
Virtual LAN Support Yes (802.1Q VLAN tagging)
Jumbo Frame Support Yes (up to 9,000 bytes)

Physical & Environmental
Dimensions (WxDxH) 69 mm x 160 mm x 17 mm
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 80% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Cooling Passive
MTBF Over 1,000,000 hours

Cloud Management & Licensing
Remote Management Capability Supported via Lenovo XClarity Controller on host system
Licensing Required No
Bundled Software Broadcom Advanced Network Control Suite
