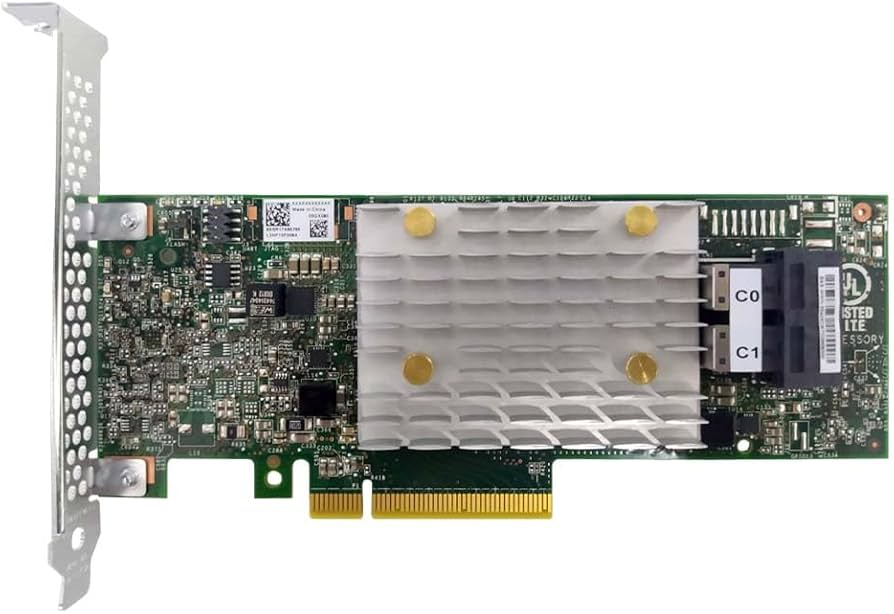

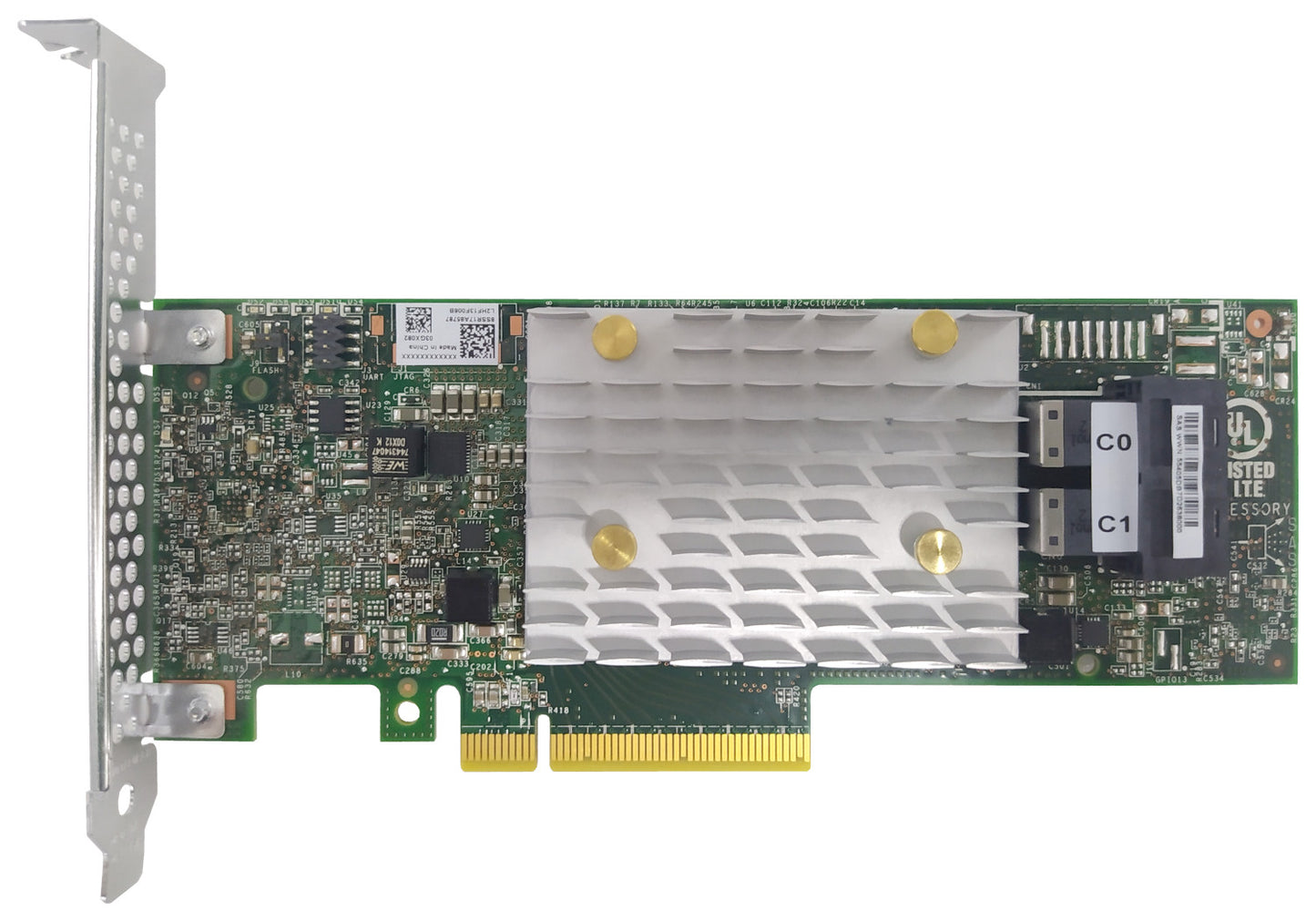

Lenovo ThinkSystem RAID 5350-8i PCIe 12Gb Internal Adapter

VENDOR: LENOVO Mfg Part#: 4Y37A84028 UPC#: 889488658541
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,661.00
$1,661.00
Sale Sold out
Shipping calculated at checkout.
  • Interface: SATA 6Gb/s / SAS 12Gb/s via PCIe 3.0 x8
  • RAID support: RAID 0, 1, 5, 10, and JBOD for flexible storage configurations
  • Channels: 8 internal ports via 4x Mini SAS HD (SFF-8643)
  • Processor: Adaptec SmartIOC 2100 PM8222 for reliable data acceleration
  • Device type: Low-profile plug-in card ideal for server integration
  • OS Compatibility: Windows Server, RHEL, Ubuntu, SUSE, VMware ESXi

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers 12 Gbit/s data transfer with SAS 12Gb/s compatibility for high-speed storage infrastructures.
  • Compatible with a wide range of enterprise OS platforms and Lenovo ThinkSystem servers for broad deployment.
  • Supports multiple RAID levels and JBOD, offering both data redundancy and performance optimization flexibility.

Product Overview

The Lenovo ThinkSystem RAID 5350-8i PCIe 12Gb Internal Adapter is a high-performance storage controller supporting SATA 6Gb/s and SAS 12Gb/s with a PCIe 3.0 x8 interface. Powered by the Adaptec SmartIOC 2100, it ensures reliable data throughput and features S.M.A.R.T. support. It’s compatible with a wide range of Lenovo ThinkSystem servers and offers flexible RAID configurations including RAID 0, 1, 5, 10, and JBOD. With 8 channels via 4x internal Mini SAS HD ports, it excels in scalability. Certified to multiple compliance standards and backed by a 1-year warranty, the RAID 5350-8i is built for enterprise environments demanding speed, flexibility, and system resilience.

Specifications

Product Overview
Product Type Storage Controller Adapter
Form Factor Plug-in card - low profile
Processor Adaptec SmartIOC 2100 PM8222
Power Requirements Standard PCIe slot power (~15W typical)
Manufacturer Part Number 4Y37A84028
UPC 889488658541
Manufacturer Lenovo
Warranty 1-year limited warranty

RAID Capabilities
RAID Levels Supported RAID 0, RAID 1, RAID 5, RAID 10, JBOD
RAID Controller Features S.M.A.R.T. monitoring, Flexible RAID configuration

Compliance & Origin
Certifications FCC Part 15A/B, ICES-003 Class B, EN55024, EN 55032, VCCI, KCC, AS/NZS 3548, RoHS, IEC/EN/UL 60950
Country of Origin
TAA Compliant

Advanced Security Features
S.M.A.R.T. Support Yes

Interfaces
Interface Bus Type PCIe 3.0 x8
Drive Interface SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Port Interfaces 4 x internal Mini SAS HD (SFF-8643)
Channel Quantity 8
Supported Devices SATA, SAS HDDs and SSDs

Physical & Environmental
Width 6.6 in
Height 2.5 in
Minimum Operating Temperature 32 °F (0 °C)
Maximum Operating Temperature 131 °F (55 °C)
Operating Humidity Range 20% - 80% (non-condensing)

System Compatibility
Operating System Support Windows Server 2019/2022, Windows 11, Red Hat Enterprise Linux 8.6/8.7/9.0/9.1, SUSE Linux Enterprise Server 12 SP5, 15 SP3/SP4, Ubuntu 18.04.5/20.04/22.04 LTS, VMware vSphere Hypervisor (ESXi) 7.0 U3/8.0
Compatible Systems Lenovo ThinkSystem SR630 V2/V3, SR635, SR645 V3, SR650 V2/V3, SR655 V3, SR665, SR675 V3, ST650 V2/V3

Cloud Management & Licensing
Cloud Management
License Requirements No license required for standard RAID functions
