| Type | Internal Solid State Drive (SSD) |
| Model | ThinkSystem S4520 |
| Form Factor | 2.5-inch |
| Capacity | 480 GB |
| Interface | SATA 6 Gb/s |
| Power Requirement | 5V ±10% |
| Typical Power Consumption (Read) | 1.4 W |
| Typical Power Consumption (Write) | 2.9 W |
| Idle Power Consumption | 0.6 W |
| Drive Endurance | 0.8 DWPD (Drive Writes Per Day) |

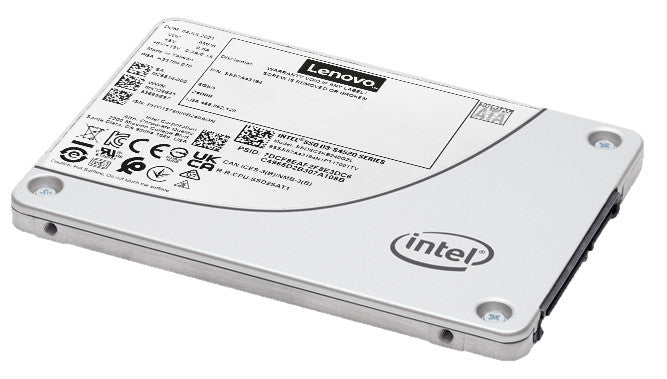

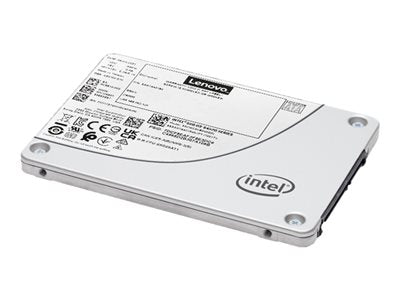

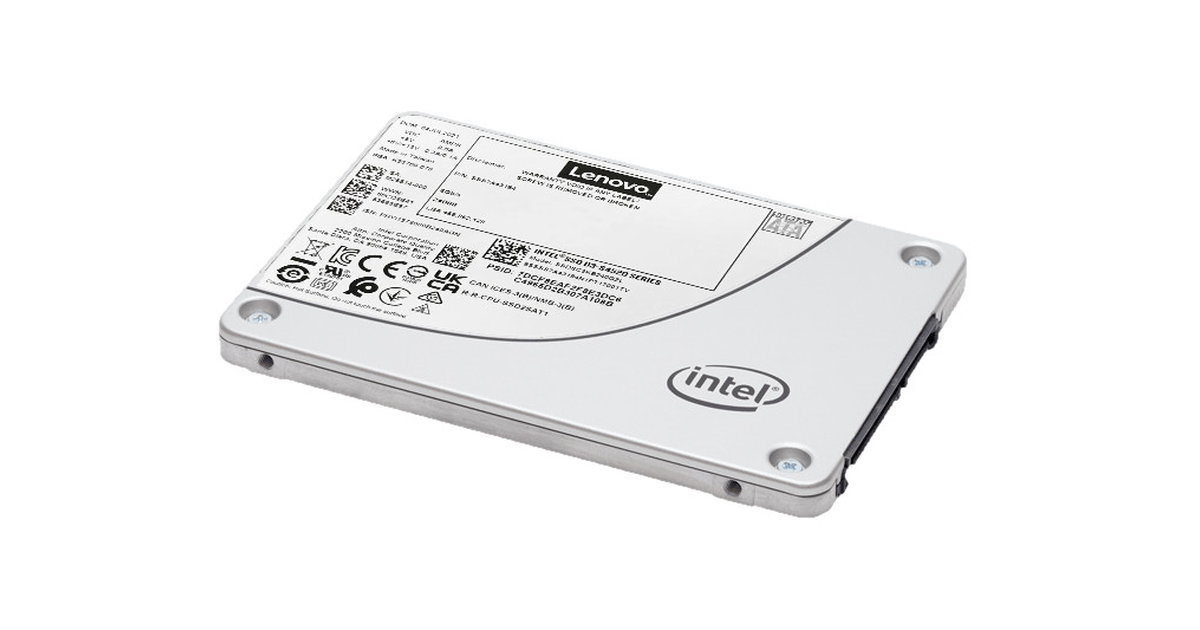

Lenovo ThinkSystem S4520 480GB 2.5" SATA SSD
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,282.00
Regular price
Sale price
$1,282.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 480 GB capacity with 2.5-inch SATA 6 Gb/s interface
- Up to 550 MBps sequential read and 460 MBps write speeds
- 4KB Random Read up to 79,000 IOPS and Write up to 30,000 IOPS
- 2,000,000 hours Mean Time Between Failures (MTBF)
- S.M.A.R.T. monitoring supported for proactive maintenance
- Designed for use in ThinkSystem platforms like the ST50 V2
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Offers high data reliability with a 2 million-hour MTBF rating, reducing the risk of unexpected failures
- Robust performance metrics with fast read/write speeds and strong IOPS support suitable for demanding workloads
- Optimized for Lenovo ThinkSystem ST50 V2, ensuring compatibility and simplified integration
Product Overview
The Lenovo ThinkSystem S4520 480GB SSD delivers enterprise-class performance with a 2.5-inch SATA 6 Gb/s interface, making it ideal for use with ThinkSystem ST50 V2 systems. It offers read speeds up to 550 MBps and write speeds of 460 MBps, with strong random IOPS capabilities (up to 79,000 reads and 30,000 writes). Designed for reliability, this SSD boasts a 2 million hour MTBF and includes S.M.A.R.T. monitoring support. It is a solid choice for enterprise storage applications requiring consistent throughput and longevity.
Specifications
Product Overview
Physical & Environmental
| Dimensions (H x W x D) | 7.0 mm x 69.85 mm x 100 mm |
| Weight | Approximately 55 g |
| Operating Temperature | 0°C to 70°C |
| Non-operating Temperature | -55°C to 95°C |
| Operating Humidity | 5% - 95% (non-condensing) |
| Shock Resistance (operating) | 1,000 G @ 0.5 ms (half sine) |
| Vibration (operating) | 2.17 GRMS (5-700 Hz) |
| Vibration (non-operating) | 3.13 GRMS (5-800 Hz) |
| MTBF | 2,000,000 hours |
Advanced Security Features
| Data Protection | End-to-end data path protection |
| Power Loss Protection | Yes |
| AES 256-bit Encryption | Yes |
Interfaces
| Interface Type | SATA III (6 Gb/s) |
| Connector Type | SATA 7-pin |
| Data Transfer Rate | 6 Gbps |
| Max Sequential Read Speed | 550 MB/s |
| Max Sequential Write Speed | 460 MB/s |
| Max 4KB Random Read IOPS | 79,000 |
| Max 4KB Random Write IOPS | 30,000 |
Compliance & Origin
| SMART Support | Yes |
| TAA Compliant | Inquire |
| Country of Origin | Inquire |
| RoHS Compliance | Yes |
| Halogen Free | Yes |
| Certifications | CE, UL, FCC, KCC, VCCI, BSMI |
Cloud Management & Licensing
| Management Integration | Compatible with Lenovo XClarity |
