Lenovo ThinkSystem ST50 V2 5300 480GB 2.5" SATA SSD

VENDOR: LENOVO Mfg Part#: 4XB7A77457
1 5

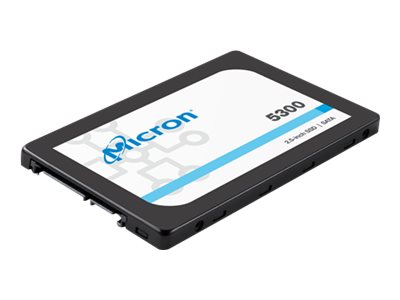

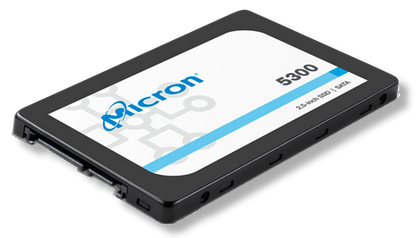

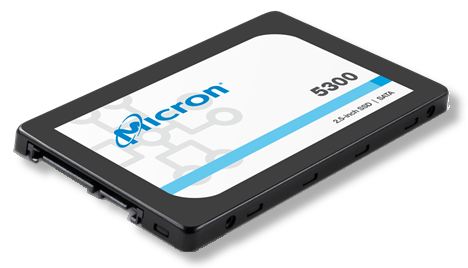

Photo is for illustration purposes only. Actual product may be different.
$592.00
$592.00
Sale Sold out
MSRP: $599.00
Shipping calculated at checkout.
  • 2.5" form factor for compact server bays
  • 480GB SSD capacity for efficient enterprise storage
  • SATA 6 Gb/s interface enables high-speed data transfer
  • 6 Gbps data transfer rate ensures responsive performance
  • Optimized for Lenovo ThinkSystem ST50 V2 platform

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized compatibility and performance within Lenovo ThinkSystem ST50 V2 hardware
  • High-speed 6 Gbps transfer rate minimizes latency in business-critical applications
  • Compact 2.5" architecture saves space in server environments while maintaining storage efficiency

Product Overview

The Lenovo ThinkSystem ST50 V2 5300 480GB SSD is a high-performance solid-state drive built for SMB servers and enterprise storage systems. It uses a 2.5-inch form factor with a SATA 6Gb/s interface and delivers a data transfer rate of 6 Gbps. Optimized for Lenovo's ST50 V2 platform, its 480GB capacity offers ample space for applications and files while enabling faster system responsiveness. Ideal for scenarios requiring reliable, high-speed data access, this drive helps maximize efficiency in business-critical environments.

Specifications

Product Overview
Product Type Solid State Drive (SSD)
Model ThinkSystem ST50 V2
Form Factor 2.5-inch
Capacity 480 GB
Interface SATA 6 Gb/s
Product Series Lenovo ThinkSystem 5300 Series SSD
Intended Use Enterprise / SMB Servers
Drive Type Read Intensive SSD
Hot-Swap Support Yes
NAND Type 3D NAND TLC
Power Consumption (Active) 3.7 W (typical)
Power Consumption (Idle) 1.1 W (typical)
MTBF 2,000,000 hours

Physical & Environmental
Drive Dimensions 100.45 x 69.85 x 7 mm
Operating Temperature 0°C to 70°C
Non-Operating Temperature -55°C to 85°C
Relative Humidity (Operating) 5% to 95% (non-condensing)
Shock Resistance 1500G @ 0.5 ms
Vibration (Operating) 2.17 GRMS (5-700Hz)
Vibration (Non-operating) 3.13 GRMS (5-800Hz)
Weight Approximately 70 g

Cloud Management & Licensing
Software Management Tools Lenovo XClarity (for compatible systems)
Firmware Update Support Yes, via Lenovo management tools

Interfaces
Interface Type SATA III (6 Gb/s)
Port Connector SATA 7-pin
Data Transfer Rate Up to 6 Gbps
Sequential Read Speed 540 MB/s
Sequential Write Speed 465 MB/s
Random Read IOPS 95,000 IOPS
Random Write IOPS 22,000 IOPS

Compliance & Origin
Certifications RoHS, CE, FCC, UL
TAA Compliant Inquire
Country of Origin Inquire

Advanced Security Features
End-to-End Data Protection Yes
Data Path Protection Yes
Secure Erase Yes, ATA Secure Erase
