| Product Type | Direct View LED Commercial Display |
| Series | MAGNIT LSAB Series |
| Model | LSAB-G196GV |
| Display Diagonal Size | 196.3 Inch |
| Display Technology | Chip-on-Board (COB) LED |
| Pixel Pitch | 1.25 mm |
| Native Resolution | 3840 x 1080 |
| Aspect Ratio | 32:9 |
| Brightness | 800 nits |
| Contrast Ratio | ≥ 100,000:1 |
| Viewing Angle (Horizontal/Vertical) | 160° / 160° |
| Refresh Rate | 3840 Hz |
| Mounting Type | Wall Mount (basic mount included) |
| Bezel Type | Bezel-less |
| Wall Mount Included | Yes |
| Trim Kit Included | No |
| Power Requirements | 100-240V AC, 50/60Hz |
| Power Consumption (Max) | Approx. 2,650 W (8x4 configuration) |
| Power Consumption (Typ.) | Approx. 1,060 W (8x4 configuration) |

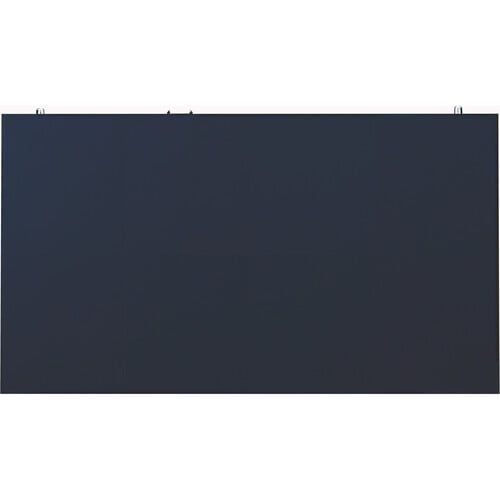

LG LSAB-G196GV 196.3" MAGNIT 2K COB LED Display, TAA Compliant
Photo is for illustration purposes only. Actual product may be different.
Regular price
$344,102.00
Regular price
Sale price
$344,102.00
Unit price
per
MSRP: $451,800.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 196.3-inch diagonal COB LED display with 2K resolution (3840x1080)
- Ultra-wide 32:9 aspect ratio for panoramic viewing
- Pixel pitch of 1.25 mm for high visual fidelity
- Brightness level of 800 nits, suitable for bright environments
- TAA-compliant; manufactured in Korea for government-ready deployment
- Comprehensive 3-year service plan with TotalCare, ConnectedCare, and FESS
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for command centers, control rooms, and enterprise signage with ultra-wide panoramic format
- Backed by a robust 3-year support package including TotalCare and ConnectedCare licenses
- Meets TAA compliance and is built in Korea, suited for regulated sector installations
Product Overview
TAA Series, 196.3Inch Dia., 189 x 53.1 x 1.8, TAA Compliant LSAB Series, MAGNIT Family, 2K (3840x1080), Ultimate Business Display, COB, P1.25, 800 nits, 8x4 Array; Basic Wall Mount Included , Trim Kit Not Included; also includes the following services: Standard 3 Yrs Limited Warranty Coverage 3Yrs TotalCare, 3Yrs ConnectedCare License, and Up to 3 consecutive FESS day(s)Specifications
Product Overview
Wireless Features
| Wi-Fi Enabled | No |
Compliance & Origin
| Country of Origin | South Korea |
| TAA Compliance | Yes |
| RoHS Compliance | Yes |
| Certifications | FCC Class A, CE, UL |
Advanced Security Features
| Secure Access Management | Admin-Controlled Access via LG Management Software |
| Firmware Integrity Protection | Yes |
Interfaces
| Input Interfaces | HDMI, DisplayPort, USB, RS232, RJ45 |
| Output Interfaces | DP Loop Out, Daisy Chain via CAT6/6a |
| Control Interface | RS232C, RJ45, USB |
| LAN Port | 1 x RJ45 |
Physical & Environmental
| Dimensions (W x H x D) | 189 in x 53.1 in x 1.8 in |
| Weight (8x4 configuration) | Approx. 507.1 lbs / 230 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10% to 80% (non-condensing) |
| Cooling Method | Fanless / Natural Convection |
Cloud Management & Licensing
| Remote Management | LG ConnectedCare |
| License Included | 3 Years ConnectedCare License |
| Warranty | 3-Year Limited Warranty |
| Service & Support | Includes 3 Years TotalCare & up to 3 consecutive FESS days |
