Products Display Screens & Monitors LG LSAB-U217GV MAGNIT 216.8...

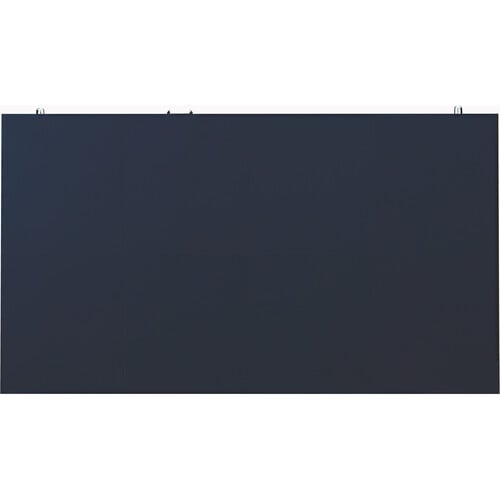

LG LSAB-U217GV MAGNIT 216.8" 4K COB LED Display, TAA Compliant

VENDOR: LG Mfg Part#: LSAB-U217GV UPC#: 195174092767
1 4
Photo is for illustration purposes only. Actual product may be different.
$665,074.00
$665,074.00
Sale Sold out
MSRP: $843,089.00
Shipping calculated at checkout.
  • - 216.8-inch diagonal LED display with 4K Ultra HD resolution (3840 x 2160)
  • - COB (Chip-on-Board) LED technology with 1.25 mm pixel pitch for fine image clarity
  • - High brightness rating of 800 nits enhances visibility in bright environments
  • - 16:9 native aspect ratio supports modern widescreen content
  • - TAA compliant for U.S. government and enterprise deployments
  • - Includes 3-year warranty, 3-year TotalCare, ConnectedCare license, and FESS day service

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - TAA compliance ensures suitability for government and secure enterprise use
  • - COB LED and 1.25 mm pixel pitch deliver superior image fidelity for detail-critical applications
  • - Robust support package (TotalCare, ConnectedCare, 3-yr warranty, FESS) provides long-term reliability and reduced downtime

Product Overview

TAA Series, 216.8Inch Dia., 189 x 106.3 x 1.8, TAA Compliant LSAB Series, MAGNIT Family, 4K (3840x2160), Ultimate Business Display, COB, P1.25, 800 nits, 8x8 Array; Basic Wall Mount Included , Trim Kit Not Included; also includes the following services: Standard 3 Yrs Limited Warranty Coverage 3Yrs TotalCare, 3Yrs ConnectedCare License, and Up to 3 consecutive FESS day(s)

Specifications

Product Overview
Product Type Direct View LED Display
Series MAGNIT LSAB Series
Display Diagonal Size 216.8 Inch
Aspect Ratio 16:9
Max Resolution 3840 x 2160 (4K UHD)
Pixel Pitch 1.25 mm
Brightness 800 nits
LED Technology Chip-On-Board (COB)
Mounting Type Wall Mount (Basic Mount Included)
Color Processing True Color with HDR10 Support
Bit Depth 16-bit
Power Supply AC 100–240V, 50/60Hz
Power Consumption (Max) 3,412 W
Power Consumption (Typical) 1,365 W
Power Consumption (Standby) ≤ 0.5 W
Form Factor 8x8 Modular LED Cabinet Array

Wireless Features
Wireless Connectivity

Compliance & Origin
TAA Compliant Yes
Country of Origin Republic of Korea
Certifications FCC Class A, CE, UL, EMC, RoHS
Environment Standards RoHS Compliant

Advanced Security Features
Secure Control Interface Password-protected Web UI / RS232C Control
Access Management Admin-level Control Settings

Interfaces
Input Ports HDMI x1, DisplayPort x1, USB x1 (for service)
Output Ports Loop-through via Ethernet and DisplayPort
Controller Interface LAN (RJ-45), RS232C (In/Out)
Interface Protocol HDCP 2.2, EDID Support

Physical & Environmental
Overall Dimensions (W x H x D) 189 x 106.3 x 1.8 in. (4800 mm x 2700 mm x 45 mm)
Weight 602.4 lbs (273.2 kg) for 64 cabinets (8x8 array)
Cabinet Unit Dimensions 23.6 x 13.3 x 1.8 in. (~600 x 337.5 x 45 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 10%–80% RH, non-condensing
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Storage Humidity 10%–85% RH, non-condensing

Cloud Management & Licensing
Management Software LG ConnectedCare, LG TotalCare
Licensing Included 3 Years LG ConnectedCare License
Warranty Coverage 3 Years Standard Warranty
Additional Services 3 Years TotalCare Coverage, Up to 3 consecutive FESS day(s)
